Details

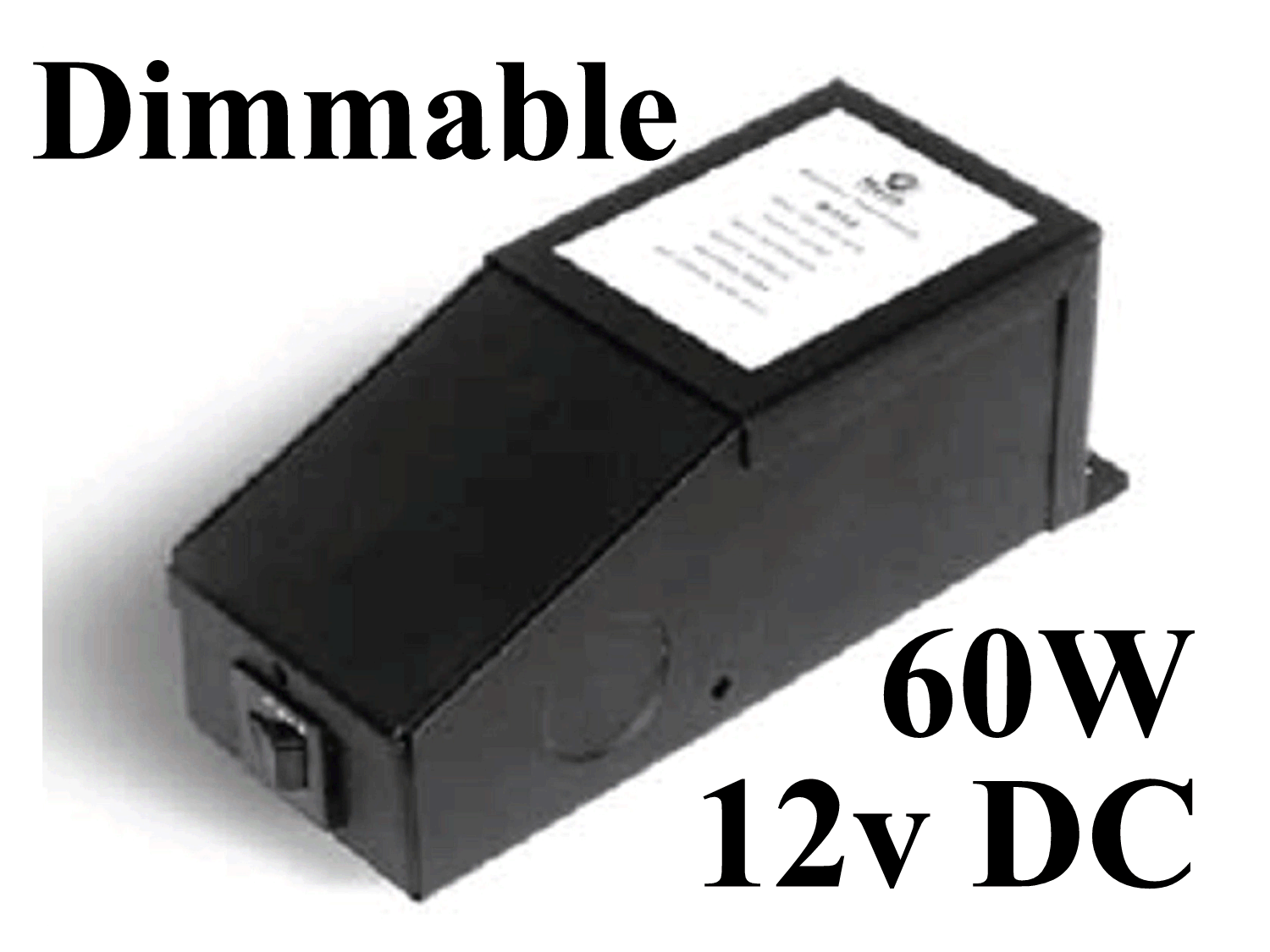

12v Dimmable Power Supply for Single Color Flexible LED Strips
Smooth full range dimming, no special LED PWM dimmer required.
This is a Magnetic Transformer thus is dimmable using standard 120v A/C light Dimmers (the standard ones you use for regular incandescent lights)
These are great for replacing lights where you already have a dimmer switch installed (you just connect the input of this power supply to the output of you dimmer switch and connect the output of this dimmer to your LED strip)
This power supply can power up to 30 feet of our single color flexible LED strip. This is based on the rated power draw of the flexible LED strip- while you should be able to get longer runs based on the actual power draw, we can not guarantee this.
General
• Manual reset thermal circuit breaker on the secondary side.
• Controlled with a low-voltage dimmer.
• ETL listed
• CSA listed
• UL standard 5085-1
• NEMA 3R enclosure
Additional Information
| Suggested Uses | These are great for replacing lights where you already have a dimmer switch installed (you just connect the input of this power supply to the output of you dimmer switch and connect the output of this dimmer to your LED strip) |
|---|---|
| Product Highlights |
Maximum Load: 60 W
Transformer
Enclosure
General |
| Led Color | N/A |
| Mounting Options | Wall Mount |
| Voltage | 120v |
| Wattage | 60 |
| Power Rating Max Amps | 4.8 A |
| Output Power | 5A 60 Watts |
| Connections Input/Output |
Input
Output |
| Power Input: Connection Type, Voltage, Amperage | Hard Wire 120 V 60 Hz |
| Output Connection Type | Hard Wire 11.5-12.5 VDC |
| Can Power/Control (xx) Feet of strip | 30 |
| Product Size (L)x(W)x(H) | (L) 6.06" x (W) 2.59" x (H) 2.20" in |
| Available Options (may not be in stock) | Other Sizes |
| Warranty | 5 years |
