12v 60W 5A Waterproof Power Supply PFC (Mean Well)

Be the first to review this product

Availability: In stock

Only 4 left

$90.00
OR

Quick Overview

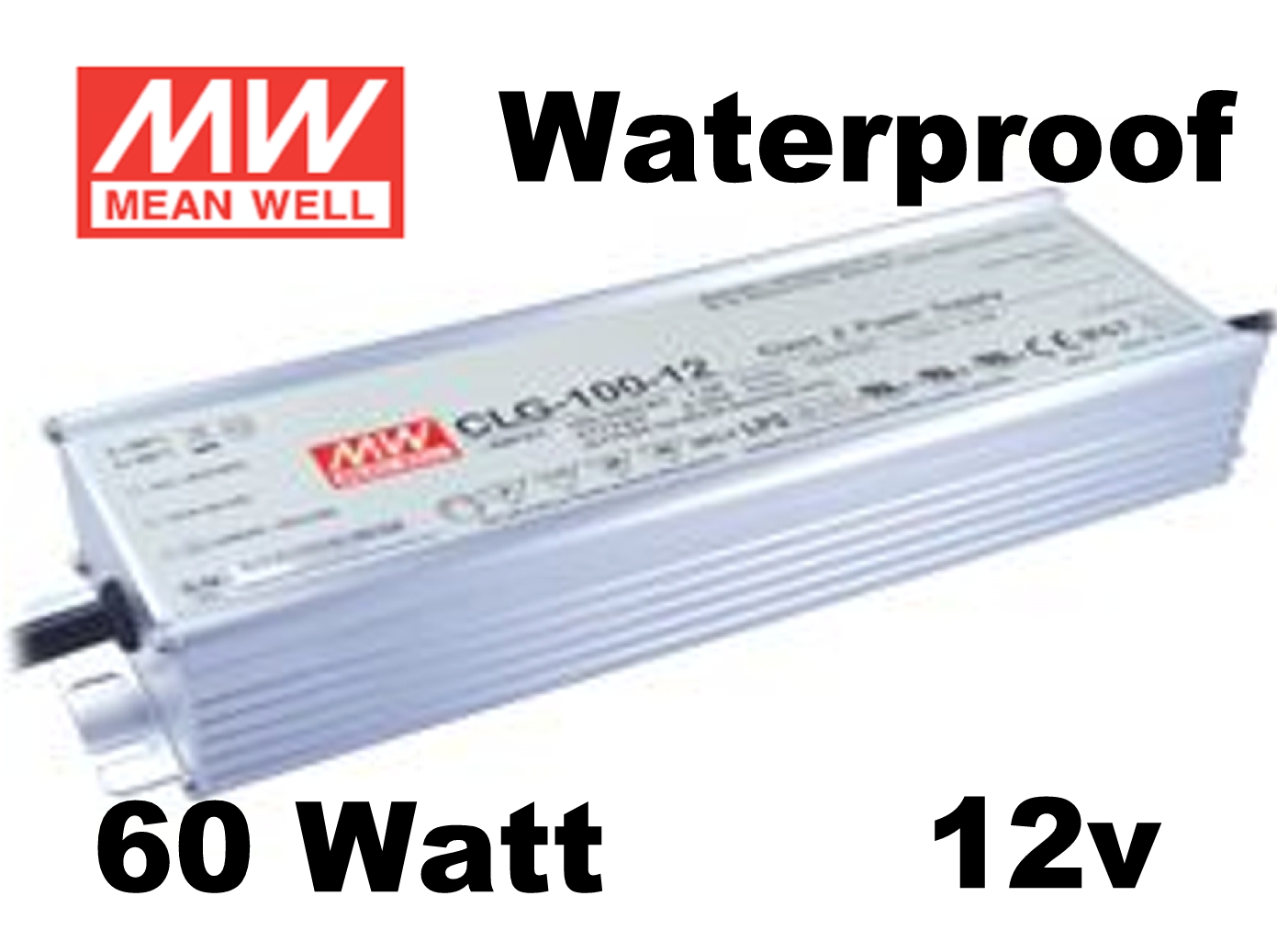

Mean Well CLG-100-12

Mean Well CLG-100-12

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Mean Well CLG-100-12

Details

These are one of the best power supplies made.
they are great for commercial/industrial use where they will be on all the time or for aplications where you need the best quality you can get

IP-67 UL1310 class 2 enclosure can protect the electronic components against dust and submersion of water up to 1 meter.



  • Input Voltage Range: 90 ~ 295VAC 127 ~ 417VDC
  • Input Current: 12V:0.8A/115VAC  /   0.4A/230VAC
  • Built-in active PFC function
  • Efficiency Level:  (84.5%)
  • Minimum Rated Hours Before Fail (MTBF): 301K Hrs
  • Protections: Short circuit/Over load/Over voltage/Over temperature
  • Cooling by free air convection
  • Over Temp Protection type : Shut down o/p voltage, re-power on to recover
  • IP67 design for indoor or outdoor installations
  • UL1310, Class 2 power unit
  • Working Temp -30C ~ +70C (Refer to output load derating curve)
  • Suitable for LED lighten & moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 100% full load burn-in test
  • Damp / wet location outdoor application
  • 3 years warranty


Additional Information

Suggested Uses

Indoor and Outdoor Applications with heavy moisture and dust

Commercial
Industrial
Residential  where they will be on all the time or for applications where you need the best quality you can get

Product Highlights
  • Input Voltage Range: 90 ~ 295VAC 127 ~ 417VDC
  • Input Current: 12V:0.8A/115VAC  /   0.4A/230VAC
  • Built-in active PFC function
  • Efficiency Level:  (84.5%)
  • Minimum Rated Hours Before Fail (MTBF): 301K Hrs
  • Protections: Short circuit/Over load/Over voltage/Over temperature
  • Cooling by free air convection
  • Over Temp Protection type : Shut down o/p voltage, re-power on to recover
  • IP67 design for indoor or outdoor installations
  • UL1310, Class 2 power unit
  • Working Temp -30C ~ +70C (Refer to output load derating curve)
  • Suitable for LED lighten & moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 100% full load burn-in test
  • Damp / wet location outdoor application
  • 3 years warranty
Led Color N/A
Mounting Options Other
Waterproof Rating IP-67, The enclosure can protect the electronic components against dust and submersion of water up to 1 meter.
Voltage 120/240v
Wattage 60 Watts
Power Usage in Amps: Rated (Actual) Input Current: .8A @ 115VAC / .4A @ 230VAC
Output Power 0 ~ 5A - 60W
Connections Input/Output

A/C Input: 11" long Blue ((N),  Brown (L) and Green (GND) Wires

Output: 11"  long Red (+) and Black (-)  Wires

Power Input: Connection Type, Voltage, Amperage 11" long Blue ((N), Brown (L) and Green (GND) Wires
Output Connection Type 11" long Red (+) and Black (-) Wires
Can Power/Control (xx) Feet of strip can connect up to 30' of our 12v standard RGB Flex-Strip
Weight / Item 2.2 lb
Product Size (L)x(W)x(H) (L) 8.8" x (W) 2.7" x (H) 1-1/2" in (L) 222.2mm x (W) 68mm x (H) 38.8mm
Warranty 3 Year
