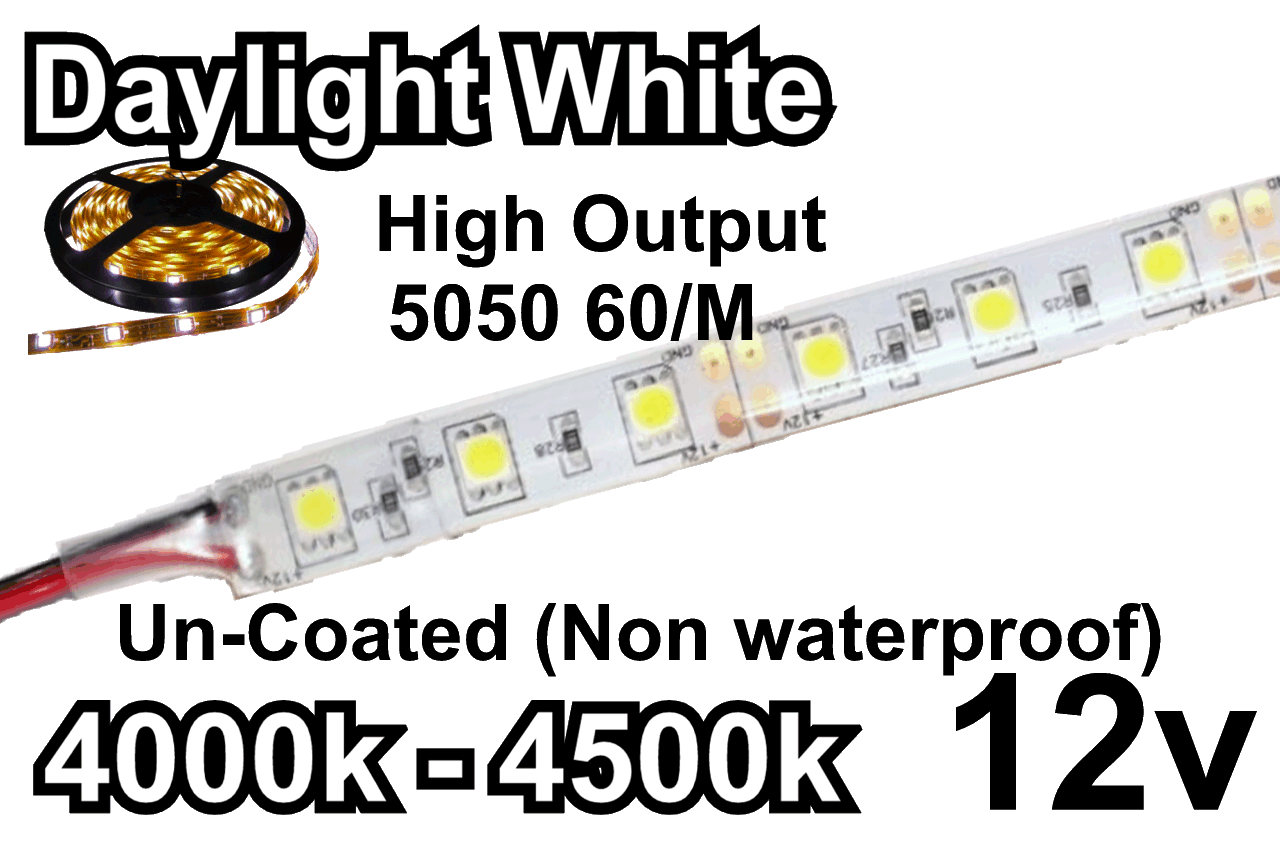

Daylight White Flexible LED Strip Un-Coated (Non waterproof)
These flexible LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5" with 6" wire on each end). They come with 3M double stick adhesive tape on the back of the strip for easy mounting- simply peel and stick! The LED type used are the 5050 type super bright 3 in 1 SMD LEDs. There are 300 per 16' roll. They run on 12V DC. You can cut these strips every 2" ~ they are very easy to work with!
Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~We can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 2.5' of flexible LED strip) or 48 watt (can control up to 12' of flexible LED strip) are recommended~ these are based on the rated power draw ~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
These Flexible Strips Are Great For
|Led Color||Daylight White 4000k-4500k|
|Length Of Strip||5 Meters/Reel 16'-5" long rolls with 6" of wire on each end|
|Cuttable Every||50mm (2")|
|# of LEDs / Meter||60|
|# of LEDs / Reel||300|
|Type of LED||Super Bright 3 in 1 5050 SMD LEDs|
|Viewing Angle (Degrees)||120 degrees|
|Mounting Options||"3M Peel and Stick" Backing on Strips, Double Sided Tape, Ceiling Mount, Wall Mount, Under Cabinet|
|Waterproof Rating||Un-Coated (Non waterproof)|
|Power Usage Watts / Foot: Rated (Actual)||4 Watts/Foot|
|Power Usage in Amps: Rated (Actual)||Rated 6A/Roll|
|Max Connected Strip Length From Each Power Connection||at full brightness we recommend you only connect 1 rolls from each power feed wire and for accent lighting say about 20% you can connect 3x rolls end to end|
|Dimmable Range / Steps||0-100% via PWM|
|Strip Backing Color||White|
|Product Size (L)x(W)x(H)||(5m)x(10.2)x(2.8) mm|
|Strip Width||.4" (10.2mm)|
|Strip Thickness||.11" (2.8mm)|
|Available Options||We can get this in
(12v or 24v)
(150 or 300 led/m)
(any color led Warm White, Cool White, Red, Blue, Green, Yellow, Etc...)
(Waterproof ip-65 ip-66 ip-67 ip-68)
(side or top emitting led)
