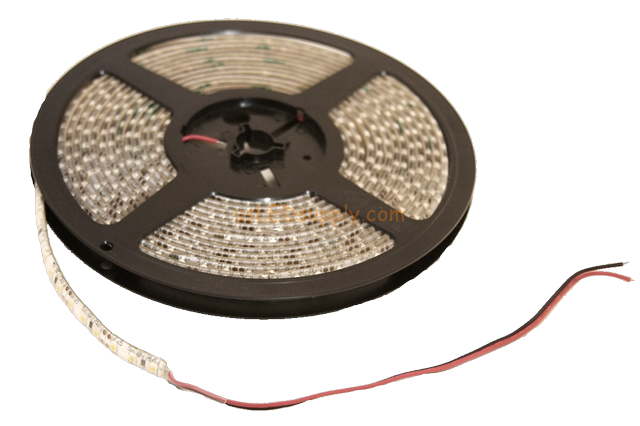

Pure White Flexible LED Strip
These Pure white flexible LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light. These are the narrowest of our flexible LED strips.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5" with 6" wire on each end). They come with 3M double stick adhesive tape on the back of the strip for easy mounting- simply peel and stick! The LED type used are the 3528 type super bright SMD LEDs. There are 600 per 16' roll. They run on 12V DC. The waterproof rating is IP-65, which means that these flexible LED strips are water resistant. You can cut these strips every 1" ~ they are very easy to work with!
Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~For $3.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 3' of flexible LED strip) or 48 watt (can control up to 13' of flexible LED strip) are recommended~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
These Flexible Strips Are Great For
The narrowest of our flex strips.
|Led Color||Pure White 5700k-6300k|
|Length Of Strip||5 Meters/Reel 16'-5" long rolls with 6" of wire on each end|
|Cuttable Every||1" (.98")|
|# of LEDs / Meter||120|
|# of LEDs / Reel||600 3528 SMD Leds / Reel|
|Type of LED||Super Bright SMD 3528|
|Viewing Angle (Degrees)||120 degrees|
|Mounting Options||"3M Peel and Stick" Backing on Strips, Ceiling Mount, Silicone Adhesive or Zip Ties, Wall Mount|
|Waterproof Rating||Water Resistant (IP-65)|
|Power Usage Watts / Foot: Rated (Actual)||4 Watts/Foot (Actual 3.5 Watts/Foot)|
|Power Usage in Amps: Rated (Actual)||4A/Roll (Actual 3A/Roll)|
|Usage in Amps: Rated (Actual) Red, Blue, Green, White||4A/ Roll|
|Output Power||2A - 24W|
|Recommended Power Supply Size||
1-3 Feet = 1A 12W 12v DC Power Supply
|Max Connected Strip Length From Each Power Connection||16'|
|Dimmable Range / Steps||0-100% via PWM|
|Wire Color Code Chart||
Red = 12v (+)
|Strip Backing Color||White|
|Strip Width||8mm (.32" or 5/16")|
|Strip Thickness||3mm (.135" or 1/8")|
|Comes With||6" wire on both ends|
|Suggested Accessories||Male Power connector for connecting to our Power Supplies|
|Available Options (may not be in stock)||IP-68 or un-coated|
