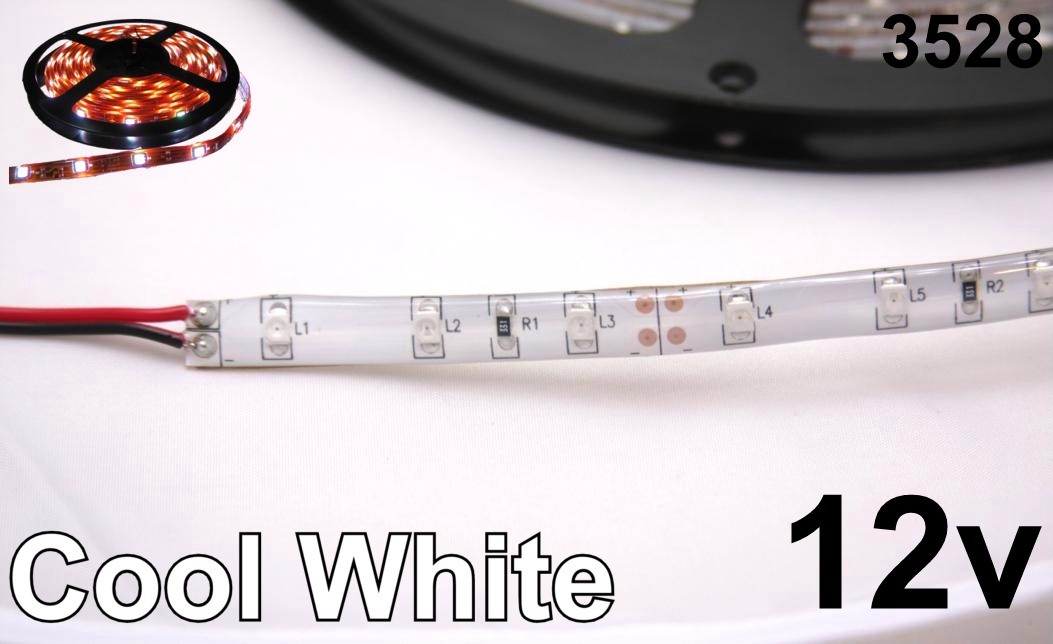

12V Pure White 3528 Flexible LED Strip 16' Roll 5700k-6300K

Be the first to review this product

Availability: In stock

Only 2 left

Regular Price: $80.00

Sale Price $50.00

Quick Overview

Pure White Flexible Led Strip 3528 5700k-6300K

12V Cool White 3528 Flexible LED Strip 16' Roll

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 12V Cool White 3528 Flexible LED Strip 16' Roll
  • 12V Cool White 3528 Flexible LED Strip 16' Roll
  • 12V Cool White 3528 Flexible LED Strip 16' Roll

* Required Fields

Regular Price: $80.00

Sale Price $50.00

Details

Pure White Flexible LED Strip
These Pure white flexible LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.  These are the narrowest of our flexible LED strips.  The cool white strips produce a light similar to that of a fluorescent light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5"  with 6" wire on each end).  They come with 3M double stick adhesive tape on the back of the strip for easy mounting- simply peel and stick!  The LED type used are the 3528 type super bright SMD LEDs.  There are 300 per 16' roll.  They run on 12V DC.  The waterproof rating is IP-65, which means that these flexible LED strips are water resistant.  You can cut these strips every 2" ~ they are very easy to work with!
Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~We can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 5' of flexible LED strip) or 48 watt (can control up to 24' of flexible LED strip) are recommended~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).

Additional Information

Suggested Uses

These Flexible Strips Are Great For
Mood lighting
Cove lighting
Wall washing
Cabin or camp lighting
Off-grid or solar-powered lighting
Disco or party lighting
Restaurant, Bar, Night Club,
Commercial window lighting
Motorcycle, ATV, Safety Lighting

Product Highlights

The narrowest of our flex strips.
Cuttable every 2"


Led Color Pure White 5700k-6300k
Length Of Strip 5 Meters/Reel 16'-5" long rolls with 6" of wire on each end
Cuttable Every 2"
# of LEDs / Meter 60
# of LEDs / Reel 300 3528 SMD Leds / Reel
Type of LED Super Bright SMD 3528
Viewing Angle (Degrees) 120 degrees
Mounting Options "3M Peel and Stick" Backing on Strips, Ceiling Mount, Silicone Adhesive or Zip Ties, Wall Mount
Waterproof Rating Water Resistant (IP-65)
Voltage 12v
Wattage 24W
Power Usage Watts / Foot: Rated (Actual) 1.5 Watts/Foot (Actual 1.5 Watts/Foot)
Power Usage in Amps: Rated (Actual) 2A/Roll (Actual 2A/Roll)
Usage in Amps: Rated (Actual) Red, Blue, Green, White 2A/ Roll
Output Power 2A - 24W
Recommended Power Supply Size

1-5 Feet = 1A 12W 12v DC Power Supply
5-21 Feet = 48W 4A DC Power Supply
21-32 Feet = 72W 6A DC Power Supply
for longer runs you can stack power supplies or contact us for larger power supplies

Dimmable Range / Steps 0-100% via PWM
Wire Color Code Chart

Red = 12v (+)
Black = 12v (-)

Strip Backing Color White
Strip Width 8mm
Strip Thickness 3mm
Comes With 6" wire on both ends
Suggested Accessories Male Power connector for connecting to our Power Supplies
Available Options (may not be in stock) IP-68 or un-coated
Available Options IP-68
