12V LED RGB Digital Pixel Light Round (WS2801 Chip) 26" Spacing

Be the first to review this product

Availability: In stock

Regular Price: $2.50

Sale Price $1.95

  • Buy 50 for $1.70 each and save 13%

Quick Overview

12V LED RGB Digital Pixel Light Round (WS2801 Chip) 26" Spacing

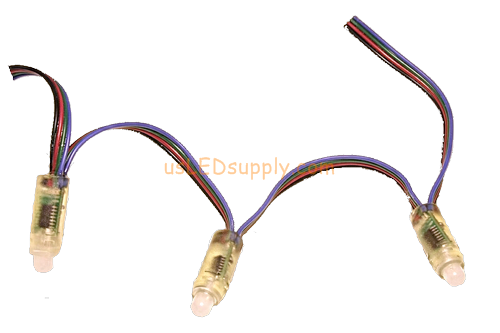

12V LED RGB Digital Pixel Light Round (WS2801 Chip)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 12V LED RGB Digital Pixel Light Round (WS2801 Chip)
  • 12V LED RGB Digital Pixel Light Round (WS2801 Chip)
  • 12V LED RGB Digital Pixel Light Round (WS2801 Chip) DMX


RGB Digital Pixel Light Round 26" Spacing
These are the Digital Pixels that can be controlled with computers and other DMX/Digital Controllers or stand alone SPI Controllers. The advantage of digital pixels are that you can control each module by itself so you can make chasing effects and other patterns. These color changing LED modules are very easy to use and install.

You can order them by the piece or connected togeather.  They run on 12V DC.  They are potted with a waterproof epoxy and have a semi clear lens, they can be exposed to weather.  ~ they are very easy to work with!

Details / Options

~~These RGB modules can change any color with the use of a SD Card Controller Or With DMX to 2801 Converter. you will need a SD Card Controller designed to control the WS2801 chip or use DMX and a DMX to WS2801/WS2803 Converter

~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 40x of these modules) or the 48 watt Power Supply(can control up to 160x of these modules)  the 72 watt (can control up to 240x of these modules)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).

Additional Information

Suggested Uses

Color Changing Signs
Video Walls
Christmas Lights
Building Outline
Other Lighting Effects
Night Clubs
Home Theater Rooms
Window Displays

Led Color RGB
Length Of Strip modules are every +/- 26" on center
Type of LED 1x RGB Led / Module
Viewing Angle (Degrees) 110°-180° deg
Mounting Options Silicone Adhesive or Zip Ties, Other
Waterproof Rating IP-68
Voltage 12v
Wattage .3 watts per module (60mA)
Power Usage Watts / Foot: Rated (Actual) x Watts/Foot
Number Of Chanels 3 DMX Channels/Pixel
Connections Input/Output

Black = 12v (+)
Red = CLK
Green = Data
Blue = 12v (-)
Side with black chip is input

Max Connected Strip Length From Each Power Connection you should supply aditional power every 40-80 modules
Controllable By DMX to WS2801 Decoder or Digital Controller
Lumens 9 lm/pixel
Product Size (L)x(W)x(H) drill bit size .47" (12mm). max matt thickness .078" (2mm) total hight 1.5" (38 mm)
Comes With if you order individual modules they will have +/- 13" wire on both sides of the module
Available Options (may not be in stock) 5v 12v 4", 6", 16", 26"
Available Options 6" spacing
