5V RGB Flexible LED Strip 16' Roll (Digital Point Control) (160x WS-2801 chips / 160 Led) IP-68

Be the first to review this product

Availability: In stock

Regular Price: $200.00

Sale Price $155.00

OR

Quick Overview

Digital RGB Flexible Led Strip WS-2801 Chip 5V (Every LED Controllable)

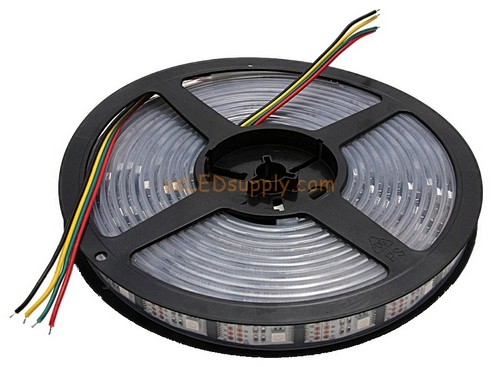

5V RGB Flexible LED Strip 16' Roll (Digital Point Control) (160x WS-2801 chips / 160 Led) IP-68

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 5V RGB Flexible LED Strip 16' Roll (Digital Point Control) (160x WS-2801 chips / 160 Led) IP-68
  • 5V RGB Flexible LED Strip 16' Roll (Digital Point Control) (160x WS-2801 chips / 160 Led) IP-68
  • 5V RGB Flexible LED Strip 16' Roll (Digital Point Control) (160x WS-2801 chips / 160 Led) IP-68
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control 2801)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)12v RGB Flexible LED Strip 16' Roll (Digital Point Control)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)
  • 12v RGB Flexible LED Strip 16' Roll (Digital Point Control)

Details

RGB Flexible Digital LED Strip 5V
These are the Digital strips that can be controlled with computers and other DMX/Digital SD Card Controllers. The advantage of digital strips is that you can control each led (1.22" section) by itself so you can make video/chasing effects and other patterns. These color changing LED strips are flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.

Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with wire on each end).  The LED type used are the 5060 type super bright 3 in 1 SMD LEDs.  There are 160 per 16' roll.  They run on 5V DC.  The waterproof rating is IP-68, which means that these flexible LED strips can get wet.

Details / Options

~~These RGB strips can change any color/pattern with the use of a controller or via DMX so you will need a SD Card Controller designed to control the 2801 chip or use standard DMX and a DMX to WS2801/WS2803 Converter.


~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!

~~These run on 5V DC so are better for short runs or with several feeds as voltage drop can be a problem on long runs ~ figure 2 watts/ft of strip for sizing the power supply (based on the rated power draw) ~ you may be able to get longer runs than this on a power supply but we can not guarantee it).


~~Comes with a white backing.

For a video of the 6803 (older version) of the 12v strips in action Click Here (these will have 3 times the resolution)




Additional Information

Suggested Uses

House Outlines
Video Walls
Hallways
Other Lighting Effects

Led Color RGB
Length Of Strip 5 Meters/Reel 16'-4" long rolls
Cuttable Every 1.22" 31mm (Every LED)
# of LEDs / Meter 32
# of LEDs / Reel 160x 5060 SMD Leds / Reel (spaced 1.22in 31mm apart on center)
Type of LED 160x 5060 SMD
Viewing Angle (Degrees) 120 deg
Mounting Options Double Sided Tape, Ceiling Mount, Wall Mount
Waterproof Rating IP-68 (can get wet but not recommended for under water)
Voltage 5v
Wattage 2 Per Foot
Power Usage Watts / Foot: Rated (Actual) 2 Watts/Foot
Number Of Chanels each strip will use 480 (160x RGB) DMX channels
Connections Input/Output

this will not work with our Solder-less Splice Connectors

Red = 12v (+)
Green = Clock (CLK)
Yellow = Data (DAT)
Black = Ground (GND) (-)

Power Input: Connection Type, Voltage, Amperage 5v DC
Max Connected Strip Length From Each Power Connection With the 5v digital strips you will need a wire running from the power supply to the start/end of each reel
Controllable By DMX 2801 Decoder or SD Card Controller Controller 2801
Strip Backing Color White Backing
Strip Width bare strip (.48") with coating (.58") 15mm
Strip Thickness .17" (4.6mm)
Comes With 6" wire on both ends
Available Options 12V Strip with every 3x LED Controllable
