12V LED RGB Pixel Light Round (Standard RGB)

Be the first to review this product

Availability: In stock

Regular Price: $2.50

Sale Price $2.00

  • Buy 100 for $1.75 each and save 13%
OR

Quick Overview

12V LED RGB Pixel Light Round (Standard RGB)

12V LED RGB Pixel Light Round (Standard RGB)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 12V LED RGB Pixel Light Round (Standard RGB)
  • 12V LED RGB Pixel Light Round (Standard RGB)

Details

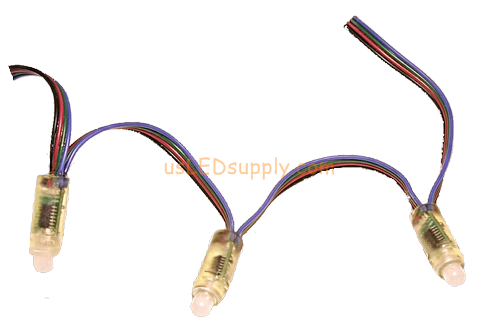

RGB Pixel Light Round (Standard RGB)
These are the standard RGB Pixel Modules they work the same as RGB strips where they all change together and can be connected to a standard RGB Controller or mixed in with 12v RGB Strips or Modules.

You can order them by the piece or connected together.  They run on 12V DC.  They are potted with a waterproof epoxy and have a semi clear lens, they can be exposed to weather.  ~ they are very easy to work with!

Details / Options

~~These RGB modules can change any color with the use of a standard RGB Controller (they will all change at once so you can't make each one a different color like the digital version


~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 40x of these modules) or the 48 watt Power Supply(can control up to 160x of these modules)  the 72 watt (can control up to 240x of these modules)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).




Additional Information

Suggested Uses

Color Changing Signs
Costumes
Christmas Lights
Building Outline
Hallways
Other Lighting Effects

Led Color RGB
Length Of Strip modules are every +/- 3-1/2" on center
Cuttable Every module
Type of LED 1x RGB Led / Module
Viewing Angle (Degrees) 110°-180° deg
Mounting Options Silicone Adhesive or Zip Ties, Other
Waterproof Rating IP-68
Voltage 12v
Wattage .6 watts per module (60mA)
Power Usage Watts / Foot: Rated (Actual) 1.8x Watts/Foot
Usage in Amps: Rated (Actual) Red, Blue, Green, White Per Module R+G+B = .05A (R=.018A) (B =.018A) (G=.018A)
Number Of Chanels 3 Channels
Connections Input/Output

Yellow = 12v (+)
Red = Red 12v (-)
Green =Green 12v (-)
Blue = Blue 12v (-)

Max Connected Strip Length From Each Power Connection you should supply aditional power every 40-80 modules
Controllable By Standard RGB Controller
Dimmable Range / Steps Depends on Controller
Lumens 9 lm/pixel
Product Size (L)x(W)x(H) drill bit size .47" (12mm). max matt thickness .078" (2mm) total hight 1.5" (38 mm)
Comes With if you order individual modules they will have +/- 2" wire on both sides of the module
Available Options (may not be in stock) custom spacing (few week lead time)
