12V Warm White Flexible LED Strip 16' Roll (5050 30/M 150/Roll) 2400k-2600k Un-Coated (Non waterproof)

Be the first to review this product

Availability: In stock

Regular Price: $70.00

Sale Price $50.00

Quick Overview


Warm White Led Strip



This is for our Bare Flex Strip (not coated) used for indoor and custom applications.



For most applications we recommend our standard Flex Strips with the silicone coating

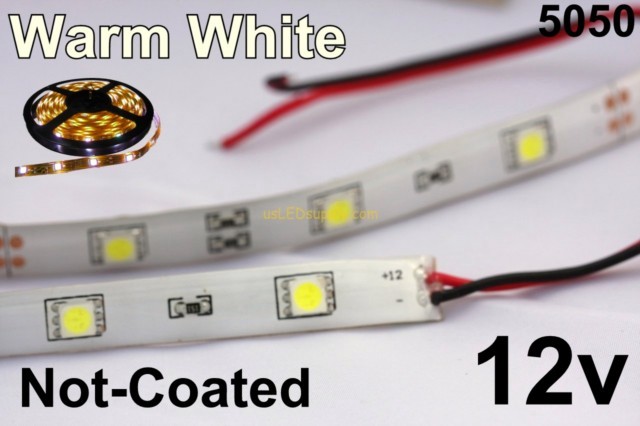

Flex Strip Warm White 5050 12v un-coated.jpg

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Flex Strip Warm White 5050 12v un-coated.jpg
  • SMD Self Stick Backing of Flexible LED Strip
  • Specifications for Flexible LED Strip

* Required Fields

Regular Price: $70.00

Sale Price $50.00

Details

Warm White Flexible LED Strip Un-Coated (Non waterproof)
These flexible LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5"  with 6" wire on each end).  They come with 3M double stick adhesive tape on the back of the strip for easy mounting- simply peel and stick!  The LED type used are the 5050 type super bright 3 in 1 SMD LEDs.  There are 150 per 16' roll.  They run on 12V DC.  You can cut these strips every 3.94" ~ they are very easy to work with!

Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~For $1.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 5' of flexible LED strip) or 48 watt (can control up to 24' of flexible LED strip) are recommended~ these are based on the rated power draw ~ you may be able to get longer runs than this on a power supply but we can not guarantee it).



Additional Information

Suggested Uses

These Flexible Strips Are Great For
Mood lighting
cove lighting
Wall washing
Area lighting
Night Club, Disco or party lighting

Led Color Warm White
Length Of Strip 5 Meters/Reel 16'-5" long rolls with 6" of wire on each end
Cuttable Every 100mm (3.94")
# of LEDs / Meter 30
# of LEDs / Reel 150
Type of LED Super Bright 3 in 1 5050 SMD LEDs
Viewing Angle (Degrees) 120 degrees
Mounting Options "3M Peel and Stick" Backing on Strips, Double Sided Tape, Ceiling Mount, Wall Mount, Under Cabinet
Waterproof Rating Un-Coated (Non waterproof)
Voltage 12v
Wattage 32
Power Usage Watts / Foot: Rated (Actual) 2 Watts/Foot
Power Usage in Amps: Rated (Actual) Rated 3A/Roll
Max Connected Strip Length From Each Power Connection at full brightness we recommend you only connect 2 rolls from each power feed wire and for accent lighting say about 20% you can connect 5x rolls end to end
Dimmable Range / Steps 0-100% via PWM
Strip Backing Color White
Product Size (L)x(W)x(H) (5m)x(10.2)x(2.8) mm
Strip Width .4" (10.2mm)
Strip Thickness .11" (2.8mm)
Available Options We can get this in

(12v or 24v)

(150 or 300 led/m)

(any color led Warm White, Cool White, Red, Blue, Green, Yellow, Etc...)

(Waterproof ip-65 ip-66 ip-67 ip-68)

(side or top emitting led)
