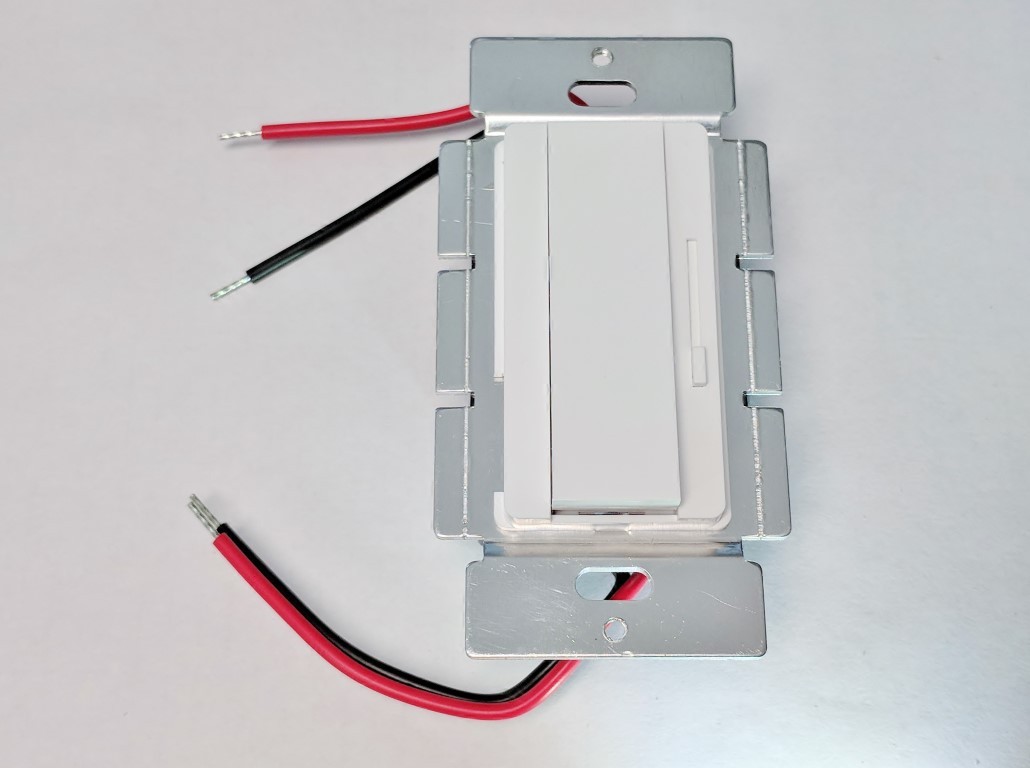

PWM Slide Dimmer With Rocker Switch 8A (Wall Plate) (Side Slider)

Be the first to review this product

Availability: In stock

Regular Price: $28.00

Sale Price $25.00

OR

Quick Overview


PWM Slide Dimmer With Switch 8A (Wall Plate)

SKU #610563075102


PWM Slide Dimmer With Rocker Switch 8A (Wall Plate) (Side Slider)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • PWM Slide Dimmer With Rocker Switch 8A (Wall Plate) (Side Slider)
  • PWM Slide Dimmer With Rocker Switch 8A (Wall Plate) (Side Slider)
  • PWM Slide Dimmer With Rocker Switch 8A (Wall Plate) (Side Slider)

Details

PWM Slide Dimmer With Decora Style Switch 8A (Wall Plate) This is a great PWM dimmer to use with our single color flexible LED strips for 0-100% dimming control.
~~Mounts in standard single gang switch box
~~Uses standard decora face plate
~~On/Off Switch
~~Input: Wire Pigtails.
~~Output:
Wire Pigtails.
~~Requires 12v-24v DC input


Please visit our
How To Install section for instructions on connecting to or from this controller or any of our other products.



Additional Information

Suggested Uses

Dimmer Switch for single color strips
Eaisly mounts in single gang electric switch box
Use standard decora style wall plates

Product Highlights

Full Range Dimming
Decora Style On/Off Switch with side dimmer

Led Color N/A
Mounting Options Wall Mount
Voltage 12/24v
Wattage 1-100w
Power Usage in Off or Standby State <1w
Power Rating Max Amps 8A @ 12v / 4A @ 24v
Power Rating Max Watts 100w
Number Of Chanels 1
Recommended Power Supply Size 12-100w
Power Input: Connection Type, Voltage, Amperage Wires
Output Connection Type Wires
Can Power/Control (xx) Feet of strip can connect up to 50' of our 12v standard output single color flex-strip
Controllable By Slide Dimmer
Dimmable Range / Steps 0-100% via PWM
Wire Color Code Chart

Red = (+)
Black = (-)

Product Size (L)x(W)x(H) Back 2.5" H x 1.75" W x 1.35" D
Comes With Wire Nutts and Mounting Screws
Suggested Accessories White Decora Style Wall Plate
Available Options Also available in bottom switch model
