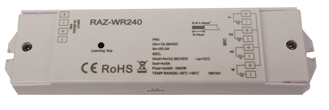

Wireless Dimming Receiver 4 Zone Razor Quattro
This is one of the most feature rich LED controllers available today, and it is still easy to use and well made. It is small and easy to connect, you can control your lights from anywhere without running wires, it can work through walls, and can control Single Color LED Modules and Strips.
Some of its features are:
~~Can control 4 Zones at 5A each (60 watts per zone @ 12v) (30ft of standard output led strips)
~~Works with both 12v and 24v strips (12-36v) (just use the correct voltage power supply for the strips)
~~Smooth Dimming 256 Steps with Fade on/off (controller feature) so when you turn it on/off the lights will fade on/off for a nice effect
~~Easy to learn multiple remotes to allow control from several areas
~~Remembers last effect and brightness setting so when you turn it on (same with power outage)
~~You can have several remotes controlling the same zone and/or one remote controlling several zones
~~No limit to the number of zones on one remote or the number of zones in the same area
~~4 Zones of control with one receiver to save $ and allow simple wiring with one power supply and controller
~~Works with Quattro Remotes (Not Included)
For instructions on connecting to or from this controller or any of our other products please visit our How To Install section.
Additional Information
| Suggested Uses | Great for Bedroom Accent Lighting Bathroom Effect Lighting Kitchen Under Cabinet Lighting, easy to mount these anywhere and no need to run wires to remotes. Theater Rooms
Closets and Basements
|
|---|---|
| Product Highlights |
Now you can control your lights with more than one controller as separate areas and as though they were connected! Have you ever wanted to control lights in two or more areas without the need to pull or run wires! The RAZ-WR240 dimming receiver does exactly that! It lets you individually control 4 different zones independently.
Also the wall control dimming system uses a strong RF signal that is able to travel through trees, buildings or glass, and can be used up to 100 feet away.
Includes:
One Dimmable Receiver good for 4 zone
You can add as many optional receivers as you wish to create different control zones. Each zone can have an endless number of receivers, which will let you do large or small installations. Functions Included: - Memory function: Even if the unit looses power, it will remember all dimming values, so when power comes back, all lights will be at the same level where they were left. - Soft On and Off: Every time you turn On or Off the lights they will gradually turn On/Off softly. Technical details: - Lightweight and Small - Control of 4 Zones - Learning Button - Dimming of LED's 12-36VDC - 12-36VDC operation - 256 Levels of extra smooth dimming - Soft start On/Off for gradual dimming - Up to 20 Amps of Power (Total all 4 zones) - 240 watts at 12V DC (Total all 4 zones) - Intelligent Channel Assignment
Easy Installation:
2. In order for each receiver to know what Zone it belongs to, you will need to "pair" it to the zone you wish to use. In order to do this, you need to power up the unit, and once that is done, you need to quickly and firmly press and release the learning button in the receiver: NOTE: To reset the receiver press and hold the “Learning” button until the lights blink 2 times. You can now pair it to a different zone.
|
| Led Color | N/A |
| Mounting Options | Wall Mount |
| Voltage | 12/24v |
| Wattage | n/a |
| Power Rating Max Watts | 12v 60w / 24v 120w / 36v 180w Per Channel |
| Number Of Chanels | 4 |
| Rated Amps / Ch | 5A/Ch |
| Recommended Power Supply Size |
Sized for the amount of strip connected to the controller (2 watts per foot for standard output and 4 watts per foot for high output)
|
| Connections Input/Output |
2x Power Input (V+) and (V-) |
| Power Input: Connection Type, Voltage, Amperage | Screw Terminal 12-36v |
| Output Connection Type | Screw Terminal |
| Can Power/Control (xx) Feet of strip | Up to 30' of 12v Standard Output Flex Strip or 15ft 12v High Output Flex Strip Per Channel |
| Controllable By | RF Remote (can go through walls) |
| Steps of Speed Adjustment | 256 Steps |
| Dimmable Range / Steps | Smooth On/Off/Dimming |
| Product Size (L)x(W)x(H) | Receiver (L) 7 x (W) 1.875 x(H) .82 |
| Suggested Accessories | Quattro Style Remotes |
