RGB LED Amplifier 8A/Ch

Be the first to review this product

Availability: In stock


Quick Overview

LT-3060-8A constant voltage power repeater

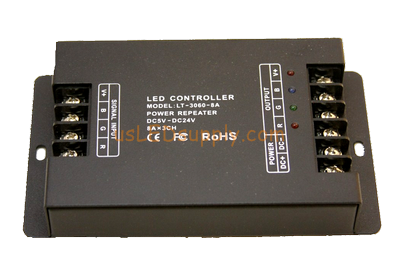

RGB LED Amplifier 8A/Ch

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB LED Amplifier 8A/Ch
  • RGB LED Amplifier 8A/Ch


RGB LED Amplifier 8A/Ch

Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output.
~LT-3060 Constant voltage power repeater
~Supports PWM (Pulse Width Modulation) control
~You can stack amps (2x repeaters connected = 16A/Ch)
~Input Power:  DC5V ~ DC24V
~Output Power: 120(5v) 288W (12V)  576W (24V)
~Product Dimension: L148 x W87 x H23 mm

You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.  Then, you can connect and control up to 8A/Ch of output (8x rolls of our RGB flexible LED strip).

For Amplifier/Controller Sizing Chart Click Here

Power supply is not included; we always suggest using switching mode power supplies for any application that involves LED lighting.

Additional Information

Led Color N/A
Mounting Options Wall Mount, Other
Voltage 5v-24v
Wattage 8A/Ch
Power Rating Max Amps 3Ch @ 8A/Ch 24A Max
Output Power 120(5v) 288W (12V) 576W (24V)
Number Of Chanels 3
Rated Amps / Ch 8A
Power Input: Connection Type, Voltage, Amperage Screw Terminal DC12V-DC24V (+)/(-) note for 12v strips use 12v input
Output Connection Type Screw Terminal Strip
Weight / Item 380g
Product Size (L)x(W)x(H) (L) 5.82" x(W) 3.42" x(H) .90" in (L148×W87×H23mm)
Comes With RGB Indicators on outputs
Available Options We can also get these in a constant current version 350mA and 700mA
