RGB RF Remote Controller with Audio Input/Mic 4A 6x Key

Be the first to review this product

Availability: In stock

Regular Price: $35.00

Sale Price $28.00

OR

Quick Overview

Includes 6 Button RF Remote Control (not pictured)

RGB RF Remote Controller with Audio 4A 6x Key

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB RF Remote Controller with Audio 4A 6x Key
  • RGB RF Remote Controller with Audio 4A 6x Key
  • RGB RF Remote Controller with Audio 4A 6x Key
  • RGB RF Remote Controller with Audio 4A 6x Key

Details

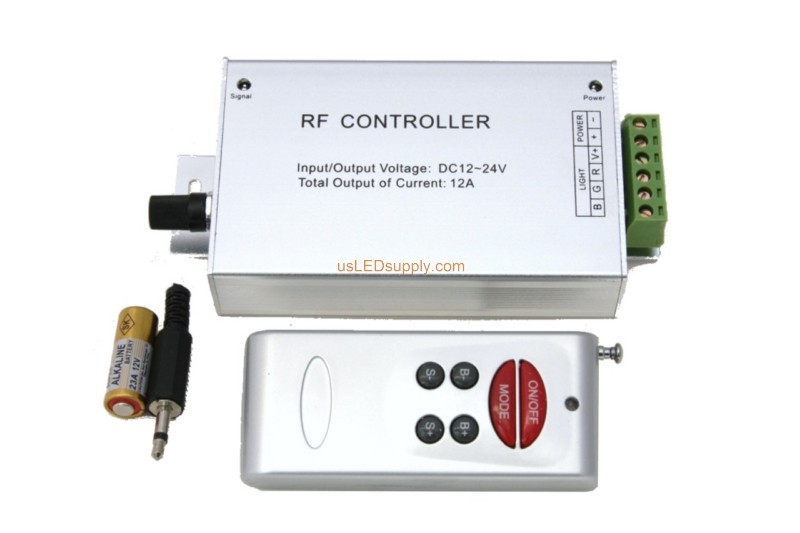

RGB RF Remote Controller with Audio 4A 6x Key
This is a great RGB flexible LED strip controller - it has has lots of options and has an RF remote so it can go through walls.  Best of all, it has an 1/8" audio in jack so you can connect to your sound system; or you can use the built in Mic and make your lights flash to the music! :-)
~~You can connect and control up to 4A/Ch or 48W/Ch of output (Can control 64' or 4x rolls of our RGB flex strip).
~~Input: Screw terminals for easy connection to a 12V power supply or car/boat battery wires.  It also has a built-in barrel plug for connecting to our 12V transformers, and an 1/8" audio jack for connecting to your audio player.
~~Output: Screw terminals for easy connection to our RGB flex strips or control cable.
~~Supports PWM (Pulse Width Modulation) for 0-100% dimming control (including full color range).
~~Can be used with amplifiers to control more than 4x rolls (1 roll is 16 feet) of RGB flex strip.
~~L=144mm W=64mm H=25mm (or 5.67" x 2.52" x 0.98" respectively)

~~Uses standard 12V doorbell battery in remote control.
This audio controller is great for college dorm rooms, kids' rooms, automotive under car lights, boat lighting effects, and home theaters.  They operate with the same remote as our other RF products, so if you are going to be using more than one in the same area, you can request one of them to be a different frequency.
Please visit our our How To Install section if you would like instructions on connecting to or from this controller or any of our other products.

Additional Information

Suggested Uses

These are great for:
~College dorm rooms
~Kids' rooms
~Automotive under car lights
~Boat lighting effects
~Home theater
~Computer case lighting
~wearable lights for costume/party

Product Highlights

~~1/8" audio in jack so you can connect to your sound system or use the built in Mic and make your lights flash to the music! :-)
~~RF 6 Key Remote Control (uses standard 12V doorbell battery in remote control).

These operate with the same remote as our other RF products, so if you are going to be using more than one in the same area, you can request one of them to be a different frequency (the range is quite far for these, up to 1000ft).

Led Color RGB
Mounting Options Wall Mount, Car/Truck/Motorcycle/Boat
Voltage 12v
Wattage 48/Ch
Output Power 4A/Ch - 48W/Ch
Number Of Chanels 3
Rated Amps / Ch 4A/Ch
Recommended Power Supply Size 12-144 Watts / 1-12 Amps, depending on connected strip length.
Connections Input/Output

Input:
Screw terminals for easy connection
to a car/boat battery wires
and/or
A built in barrel plug for connecting to our 12V transformers.

Also has 1/8" audio jack for connecting to your audio player.

Output:
Screw terminals for easy connection
to our RGB Flexible LED Strips or control cable.

Can Power/Control (xx) Feet of strip Can control 64' of our 12v RGB Flex Strip
can be used with amplifiers to control more then 4x reel (5M) of RGB Flex Strip
Controllable By 6x Button RF Remote Control (On/Off) (Mode) (Brightness + /- ) (Speed +/- )
Number Of Control Modes 13 Mode
Mode/Button Decription

01 Static Red                   (Brightness is Adjustable)
02 Static Green               (Brightness is Adjustable)
03 Static Blue                  (Brightness is Adjustable)
04 Static Yellow               (Brightness is Adjustable)
05 Static Cyan                 (Brightness is Adjustable)
06 Static Purple               (Brightness is Adjustable)
07 Static White                (Brightness is Adjustable)
08 Three Color Flash     (Brightness and Speed are Adjustable)
09 Seven Color Flash    (Brightness and Speed are Adjustable)
10 Three Color Fade      (Speed is Adjustable)
11 Seven Color Fade     (Speed is Adjustable)
12 3 Color Audio             (Color Changes With Frequency Brightness Changes With Volume) *
13 7 Color Audio             (Color Changes With Frequency Brightness Changes With Volume) *
*adjustable with sensitivity knob

Steps of Speed Adjustment 100x steps
Dimmable Range / Steps 0-100% in 256x steps
Product Size (L)x(W)x(H) L=144mm W=64mm H=25mm
Comes With Remote Control
Available Options (may not be in stock)

Available in 6/12/24v
Available with different remote frequency if you have 2 or more devices in the same area
