RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)

Be the first to review this product

Availability: In stock

Regular Price: $65.00

Sale Price $55.00

OR

Quick Overview

LT-DMX-SPI-201 (SKU# 610563075034)

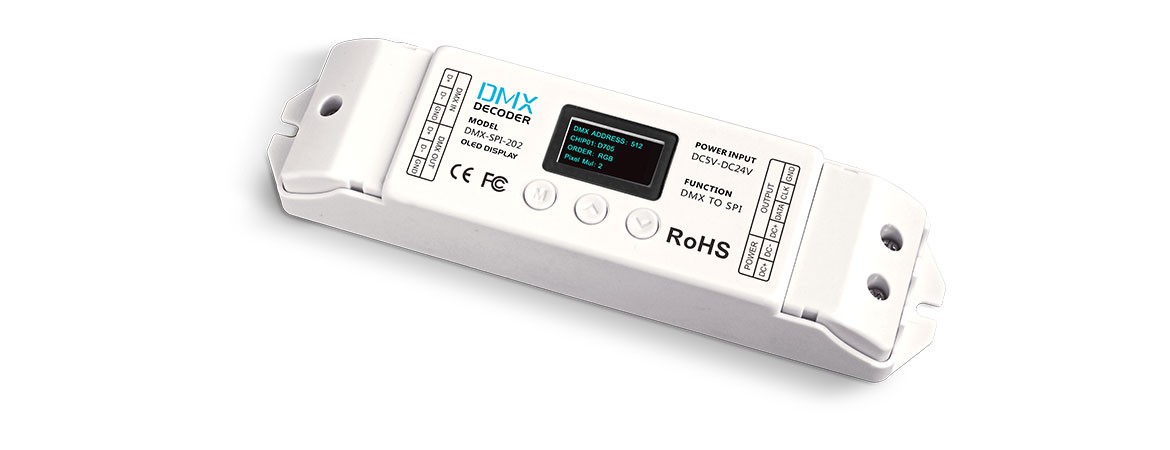

RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)
  • RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)
  • RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)
  • RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)
  • RGB DMX-SPI Universal Decoder (Works with most types of IC Chips in Digital Strips and Modules)

Details

This is our most versatile controller

It works with most types of IC Chips in Digital Strips and Modules so if you don't know what chip you have or if you plan on upgrading to a newer chip down the road you won't have to get a new decoder

You can also change the RGB order via dip switch so if your strips use a different order like GRB you can correct it

 Specifications:

Input signal DMX512
Input power DC5V~DC24V
Decoder channels 512 DMX CH/unit
Gray scale level 256 levels/CH (8bit/CH)
Compatible IC TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1803, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, , WS2811, WS2812, P9813
Dimming range 0~100%
Working Temperature -30℃~65℃
Product Dimensions L175×W42×H33mm
Package Dimensions L178×W46×H58mm
Weight(G.W) 310g






Additional Information

Suggested Uses

Theaters
Night Clubs
Party Busses
Stages
Churches
DJ Booths
Partys
Home Automation
Bands

Led Color RGB
Mounting Options Wall Mount, Other
Voltage 5v-24v
Wattage Less than 1w
Number Of Chanels 512
Connections Input/Output

DMX Connections (Screw Terminals)
1x DMX Input
1x DMX Output

Output Connections (To Strips)
GND
CLK
DATA
DC +
Power Input
DC -    (Black Wire)
DC +    (Red Wire)

Power Input: Connection Type, Voltage, Amperage (Screw Terminal) DC5V-DC24V (+)/(-)
Output Connection Type (Screw Terminals)
Controllable By DMX
Steps of Speed Adjustment Full Control with DMX
Dimmable Range / Steps 0-100% via DMX 256 levels/CH (8bit/CH)
Weight / Item 0.60lb
Product Size (L)x(W)x(H) L 7" x W 1.6" x H 1.3" (L175×W42×H33mm)
Suggested Accessories

Male Barrel Connector for easy connection to our Power Supplies
Control Cable for connecting to Strips

Warranty 2 Years
