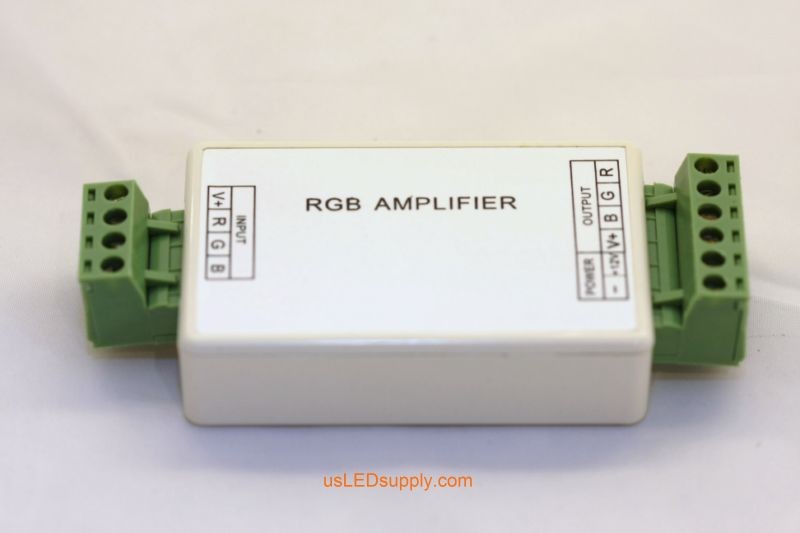

RGB Amplifier 4A/Ch Mini
This LED amplifier is a constant voltage power repeater and works with 12V DC. It is suitable for all of our RGB controllers to expand power output.
~~Input: Screw terminals for easy connection to our male barrel plug or stripped power supply wires.
~~Output: Screw terminals for easy connection to our RGB Flexible LED Strips or control cable.
~~You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip).
~~Supports PWM (Pulse-Width-Modulation) control for 0-100% Dimming and Full Color Control.
~~You can stack amplifiers (2x repeaters connected = 8A/Ch) (4x repeaters connected = 16A/Ch)
Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller. Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output.
To view Amplifier/Controller Sizing chart Click Here.
Additional Information
Suggested Uses | Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller. Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output. |
---|---|
Led Color | N/A |
Mounting Options | Other |
Voltage | 12v |
Wattage | 4A/Ch |
Output Power | 4A/Ch - 48W/Ch |
Number Of Chanels | 3 |
Rated Amps / Ch | 4A/Ch |
Power Input: Connection Type, Voltage, Amperage | Screw Terminal |
Output Connection Type | Screw Terminal |
Can Power/Control (xx) Feet of strip | Up to 64' of RGB Flex Strip or 4A/Ch |
Max Connected Strip Length From Each Power Connection | at full brightness (white) we recommend you only connect 2 rolls from each power connection for accent lighting say about 25% you can connect 8x rolls end to end |
Controllable By | Any of our Controllers |
Suggested Accessories | Male Power Connector for connecting to power supplies |
Available Options (may not be in stock) | Common Cathode (-) can also be custom made to convert common anode (+) to common cathode (-) (for controlling common cathode strips with our controllers) |
