Details

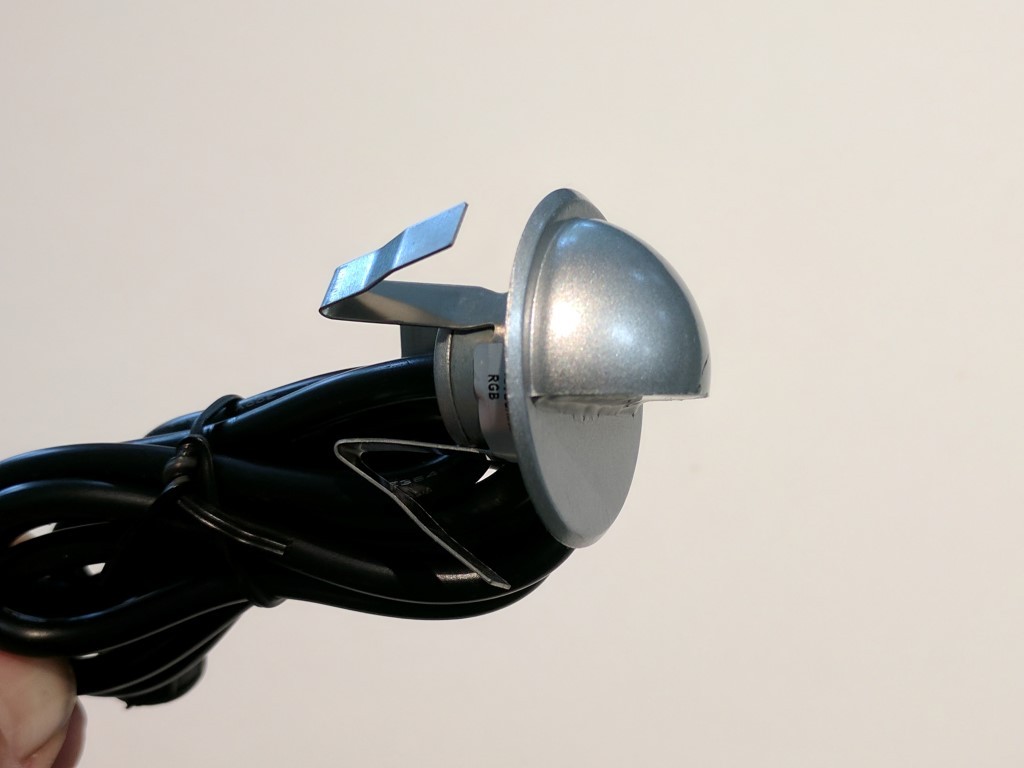

These are great RGB Puck Lights designed for architectural lighting.
These are made to be mounted on a post or wall facing down.
This version has 1x 3in1 Tricolor RGB led.
These are great puck lights that are designed to be controlled with our standard RGB Controllers so they can be used together with 12v RGB Flex Strip or on there own
They can be connected to the Controller using standard 22-4 or 18-4 wire with lengths of up to 100ft. Multiple lights can also be connected to the same controller.
Electrical
Power Requirement: 12VDC
Current: 0.4W Per Puck Light
Light Dimensions: (1.38" Diameter) x (D) 1.38"
Light
LED: 1x 3in1 RGB LED
Beam Angle: 120deg
Life Time ®: Expected 20,000 hours life at full power 50,000 on color change modes
Controller
Compatible Controller: any of our 12v RGB Controllers or Amplifiers (Common Anode)
You can connect multiple lights to one controller / power supply (just size your power supply/controller to handle the load of devices)
Color: Aluminum
Material: Aluminum
Additional Information
Suggested Uses |
Restaurants |
---|---|
Led Color | RGB |
Type of LED | 1x 3in1 RGB LED (SMD5060) |
Mounting Options | Wall Mount |
Waterproof Rating | IP-65 |
Voltage | 12v |
Wattage | 0.4w |
Recommended Power Supply Size | 0.4 watts/puck light |
Connections Input/Output | Pre Tinned Wire
|
Dimmable Range / Steps | 0-100% via PWM |
Product Size (L)x(W)x(H) | (1.38" Diameter) x (D) 1.38" (Drill 3/4" Hole) |
