Connecting RGB Flexible LED Strip to Strip
Splice Connector



Step #1: Remove about a ¼” of the waterproof coating from the end of the strip. You may use your fingernail (if you use a knife be very careful not to cut through the circuit board).

Peel off waterproof coating at the end of the flexible LED strip

Coating peeled off of the end of flexible LED strip


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

Step #2: For best results, clean the contacts with fine sandpaper or a wire brush. Also, trim 1/16” off the end of the circuit board so that the connec-tor will make better contact with the pads.

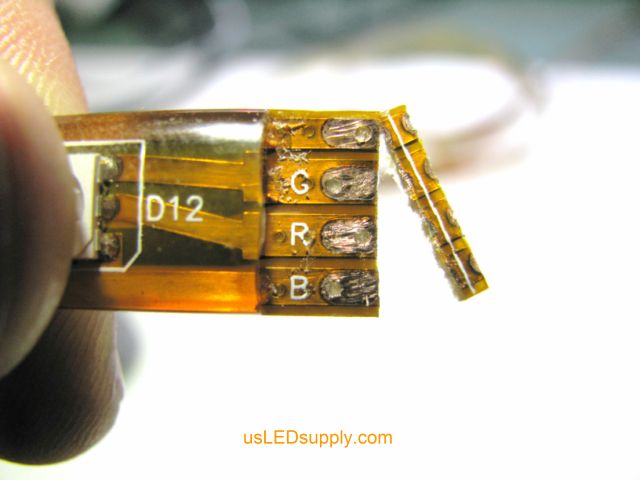

Trim excess off of the end of the RGB flexible LED strip- approximately 1/16 inch

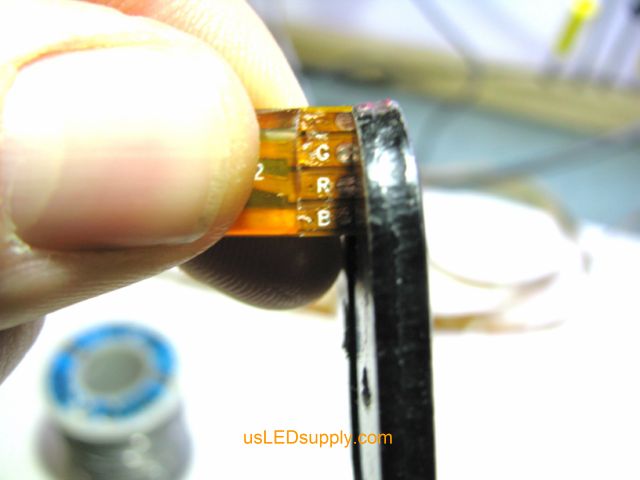

Trim excess off of the end of the RGB flexible LED strip- approximately 1/16 inch


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

Step #3: Take the connectors and open them up by pulling the black pieces outward. Insert RGB strip
into connector opening, being careful to match the color code letters on both strips. The bottom of the flex
strip should be touching the black piece. Insert as far as possible.

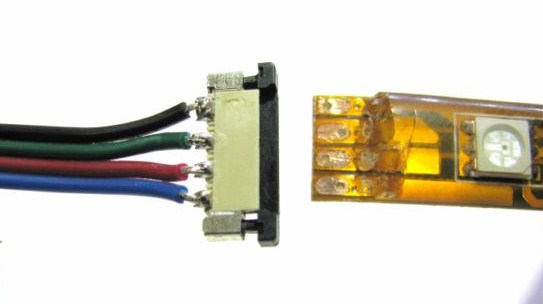

Open splice connector by pulling the black piece outward

Open splice connector by pulling the black piece outward


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

Step #4:  Push the black piece back in, locking the flex strip in place. Repeat process for the other side.


Push black piece of splice connector in to make connection


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

Note: You can use this method with both the RGB strip-strip splice connector and the strip-wire-strip splice connector.

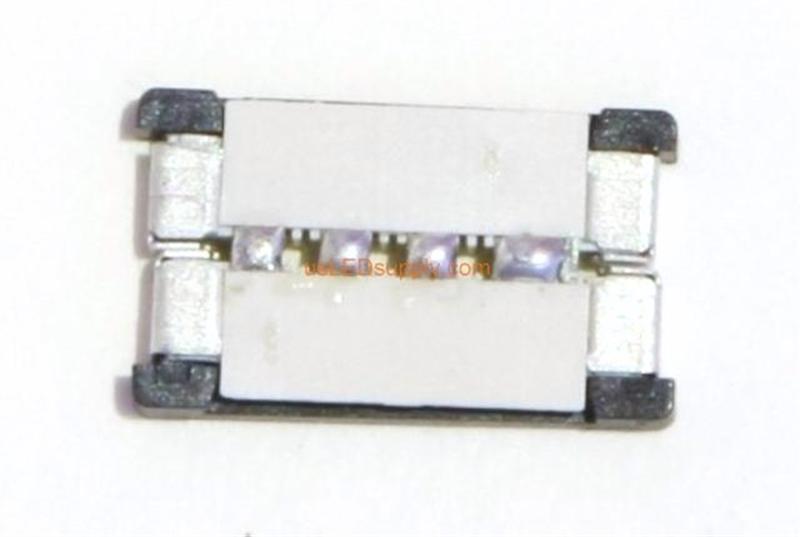

Strip-Strip RGB Splice Connector

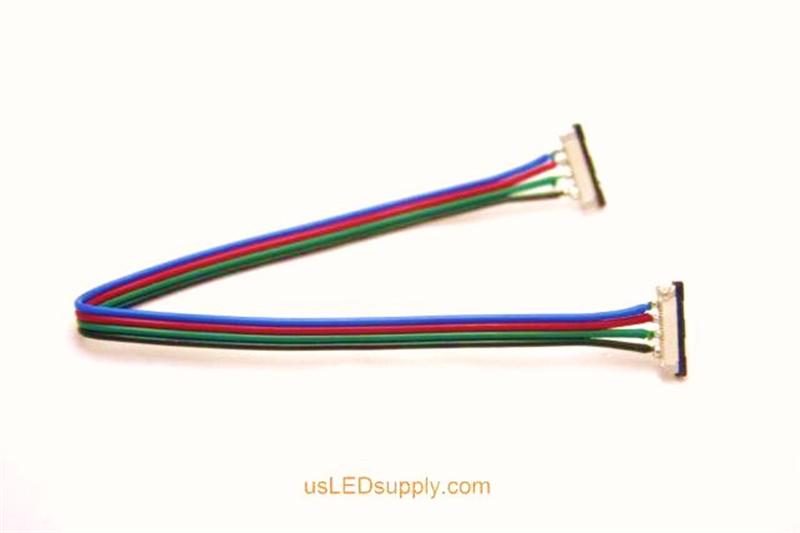

Strip-wire-strip RGB flexible LED Strip splice connector

Strip-strip splice connector connecting to RGB flexible LED Strips

Strip-wire-strip splice connector attached to RGB flexible LED strip


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−
−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−
