Connecting single color Flexible LED Strip to Strip
Butt (Crimp) Connectors


Step #1:   Place flex strips end-to-end with wires sticking straight up.


Place flexible LED strips end-to-end with wires sticking straight up


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #2: Cut off both pairs of wires, leaving 1½” of wire on each strip.


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #3: Pull smaller wires apart.  Then, twist same colors together.


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

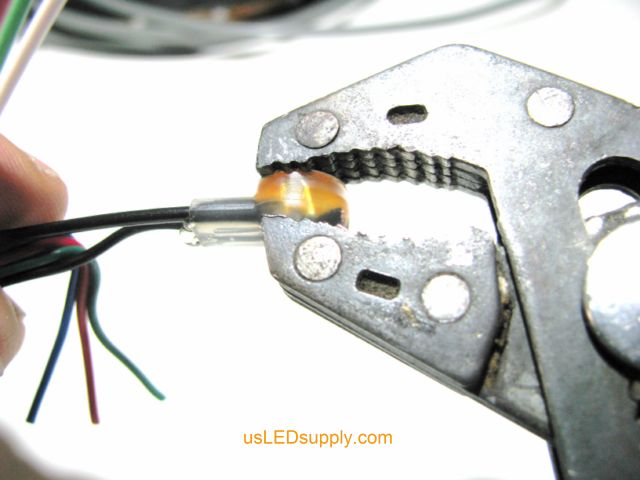

Step #4: Make a connection by inserting a pair of  like-colored wires the entire way into the butt connector.  With them inserted the whole way, crimp the butt connector with Channel-Lock or Robo-Grip type pliers.

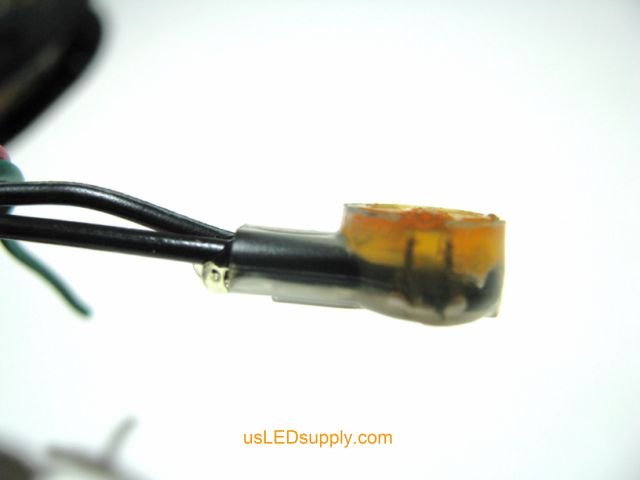

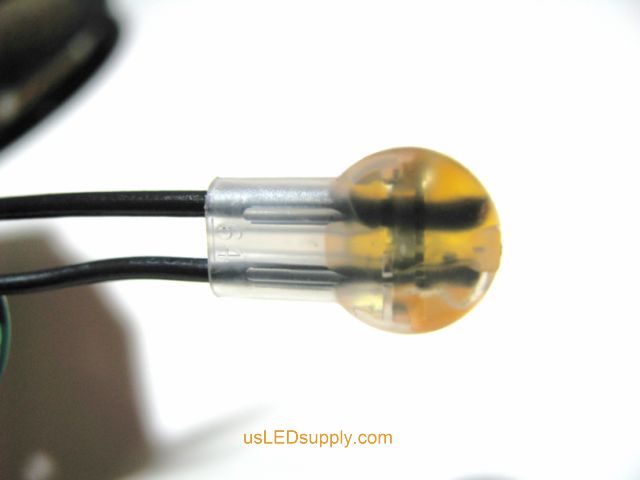

Insert both black wires the entire way into the butt connector. With wires fully inserted, crimp the butt connector with channel-lock or robo-grip type pliers Crimped butt connector all the way down


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #5: Repeat the process (two wires per butt connector) for the remaining colored wire pair.

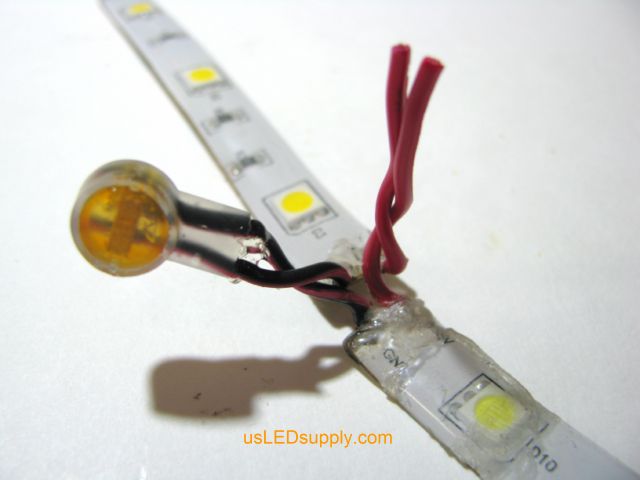

Single color flexible LED strips with black wires connected via butt (crimp) connector Two single color flexible LED strips connected with waterproof butt (crimp) connectors.


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−
