Attaching wires to single color Flexible LED Strip
Splice Connector



Step #1: Remove about a ¼” of the waterproof coating from the end of the strip.  You may use your fingernail (if you use a knife be very careful not to cut through the circuit board).

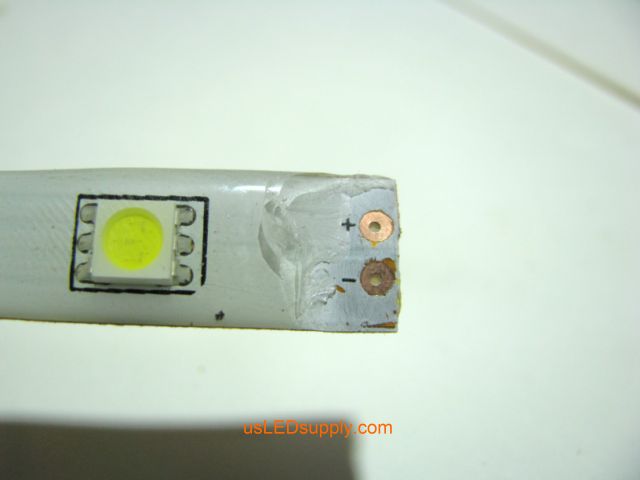

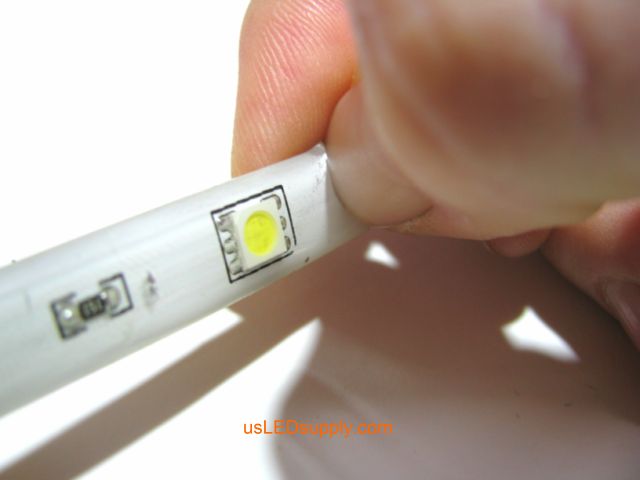

Peel off waterproof coating at the end of the single color flexible LED strip Single color flexible LED strip with coating peeled off and solder pads cleaned


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #2: For best results, clean the contacts with fine sandpaper or a wire brush.  Also, trim 1/16” off the end of the circuit board so that the connector will make better contact with the pads.

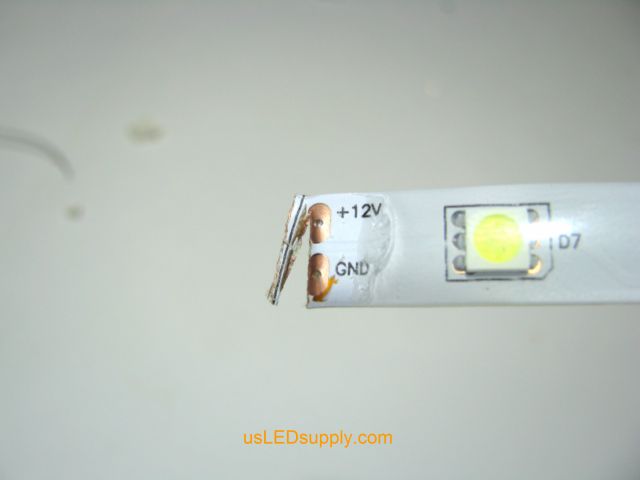

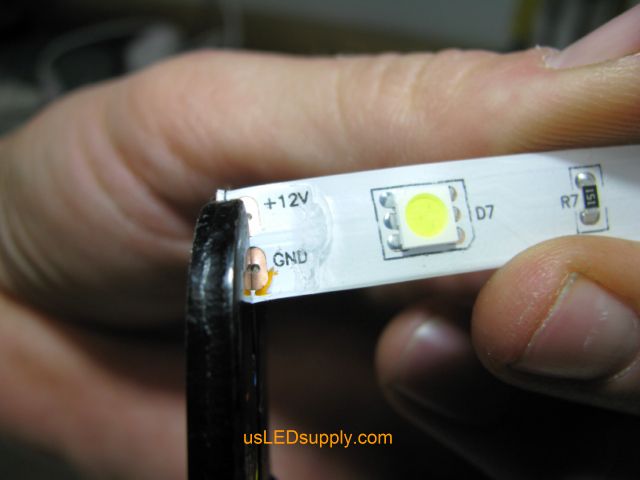

Trim 1/16 Trim 1/16


−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #3: Take the connectors and open them up by pulling the black pieces outward.

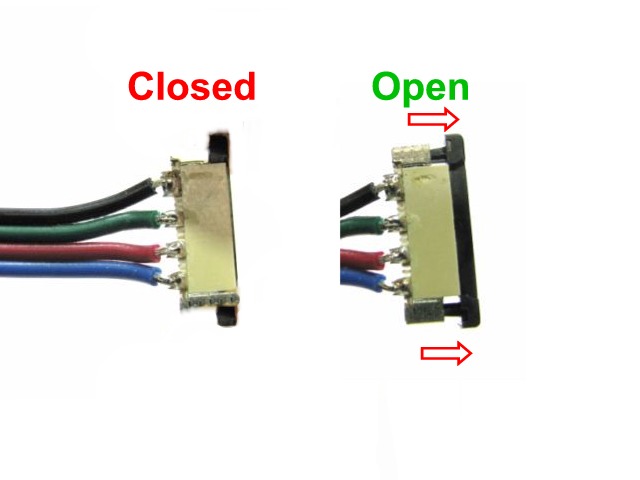

Closed and open splice connector

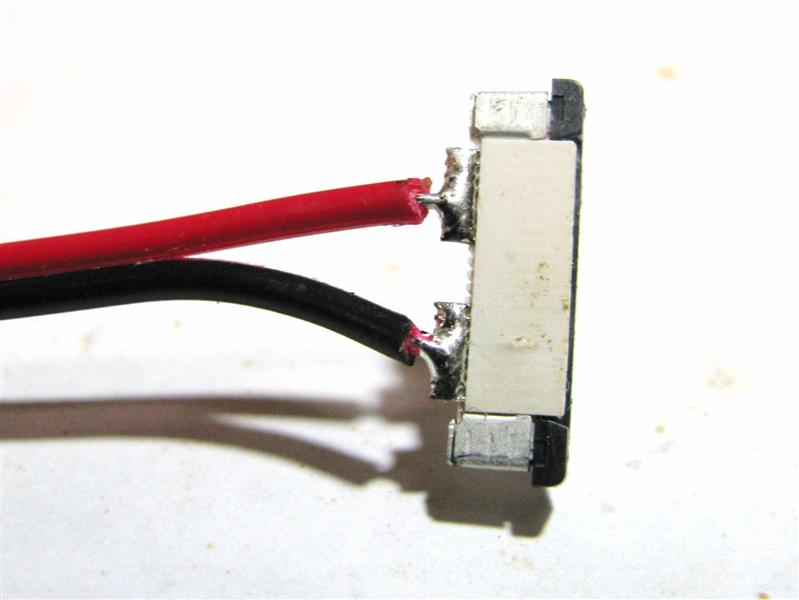

Closed single color splice connector

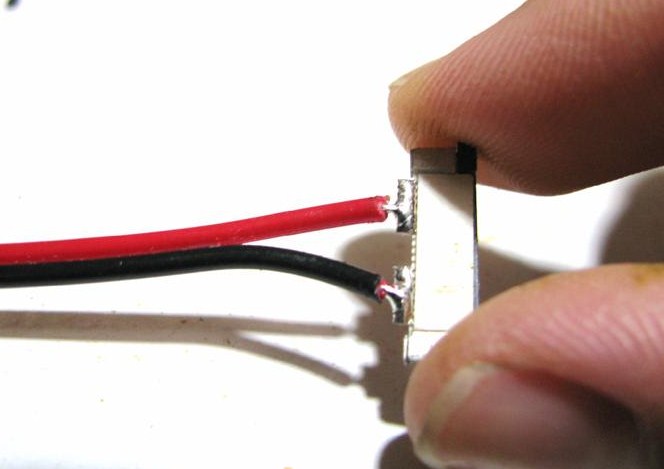

Pulling out black piece of single color splice connector to open it

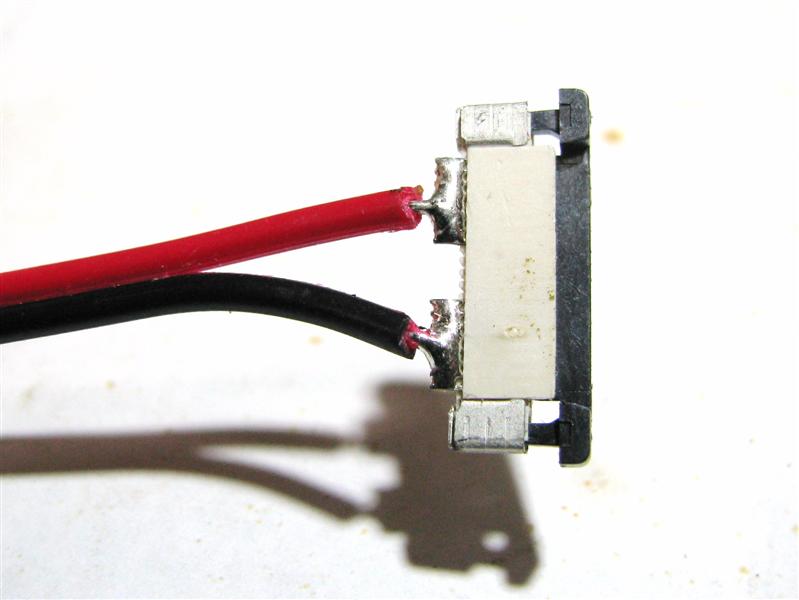

Open single color splice connector



−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #4: Insert single color  strip into connector opening, being careful to match the positive (+) and negative (-) marks on both strips.  The bottom of the flex strip should be touching the black piece.  Insert as far as possible.



−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−


Step #5: Push the black piece back in, locking the flex strip in place.

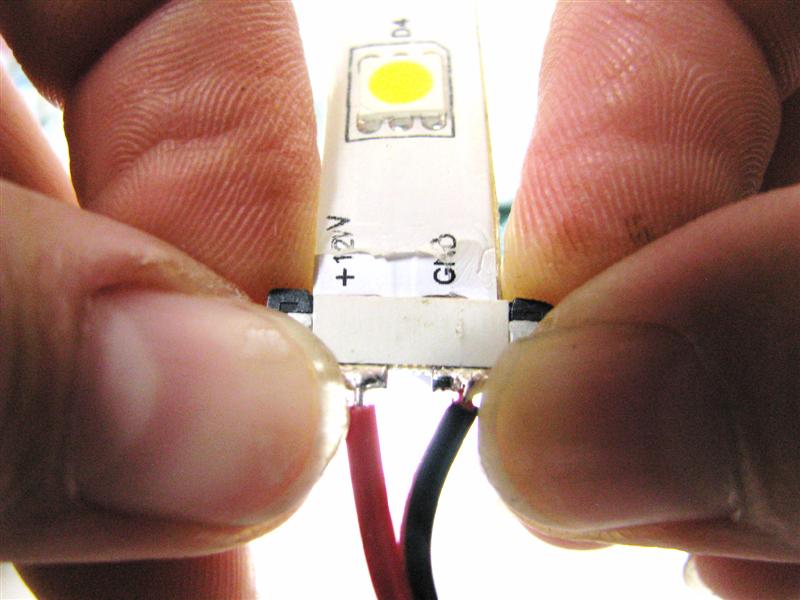

Push black piece of splice connector in to make connection Splice connector attaching wires to single color flexible LED strip



−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−

−− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −− • • −−
