Mean Well Waterproof Power Supply PFC 12v 264W 22A

Be the first to review this product

Availability: In stock

Regular Price: $200.00

Sale Price $175.00

OR

Quick Overview

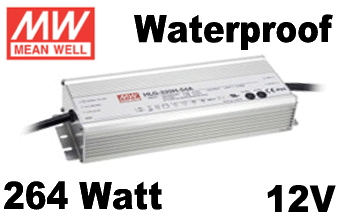

Mean Well HLG-320H-12A

Mean Well HLG-320H-12A

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Mean Well HLG-320H-12A

Details

Mean Well power supplies are some of the highest quality power supplies made.  They are great for commercial/industrial use where they will be on all the time.

IP65 design for indoor or outdoor applications.



*Input Voltage Range: 90 ~ 305VAC 127 ~ 431VDC
*Input Current: 4A @ 115VAC / 2A @ 230VAC / 1.2A @ 277VAC
*Voltage ADJ. Range: 10.8 ~ 13.5V
*Current ADJ. Range: 11 ~ 22A Can be adjusted by internal potentiometer
*Built-in active PFC function
*Efficiency Level:  (91%)
*Minimum Rated Hours Before Fail (MTBF): 157.1Khrs min
*Protections: Short circuit/Over load/Over voltage/Over temperature
*Cooling by free air convection
*Over Temp Protection type : Shut down o/p voltage, re-power on to recover
*IP65 design for indoor or outdoor applications
*UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent
*Working Temp -40C ~ +70C (Refer to output load derating curve)
*Suitable for LED lighten & moving sign applications
*Compliance to worldwide safety regulations for lighting
*100% full load burn-in test
*Damp / wet location outdoor application
*5 years warranty



Additional Information

Suggested Uses

Indoor and Outdoor Applications with heavy moisture and dust

Commercial
Industrial
Residential  where they will be on all the time or for applications where you need the best quality you can get

Product Highlights *Input Voltage Range: 90 ~ 305VAC 127 ~ 431VDC *Input Current: 4A @ 115VAC / 2A @ 230VAC / 1.2A @ 277VAC *Voltage ADJ. Range: 10.8 ~ 13.5V *Current ADJ. Range: 11 ~ 22A Can be adjusted by internal potentiometer *Built-in active PFC function *Efficiency Level: (91%) *Minimum Rated Hours Before Fail (MTBF): 157.1Khrs min *Protections: Short circuit/Over load/Over voltage/Over temperature *Cooling by free air convection *Over Temp Protection type : Shut down o/p voltage, re-power on to recover *IP65 design for indoor or outdoor applications *UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent *Working Temp -40C ~ +70C (Refer to output load derating curve) *Suitable for LED lighten & moving sign applications *Compliance to worldwide safety regulations for lighting *100% full load burn-in test *Damp / wet location outdoor application *5 years warranty
Led Color N/A
Mounting Options Other
Waterproof Rating IP-65, Suitable for dry / damp / wet locations
Voltage 120/240v
Wattage 264 Watts
Power Usage in Amps: Rated (Actual) Input Current: 3.5A @ 115VAC / 1.65A @ 230VAC
Output Power 0 ~ 22A - 264W
Connections Input/Output

A/C Input: 11" long Blue ((N),  Brown (L) and Green (GND) Wires

Output: 11"  long Red (+) and Black (-)  Wires

Power Input: Connection Type, Voltage, Amperage 11" long Blue (N), Brown (L) and Green (GND) Wires
Output Connection Type 11" long Red (+) and Black (-) Wires
Can Power/Control (xx) Feet of strip can connect up to 132' of our 12v standard output Flex-Strip
Weight / Item 4.3 lb
Product Size (L)x(W)x(H) (L) 9.92" x (W) 3.54" x (H) 1.72" in (L) 252mm x (W) 90mm x (H) 43.8mm
Warranty 5 Year
