Details

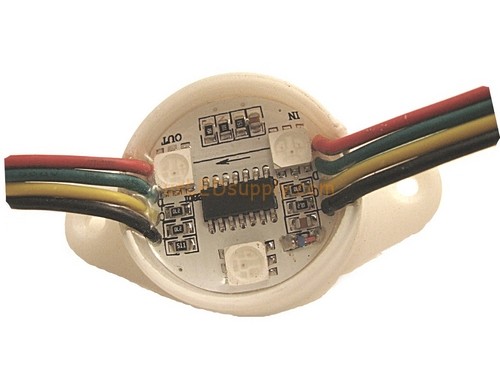

RGB Digital Point Modules Round 26" Spacing
These are the Digital modules that can be controlled with computers and other DMX/Digital Controllers or stand alone SPI Controllers. The advantage of digital modules is that you can control each section by itself so you can make chasing effects and other patterns. These color changing LED modules are very easy to use and install, They are much brighter and longer-lasting than traditional rope light.
You can order them by the peice The LED type used are the 5060 type super bright 3 in 1 SMD LEDs. There are 3 per module. They run on 12V DC. They are coated with a waterresistant coating so they can be exposed to light weather. ~ they are very easy to work with!
Details / Options
~~These RGB strips can change any color with the use of a SD Card Controller Or With DMX so you will need a controller designed to control the WS2801 chip or use DMX and a DMX to WS2801/WS2803 Converter.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 15x of these modules) or the 48 watt Power Supply(can control up to 64x of these modules) the 72 watt (can control up to 100x of these modules)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
Additional Information
| Suggested Uses |
Video Walls |
|---|---|
| Led Color | RGB |
| Length Of Strip | (modules are every +/- 26" on center) or if you order 20x they are x' (x") for a full section |
| # of LEDs / Meter | 5x modules / foot |
| Type of LED | 5060 SMD |
| Viewing Angle (Degrees) | 120 deg |
| Mounting Options | Double Sided Tape, Ceiling Mount, Wall Mount |
| Waterproof Rating | IP-68 (can get wet but not recommended for under water) |
| Voltage | 12v |
| Wattage | .72 watts per module |
| Number Of Chanels | 3 ch each module or each 20 module section will use 60 (20x RGB) DMX channels |
| Connections Input/Output |
Red = 12v (+) |
| Max Connected Strip Length From Each Power Connection | With the digital strips you will need a wire running from the power supply to the start of each section |
| Controllable By | DMX to WS2801 Decoder or Digital Controller |
| Product Size (L)x(W)x(H) | The diameter of the round case is 1.18 in (30 mm) or 2 in (50mm) if you count the wings |
| Strip Width | base width 1.18" (30 mm) |
| Strip Thickness | high .43" (11.12 mm) |
| Comes With | if you order individual modules they will have +/- 13" wire on both sides of the module |
| Available Options | 4", 6", 16", 26" spacing |
