12V RGB Flexible LED Strip 16' Roll (High Output 60/M 300/Roll) Un-Coated (Non waterproof)

Be the first to review this product

Availability: In stock

Regular Price: $135.00

Sale Price $75.00

OR

Quick Overview

RGB Flexible Led Strip Un-Coated

For most applications we recommend our standard Flex Strips with the silicone coating

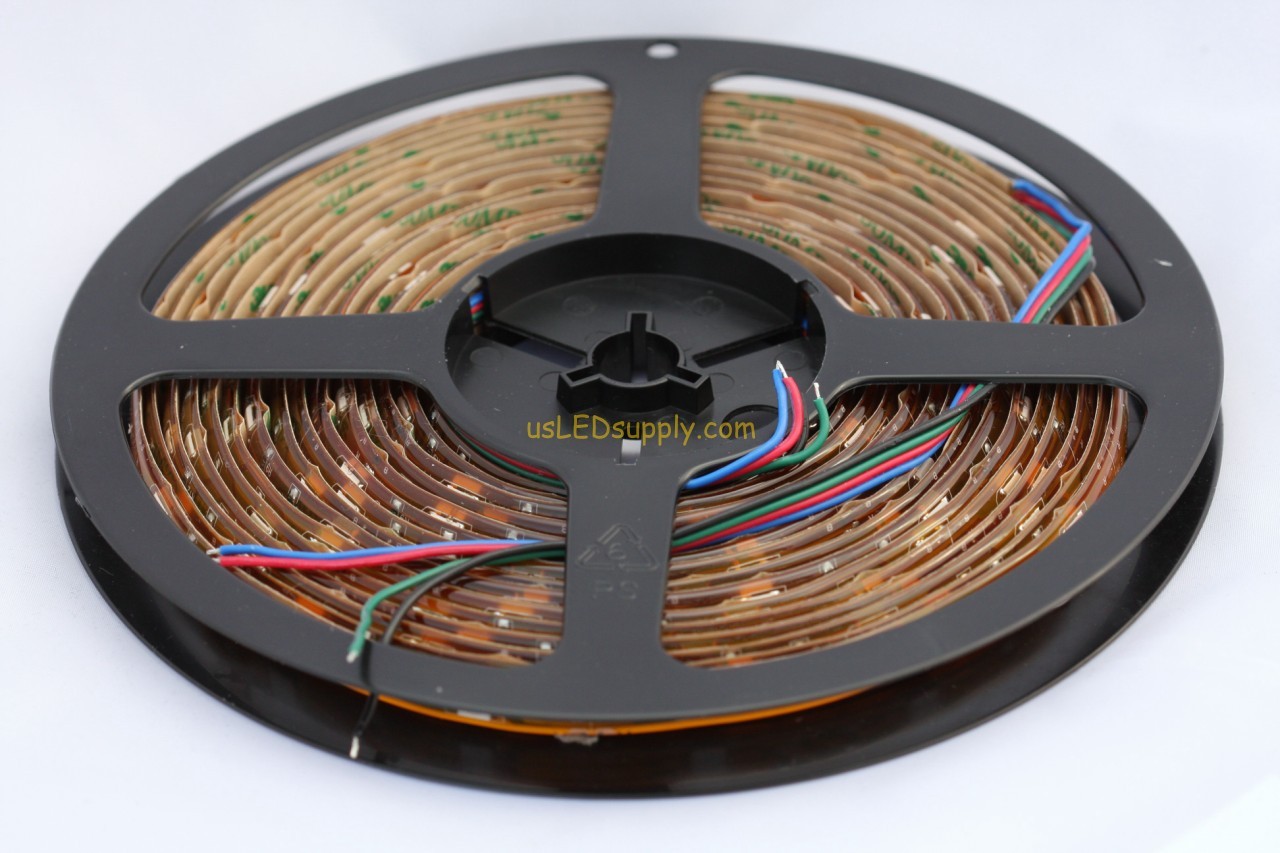

12V RGB Flexible LED Strip 16' Roll

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Color Changing 12V RGB Flexible LED Strip
  • Self Stick Backing of 12V RGB Flexible LED Strip
  • 12V RGB Flexible LED Strip 16' Roll
  • Specifications for 12V RGB Flexible LED Strip
  • Wiring Diagram for 12V RGB Flexible LED Strip
  • Red of color changing 12V RGB Flexible LED Strip 30/M
  • Turquoise of color changing 12V RGB Flexible LED Strip 30/M
  • Purple of color changing 12V RGB Flexible LED Strip 30/M
  • White of color changing 12V RGB Flexible LED Strip 30/M
  • Green of color changing 12V RGB Flexible LED Strip 30/M
  • Blue of color changing 12V RGB Flexible LED Strip 30/M

Details

RGB Flexible LED Strip Un-Coated
These color changing LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.  they are cuttable every 2".


Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with 6" wire on each end).  The LED type used are the 5060 type super bright 3 in 1 SMD LEDs.  There are 300 per 16' roll.  They run on 12V DC.   ~ they are very easy to work with!


Details / Options

~~These RGB strips can change any color with the use of a controller (please look through our RGB Remote Controllers and DMX Controllers).  For these RGB Strips, we can pre-solder the RGB 4-Pin Connector onto the strip (if you are using an IR controller), which would then plug into our power supplies or your 12V source.
~~They can be dimmed 0-100% which is a feature on most of our RGB controllers.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 3' of this High Output flexible LED strip) or the 48 watt Power Supply(can control up to 12' of this High Output flexible LED strip)  the 72 watt (can control up to 18' of this High Output flexible LED strip)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
~~Comes with a white backing like our Warm White flexible LED strips.
To watch a video of 1x 16' roll of the 30/m (these will be twice as bright) flexible LED strip controlled by our 24-key RGB IR controller Click Here

Additional Information

Suggested Uses

Signs,
Custom Projects

Product Highlights High Output Strip, Great for indoor locations or enclosed sign boxes. these are easy to cut and solder as there is no waterproof coating to peel off
Led Color RGB
Length Of Strip 5 Meters/Reel 16'-4" long rolls with 6" of wire on each end
Cuttable Every 50mm (1.97")
# of LEDs / Meter 60
# of LEDs / Reel 300x 5060 SMD Leds / Reel
Type of LED 5060 SMD
Viewing Angle (Degrees) 120 deg
Mounting Options Double Sided Tape, Ceiling Mount, Wall Mount
Waterproof Rating Un-Coated
Voltage 12v
Wattage 4 Per Foot
Power Usage Watts / Foot: Rated (Actual) 4-5 Watts/Foot
Connections Input/Output this will not work with our Solder-less Splice Connectors
Max Connected Strip Length From Each Power Connection at full brightness (white) we recommend you only connect 1 roll from each power connection for accent lighting say about 30% you can connect 5x rolls end to end
Dimmable Range / Steps 0-100% via PWM
Strip Width .48" (12.07mm)
Strip Thickness .14" (3.6mm)
Comes With 6" wire on both ends
Available Options We can get this in

(12v or 24v)

(150 or 300 led/m)

(Waterproof ip-65 ip-66 ip-67 ip-68)

(side or top emitting led)
