Mean Well Waterproof Power Supply PFC 24v 320W 13.34A

Be the first to review this product

Availability: In stock

Only 4 left

$175.00
OR

Quick Overview

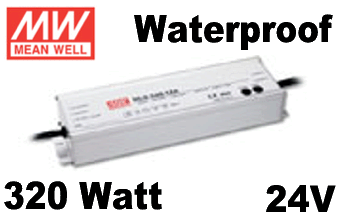

Mean Well HLG-320H-24

Mean Well HLG-320H-24

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Mean Well HLG-320H-24

Details

Mean Well power supplies are some of the highest quality power supplies made.  They are great for commercial/industrial use where they will be on all the time.

IP67 design for indoor or outdoor applications.



*Input Voltage Range: 90 ~ 305VAC 127 ~ 431VDC
*Input Current: 4A @ 115VAC / 2A @ 230VAC / 1.2A @ 277VAC
*Voltage ADJ. Range: 21 ~ 26V
*Built-in active PFC function
*Efficiency Level:  (94%)
*Minimum Rated Hours Before Fail (MTBF): 157.1Khrs min
*Protections: Short circuit/Over load/Over voltage/Over temperature
*Cooling by free air convection
*Over Temp Protection type : Shut down o/p voltage, re-power on to recover
*IP67 design for indoor or outdoor applications
*UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent
*Working Temp -40C ~ +70C (Refer to output load derating curve)
*Suitable for LED lighten & moving sign applications
*Compliance to worldwide safety regulations for lighting
*100% full load burn-in test
*Damp / wet location outdoor application
*5 years warranty



Additional Information

Suggested Uses

Indoor and Outdoor Applications with heavy moisture and dust

Commercial / Industrial
Residential  where they will be on all the time or for applications where you need the best quality you can get

Product Highlights *Input Voltage Range: 90 ~ 305VAC 127 ~ 431VDC *Input Current: 4A @ 115VAC / 2A @ 230VAC / 1.2A @ 277VAC *Voltage ADJ. Range: 21 ~ 26V *Built-in active PFC function *Efficiency Level: (94%) *Minimum Rated Hours Before Fail (MTBF): 157.1Khrs min *Protections: Short circuit/Over load/Over voltage/Over temperature *Cooling by free air convection *Over Temp Protection type : Shut down o/p voltage, re-power on to recover *IP67 design for indoor or outdoor applications *UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent *Working Temp -40C ~ +70C (Refer to output load derating curve) *Suitable for LED lighten & moving sign applications *Compliance to worldwide safety regulations for lighting *100% full load burn-in test *Damp / wet location outdoor application *5 years warranty
Led Color N/A
Mounting Options Other
Waterproof Rating IP-67, Suitable for dry / damp / wet locations
Voltage 120/240v
Wattage 320 Watts
Power Usage in Amps: Rated (Actual) Input Current: 3.5A @ 115VAC / 1.65A @ 230VAC
Output Power 0 ~ 13.34A - 320W
Connections Input/Output

A/C Input: 11" long Blue ((N),  Brown (L) and Green (GND) Wires

Output: 11"  long Red (+) and Black (-)  Wires

Power Input: Connection Type, Voltage, Amperage 11" long Blue (N), Brown (L) and Green (GND) Wires
Output Connection Type 11" long Red (+) and Black (-) Wires
Can Power/Control (xx) Feet of strip can connect up to 150' of our 24v standard output Flex-Strip
Weight / Item 4.3 lb
Product Size (L)x(W)x(H) (L) 9.92" x (W) 3.54" x (H) 1.72" in (L) 252mm x (W) 90mm x (H) 43.8mm
Warranty 5 Year
