24V Warm White Flexible LED Strip 16' Roll (IP-65) (High Output) 60/M 300/Roll 2400k-2600k

Be the first to review this product

Availability: In stock

Regular Price: $170.00

Sale Price $85.00

OR

Quick Overview

24v Warm White Flexible Led Strip High Output 2400k-2600k

24V Warm White Flexible LED Strip 16' Roll (IP-65) (High Output) 60/M 300/Roll 2400k-2600k

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

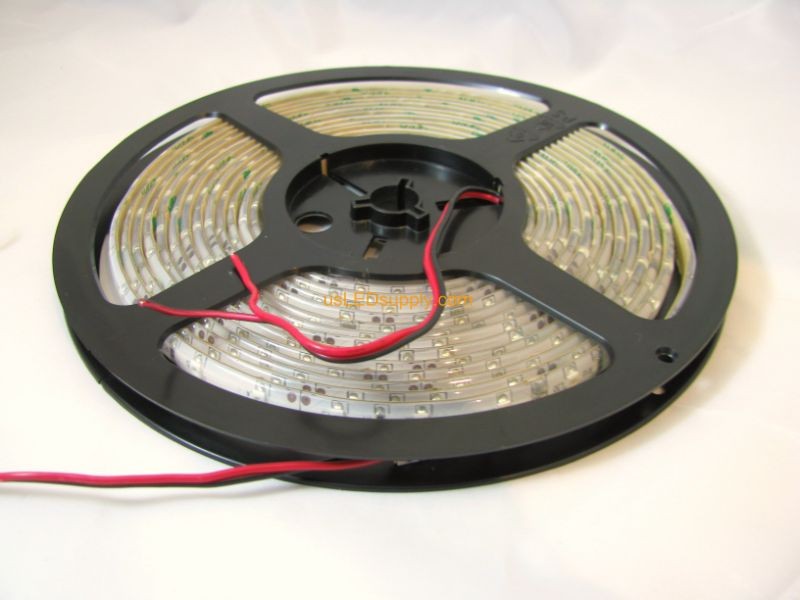

  • Warm White Led Flex Strip High Output 60/M 300/Reel 2400k-2600k

Details

Warm White Flexible LED Strip
These LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-4"  with 6" wire on each end).  The LED type used are the 5050 type super bright 3 in 1 SMD LEDs.  There are 300 per 16' roll.  They run on 24V DC.


Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
~~The 24v 48 watt Power Supply (can control up to 12' of flexible LED strip) ~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).



Additional Information

Suggested Uses

Signs,
Custom Projects

Product Highlights High Output
Led Color Warm White 2400k-2600k
Length Of Strip 5 Meters/Reel 16'-4" long rolls with 6" of wire on each end
Cuttable Every 100mm (3.96")
# of LEDs / Meter 60
# of LEDs / Reel 300 5050 SMD Leds / Reel
Type of LED 5050 SMD
Viewing Angle (Degrees) 120 deg
Mounting Options Double Sided Tape, Ceiling Mount, Wall Mount
Waterproof Rating Water Resistant IP-65
Voltage 24v
Wattage 4 Per Foot
Power Usage in Amps: Rated (Actual) Rated 3A/Roll
Recommended Power Supply Size Figure 4 Watts per foot of led strip
Max Connected Strip Length From Each Power Connection at full brightness we recommend you only connect 2 roll from each power feed wire and for accent lighting say about 20% you can connect 5x rolls end to end
Dimmable Range / Steps 0-100% via PWM
Strip Backing Color White Backing
Lumens 218/Ft 3500/Reel
Strip Width .48" (12.07mm)
Strip Thickness .14" (3.6mm)
Comes With 6" wire on both ends
Available Options We can get this in

(12v or 24v)

(150 or 300 led/m)

(Waterproof ip-65 ip-66 ip-67 ip-68)

(side or top emitting led)
