RGB LED Amplifier 5A/Ch

Be the first to review this product

Availability: In stock

Regular Price: $55.00

Sale Price $48.00


Quick Overview

LT-3060 constant voltage power repeater

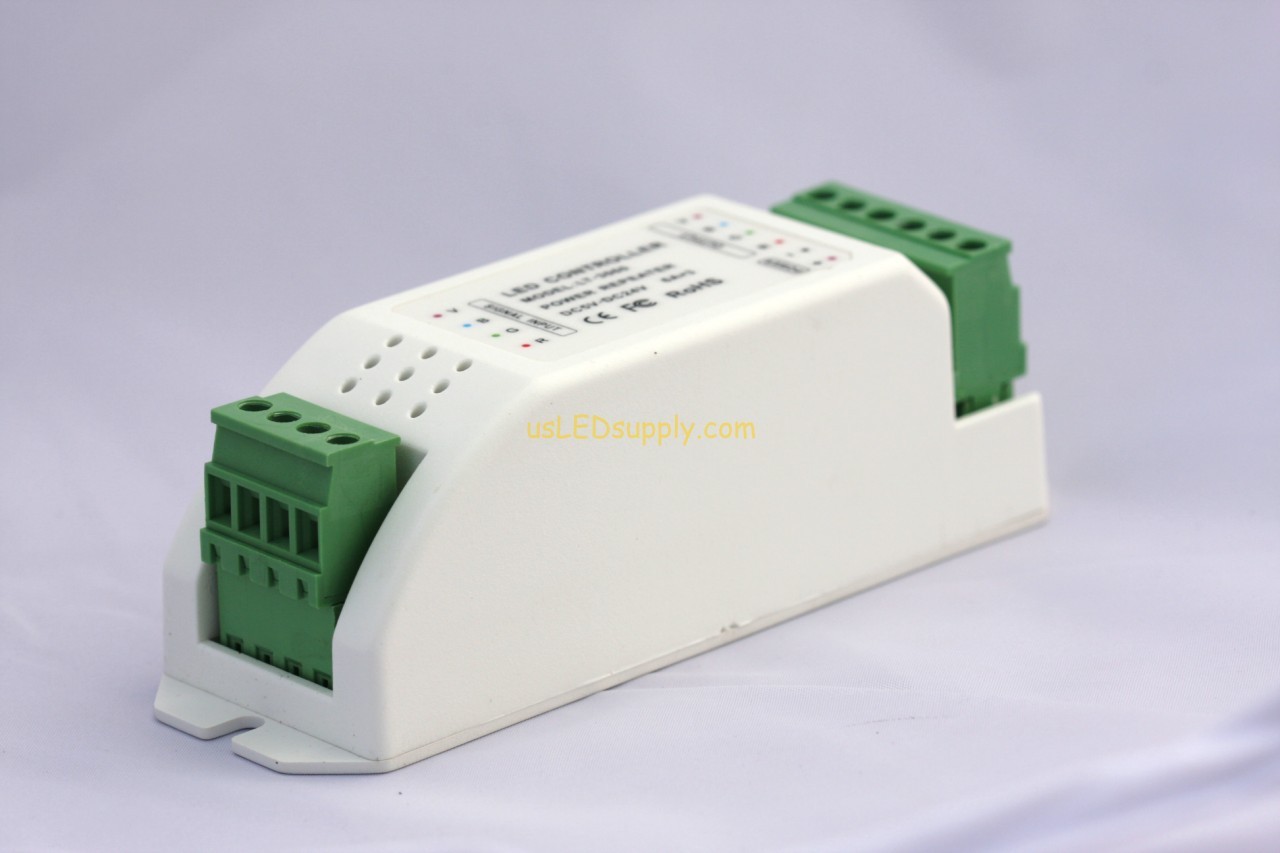

RGB LED Amplifier 5A/Ch

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB LED Amplifier 5A/Ch
  • RGB LED Amplifier 5A/Ch
  • Label on RGB LED Amplifier 5A/Ch
  • RGB LED Amplifier 5A/Ch


Constant voltage power repeater

LED Power Repeater

LED power repeater is suitable for all of our RGB controllers to expand power output,

supports PWM (Pulse-Width-Modulation) control,

you can stack amps (2x repeaters connected = 10A/Ch)

you just connect the output of our RGB Controller (DMX, Touch, RF or IR) to the input of this controller and connect another power supply then you can connect and control up to 5A/Ch of output (5x rolls of our RGB)

 For Amplifer/Controller Sizing Chart Click Here

 Power supply is not included; we always suggest using switching mode power supplies for any application that involves Led lighting.

Input Power DC5VDC24V
  Output Current 5A×3CH
  Output Power 75W(5V) 180W(12V) 360W(24V)
  Product Dimension L121×W39×H39(mm)
  Casing Dimension L123×W42×H42(mm)
  Weight 0.3kg


Additional Information

Led Color N/A
Mounting Options Wall Mount, Other
Voltage 12/24v
Wattage 5A/Ch
Power Input: Connection Type, Voltage, Amperage Screw Terminal
Output Connection Type Screw Terminal
Can Power/Control (xx) Feet of strip can connect up to 80' of our 12v RGB Flex-Strip
Controllable By Any of our Controllers
Manual http://www.usledsupply.com/LED/Images/Manuals/RGB%20CV%20Amp%20LT-3060%20.pdf
Product Size (L)x(W)x(H) L121×W39×H39(mm)
Suggested Accessories Male Power Connector (for connecting to our power supplies)
Available Options (may not be in stock) Common Cathode type is also available
Available Options We can also get these in a constant current version 350mA and 700mA
