RGB DMX Decoder 4A/Ch

Be the first to review this product

Availability: In stock

$50.00
OR

Quick Overview

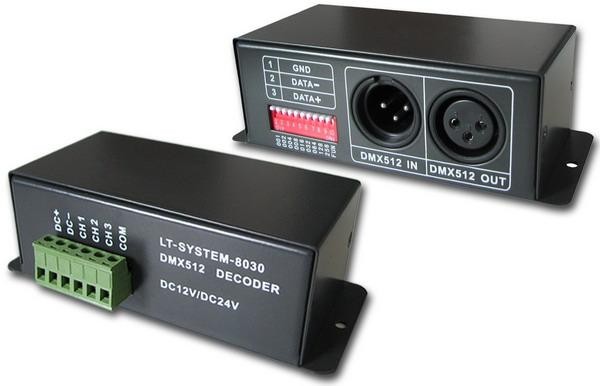

8030 DMX RGB Dimmer/Decoder for Rope Lights / Flex Strips

RGB DMX Decoder

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB DMX Decoder
  • Wiring Diagram for RGB DMX Decoder

Details

Decoder is designed to convert the universal standard DMX512/1990 signal into analog signal to control our RGB Flex Strips, it allows user to choose 1~3 output channel, with 256-level brightness control. This decoder connects to and can be controlled by DMX Light Boards, our DMX Touch Controllers or other DMX Controllers/DMX Computer Interfaces allowing its user to create endless possibilities of light shows.



Specifications:
1.) Input Power:DC5V--DC24V
2.) Output Current:4A per channel(total current: 12A)
3.) Output Power:5V 60W / 12V 144W / 24V 288W
4.) Brightness Control :256 256 levels
5.) DMX Address:3 channels
6.) DMX512 Standard:DMX512/1990
7.) Working temperature -30℃~65℃
8.) Product Dimension:125×52×40(mm)
9.) Package Size:135×70×50(mm)
10.) Weight:0.3KG


Ⅱ. Basic Functions
1.) 256 steps of smooth brightness adjusting.
2.) User addressable DMX interface-with easy dip-switch settings and testing modes.
3.) High power output, 3 output channels.
4.)DMX pass through and in/out connector for daisy chain configurations.



Includes solder on Male+Female DMX 3pin Jacks







Additional Information

Product Highlights

It has built in testing or stand alone features. Just turn on the last dip switch labeled (fun) to enable stand alone mode (when you don't have a DMX signal or for testing). By using different combinations of the dip switches, you can set the color or fade/flash modes and adjust the speed.

Led Color RGB
Mounting Options Wall Mount, Other
Voltage 5v-24v
Wattage 4A/Ch
Number Of Chanels 3
Rated Amps / Ch 4A/Ch
Recommended Power Supply Size 12v 12-150 Watt / 1-12 Amp Depending on connected strip length
Connections Input/Output

DMX Connections
1x 3-Pin XLR Input
1x 3-Pin XLR Output

Output Connections (To Strips)
Ch 1 = Red     (red wire)
Ch 2 = Green (green wire)
Ch 3 = Blue    (blue or white wire)
Com =  +         (black wire)

Power Input: Connection Type, Voltage, Amperage (Plug-able Screw Terminal Strip) DC5V-DC24V (+)/(-) note for 12v strips use 12v input
Output Connection Type (Plug-able Screw Terminal Strip)
Can Power/Control (xx) Feet of strip Up to 64' of Standard RGB Flex Strip or 4A/Ch
Controllable By DMX or built in Fun/Test Mode Switch
Number Of Control Modes Full Control with DMX or 7 Static, 1 Fade and 1 Flash in Fun/Test Mode
Manual http://www.usledsupply.com/LED/Images/Manuals/DMX CV LT-8030 Decoder.pdf
Steps of Speed Adjustment Full Control with DMX or 7 Steps in Fun/Test Mode
Dimmable Range / Steps 0-100% via DMX in 256 steps
Wire Color Code Chart

Output Connections

  • Ch 1 = Red     (red wire)
  • Ch 2 = Green (green wire)
  • Ch 3 = Blue    (blue/white wire)
  • Com =  +         (black wire)
Product Size (L)x(W)x(H) (L) 4-1/4" (5-1/8" Base) x(W) 2-1/2" x(H)1-5/8" in
Comes With Includes solder on Male+Female DMX 3pin Jacks
Suggested Accessories

Female Barrel Connector for easy connection to out Power Supplies
Control Cable for connecting to distant Flex Strips

Available Options

4x Chanel Version for RGBW or RGBA or Custom Single Color Applications 4A/Ch
We can coat circuit board with a water resistant coating for outdoor use.
Constant Current 350 or 700mA version for driving High Power Star type emitters
