RGB LED Amplifier 8A/Ch

Be the first to review this product

Availability: Out of stock

Regular Price: $55.00

Sale Price $50.00

Quick Overview

LT-390 constant voltage power repeater

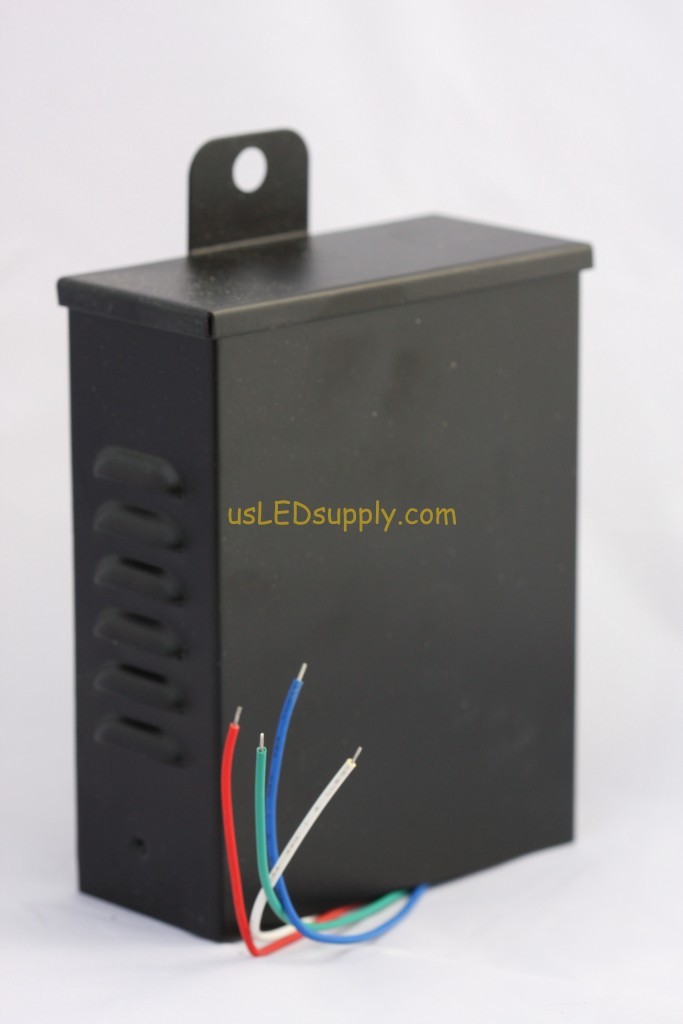

RGB LED Amplifier 8A/Ch

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB LED Amplifier 8A/Ch
  • RGB LED Amplifier 8A/Ch
  • RGB LED Amplifier 8A/Ch

Details

This item has been replaced by a newer version
http://www.usledsupply.com/shop/rgb-amplifier-8a.html



RGB LED Amplifier 8A/Ch

Constant Voltage Power Repeater is suitable for all of our RGB controllers to expand power output.
~LT-390 Constant voltage power repeater
~Supports PWM (Pulse Width Modulation) control
~You can stack amps (2x repeaters connected = 16A/Ch)
~Input Power:  DC12V ~ DC24V
~Output Power: 300W (12V)  600W (24V)
~Product Dimension: L135 x W95 x H55 mm

You can just connect the output of our RGB Controller (DMX or IR) to the input of this controller and connect another power supply.  Then, you can connect and control up to 8A/Ch of output (8x rolls of our RGB flexible LED strip).

For Amplifier/Controller Sizing Chart Click Here

Power supply is not included; we always suggest using switching mode power supplies for any application that involves LED lighting.



Additional Information

Led Color N/A
Mounting Options Wall Mount, Other
Voltage 12/24v
Wattage 8A/Ch
Manual http://www.usledsupply.com/LED/Images/Manuals/RGB CV Amp LT-390 8A .pdf
Available Options We can also get these in a constant current version 350mA and 700mA
