RGB RF Remote Controller 4A 8x Key

Be the first to review this product

Availability: In stock

Regular Price: $35.00

Sale Price $20.00

Quick Overview

.

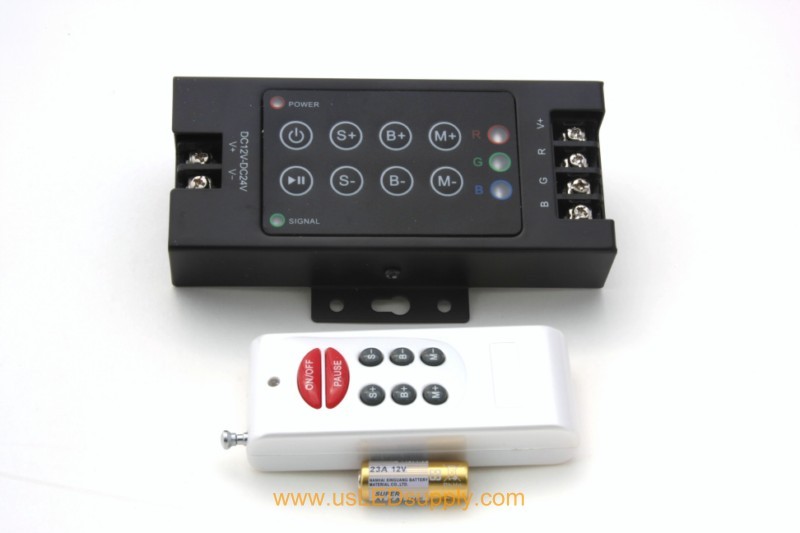

RGB RF Remote Controller 4A 8x Key

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

* Required Fields

Regular Price: $35.00

Sale Price $20.00

Details

RGB Flex Strip Controller (this controller has lots of options and has a RF remote so it can go threw walls)

4A/Ch  48W/Ch (can control 64' of our 12v RGB Flex-Strip)

Input:  screw terminals for easy connection to our male barrel plug or striped power supply wires

Output:  screw terminals for easy connection to our RGB Flex Strips or control cable

You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip)

Supports PWM (Pulse-Width-Modulation) Control 0-100% Dimming / Full Color Control

Full Range Dimming Control

can be used with amplifiers to control more then 4x reel (5M) of RGB Flex Strip

for instructions on connecting to or from this controller or any of our other products visit our How To Install section

the brightness is adjustable in 256x steps
the speed is adjustable in 100x steps

25 Multi Mode Controller

01 Static Red                  (Brightness is Adjustable)
02 Static Blue                  (Brightness is Adjustable)
03 Static Purple              (Brightness is Adjustable)
04 Static Green               (Brightness is Adjustable)
05 Static Yellow              (Brightness is Adjustable)
06 Static Cyan                 (Brightness is Adjustable)
07 Static White                (Brightness is Adjustable)
08 Three Color Flash     (Brightness and Speed are Adjustable)
09 Seven Color Flash    (Brightness and Speed are Adjustable)
10 Three Color Fade      (Speed is Adjustable)
11 Seven Color Fade     (Speed is Adjustable)
12 Three Color Running (Brightness and Speed are Adjustable)
13 Red Flash                   (Brightness and Speed are Adjustable)
14 Blue Flash                   (Brightness and Speed are Adjustable)
15 Purple Flash               (Brightness and Speed are Adjustable)
16 Green Flash                (Brightness and Speed are Adjustable)
17 Yellow Flash                (Brightness and Speed are Adjustable)
18 Cyan Flash                  (Brightness and Speed are Adjustable)
19 White Flash                 (Brightness and Speed are Adjustable)
20 Red/Blue Fade            (Speed is Adjustable)
21 Blue/Green Fade         (Speed is Adjustable)
22 Green/Red Fade          (Speed is Adjustable)
23 Fade out and in            (Speed is Adjustable)
24 Random Flash             (Speed is Adjustable)
25 Auto cycles 1-24           (Speed is Adjustable brightness on some modes)

uses standard 12v doorbell battery in remote control



Additional Information

Product Highlights

Similar to our 6key but with pause and mode up and down

Led Color RGB
Mounting Options Wall Mount
Voltage 12v
Wattage 48
Power Rating Max Amps 4A/Ch
Output Power 12A 192 Watts Total all channels
Number Of Chanels 3
Rated Amps / Ch 4A/Ch
Power Input: Connection Type, Voltage, Amperage Screw Terminal 12v DC
Output Connection Type Screw Terminal
Can Power/Control (xx) Feet of strip Can control 64' of our 12V RGB Flex Strip.
Controllable By RF Remote (can go through walls) 8x button
Number Of Control Modes 25 Modes
Mode/Button Decription

01 Static Red                  (Brightness is Adjustable)
02 Static Blue                  (Brightness is Adjustable)
03 Static Purple              (Brightness is Adjustable)
04 Static Green               (Brightness is Adjustable)
05 Static Yellow              (Brightness is Adjustable)
06 Static Cyan                 (Brightness is Adjustable)
07 Static White                (Brightness is Adjustable)
08 Three Color Flash     (Brightness and Speed are Adjustable)
09 Seven Color Flash    (Brightness and Speed are Adjustable)
10 Three Color Fade      (Speed is Adjustable)
11 Seven Color Fade     (Speed is Adjustable)
12 Three Color Running (Brightness and Speed are Adjustable)
13 Red Flash                   (Brightness and Speed are Adjustable)
14 Blue Flash                   (Brightness and Speed are Adjustable)
15 Purple Flash               (Brightness and Speed are Adjustable)
16 Green Flash                (Brightness and Speed are Adjustable)
17 Yellow Flash                (Brightness and Speed are Adjustable)
18 Cyan Flash                  (Brightness and Speed are Adjustable)
19 White Flash                 (Brightness and Speed are Adjustable)
20 Red/Blue Fade            (Speed is Adjustable)
21 Blue/Green Fade         (Speed is Adjustable)
22 Green/Red Fade          (Speed is Adjustable)
23 Fade out and in            (Speed is Adjustable)
24 Random Flash             (Speed is Adjustable)
25 Auto cycles 1-24           (Speed is Adjustable brightness on some modes)

Steps of Speed Adjustment 100x steps
Dimmable Range / Steps 0-100% in 256x steps
Product Size (L)x(W)x(H) (Receiver L121ΧW75ΧH25 mm) (Remote L90ΧW38ΧH17mm)
Comes With Reciver, Remote and Battery
Suggested Accessories Male power connector for connecting to our power supplies
Available Options (may not be in stock) with built in mic for audio flash mode
Available Options can get in 6/12/24v
