Product Description

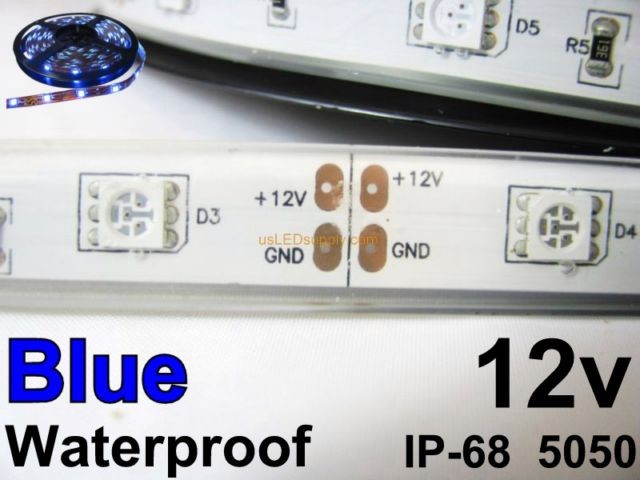

Blue Waterproof Flexible LED Strip
These blue LED strips are very flexible, bright, and easy to install!
Each roll of flexible LED strip is 16' long (actually 16'-5" with 6" wire on each end). The LED type used are the 5050 type super bright 3 in 1 LEDs. There are 150 per 16' roll. They run on 12V DC. The waterproof rating is IP-68, which means that these flexible LED strips can be completely submerged in water. You can cut these strips every 3.94" ~ they are very easy to work with!
Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~For $1.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 5' of flexible LED strip) or 48 watt (can control up to 24' of flexible LED strip) are recommended~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
Additional Information
| Suggested Uses | These Flexible Strips Are Great For |
| Led Color | Blue |
| Length Of Strip | 5 Meters/Reel 16'-4" long rolls with 6" wire on each end |
| Cuttable Every | 100mm (3.94") |
| # of LEDs / Meter | 30 |
| # of LEDs / Reel | 150 |
| Type of LED | Super Bright 3 in 1 Blue 5050 SMD |
| Viewing Angle (Degrees) | 120 |
| Mounting Options | Silicone Adhesive or Zip Ties, Car/Truck/Motorcycle/Boat |
| Waterproof Rating | Waterproof IP-68 |
| Voltage | 12v |
| Wattage | 32 |
| Power Usage in Amps: Rated (Actual) | Rated 2.5A/Roll |
| Recommended Power Supply Size | 1-5 Feet = 1A 12W 12v DC Power Supply |
| Max Connected Strip Length From Each Power Connection | at full brightness (white) we recommend you only connect 2 rolls from each power connection for accent lighting say about 25% you can connect 10x rolls end to end |
| Dimmable Range / Steps | 0-100% via PWM |
| Wire Color Code Chart | Red = 12v (+) Black = 12v (-) |
| Strip Backing Color | White or Gold |
| Product Size (L)x(W)x(H) | (5m)x(13.3)x(6.6) mm |
| Strip Width | .53" (13.3mm) |
| Strip Thickness | .25" (6.6mm) |
| Available Options (may not be in stock) | High Brightness 60 LEDs/Meter 300/Reel |
