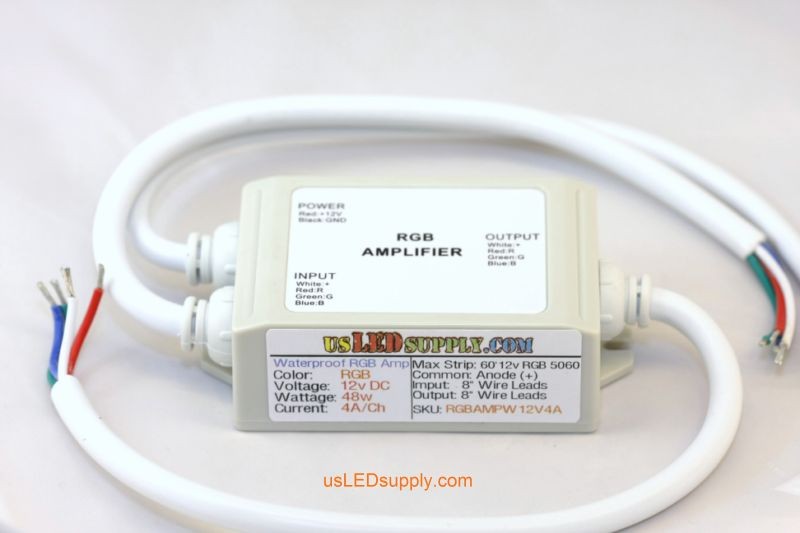

RGB Amplifier 4A/Ch Waterproof
This LED amplifier is a constant voltage power repeater and works with 12V DC. It is suitable for all of our RGB controllers to expand power output.
~~8" Wire Leads in/out
~~You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip).
~~Supports PWM (Pulse-Width-Modulation) control for 0-100% Dimming and Full Color Control.
~~You can stack amplifiers (2x repeaters connected = 8A/Ch) (4x repeaters connected = 16A/Ch)
Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller. Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output.
To view Amplifier/Controller Sizing chart Click Here.
Additional Information
Led Color | N/A |
---|---|
Mounting Options | Other |
Voltage | 12v |
Wattage | 4A/Ch |
