Details

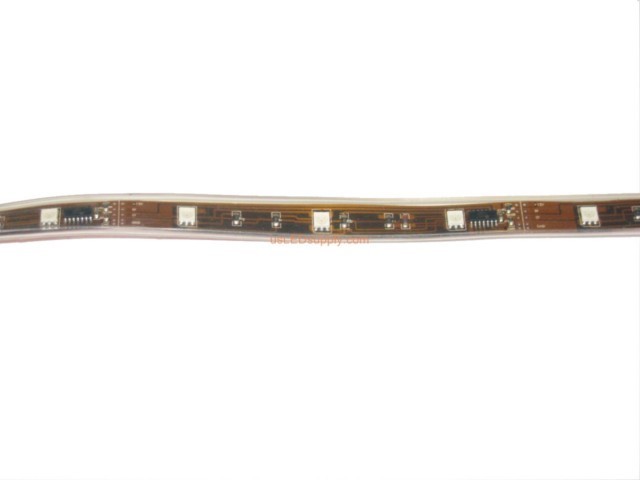

RGB Flexible Digital LED Strip
These are the Digital strips that can be controlled with computers and other DMX/Digital Controllers. The advantage of digital strips is that you can control each 4.9" section by itself so you can make chasing effects and other patterns. These color changing LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light.
The LED type used are the 5060 type super bright 3 in 1 SMD LEDs. There are 120 per 16' roll. They run on 12V DC. The are not coated with a waterproof coating so they are for indoor use only. ~ they are very easy to work with!
Details / Options
~~These RGB strips can change any color with the use of a controller/DMX so you will need a controller designed to control the 6803 chip or use standard DMX and a DMX to LPD6803/D705 Converter.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 6' of this flexible LED strip) or the 48 watt Power Supply(can control up to 24' of this flexible LED strip) the 72 watt (can control up to 36' of this flexible LED strip)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
~~Comes with a copper backing like our waterproof flexible LED strips.
For a video of these strips in action Click Here
Additional Information
| Suggested Uses |
Video Walls |
|---|---|
| Led Color | RGB |
| Cuttable Every | 4.9" |
| # of LEDs / Meter | 24 |
| Type of LED | 5060 SMD |
| Viewing Angle (Degrees) | 120 deg |
| Mounting Options | Double Sided Tape, Ceiling Mount, Wall Mount |
| Waterproof Rating | These aren't coated (Un-Coated) |
| Voltage | 12v |
| Wattage | 2 Per Foot |
| Number Of Chanels | each 4.9" section will use 3 DMX channels (1x RGB) |
| Connections Input/Output | this will not work with our Solder-less Splice Connectors |
| Controllable By | DMX 6803 Decoder or Digital Controller |
| Strip Backing Color | Copper Backing |
| Strip Width | bare strip (.5") |
| Strip Thickness | .16" (3.6mm) |
