12V RGB Flexible LED Strip 16’ Roll (5060 30/M 150/Roll) Un-Coated (Non waterproof)

Be the first to review this product

Availability: In stock

Regular Price: $70.00

Sale Price $50.00

Quick Overview

This is for our Bare Flex Strip (not coated) used for indoor and custom applications.

For most applications we recommend our standard Flex Strips with the silicone coating

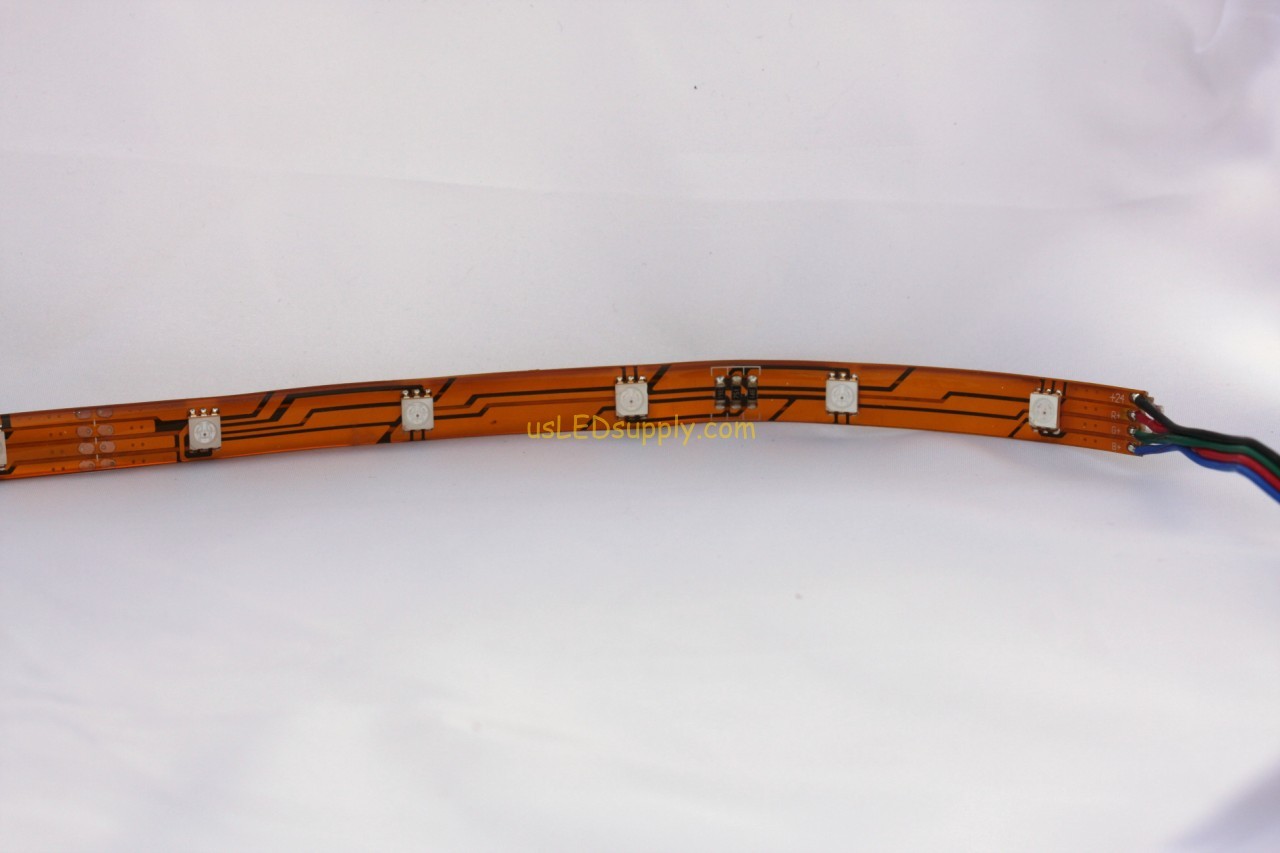

12V RGB Flexible LED Strip 16’ Roll Uncoated (Non waterproof)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 12V RGB Flexible LED Strip 16’ Roll Uncoated (Non waterproof)
  • RGB flexible color LED lights
  • Back of 12V RGB Flexible LED Strip 16’ Roll Uncoated (Non waterproof)
  • 16' (5m) Roll of flexible LED Strip
  • RGB LED diagram
  • RGB LED flexible strip connect method
  • RGB flexible LED strip on red
  • RGB flexible LED strip on cyan
  • RGB flexible LED strip on purple
  • RGB flexible LED strip on white
  • RGB flexible LED strip on green
  • RGB flexible LED strip on blue

* Required Fields

Regular Price: $70.00

Sale Price $50.00


RGB Flexible LED Strip
These color changing LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.
Each role of flexible LED strip is 16' long (5 meters or actually 16'-5"  with 6" wire on each end).  The LED type used are the 5060 type super bright 3 in 1 SMD LEDs.  There are 150 per 16' roll.  They run on 12V DC.  These strips do not have any waterproof coating, so they are not water resistant.  However, this is preferred in applications where you will be cutting the LED strip frequently (because you do not have to peel off the waterproof coating on each end before reconnecting/soldering).  You can cut these strips every 3.94" ~ they are very easy to work with!
Details / Options
~~These RGB strips can change any color with the use of a controller (please look through our RGB Remote Controllers and DMX Controllers).  For these RGB Strips, we can pre-solder the RGB Remote Controller onto the strip, which would then plug into our power supplies or your 12V source (this must be requested at checkout).
~~They can be dimmed 0-100% which is a feature on most of our RGB controllers.
~~For $1.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 12 watt (can control up to 5' of flexible LED strip) or 48 watt (can control up to 24' of flexible LED strip) are recommended~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
~~Comes with a white backing like our Warm White flexible LED strips.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!
To watch a video of 1x 16' roll of this flexible LED strip controlled by our RGB IR controller Click Here

Additional Information

Product Highlights Great for indoor locations or enclosed sign boxes. these are easy to cut and solder as there is no waterproof coating to peel off
Led Color RGB
Length Of Strip 16'-5" long rolls with 6" wire on the end
Cuttable Every 100mm (3.94")
# of LEDs / Meter 30
# of LEDs / Reel 150
Type of LED Super Bright 3 in 1 RGB 5060 SMD
Viewing Angle (Degrees) 120 deg
Mounting Options Double Sided Tape, Ceiling Mount, Wall Mount
Waterproof Rating none
Voltage 12v
Wattage 36
Power Usage Watts / Foot: Rated (Actual) Actual power usage (per foot): (Red = 50mA) (Green = 55mA) (Blue = 53mA)
Max Connected Strip Length From Each Power Connection at full brightness (white) we recommend you only connect 2 rolls from each power connection for accent lighting say about 25% you can connect 10x rolls end to end
Dimmable Range / Steps 0-100% via PWM
Strip Backing Color Gold
Strip Width 10.2mm/ 0.39"
Strip Thickness 2.12mm/ 0.0825"
