24v RGB Flexible LED Strip 16' Roll (5060 30/M 150/Roll) Un-Coated (Non waterproof)

Be the first to review this product

Availability: In stock

Only 4 left

Regular Price: $90.00

Sale Price $65.00

OR

Quick Overview

RGB Flexible Led Strip (5060 30/M 150/Roll) Un-Coated

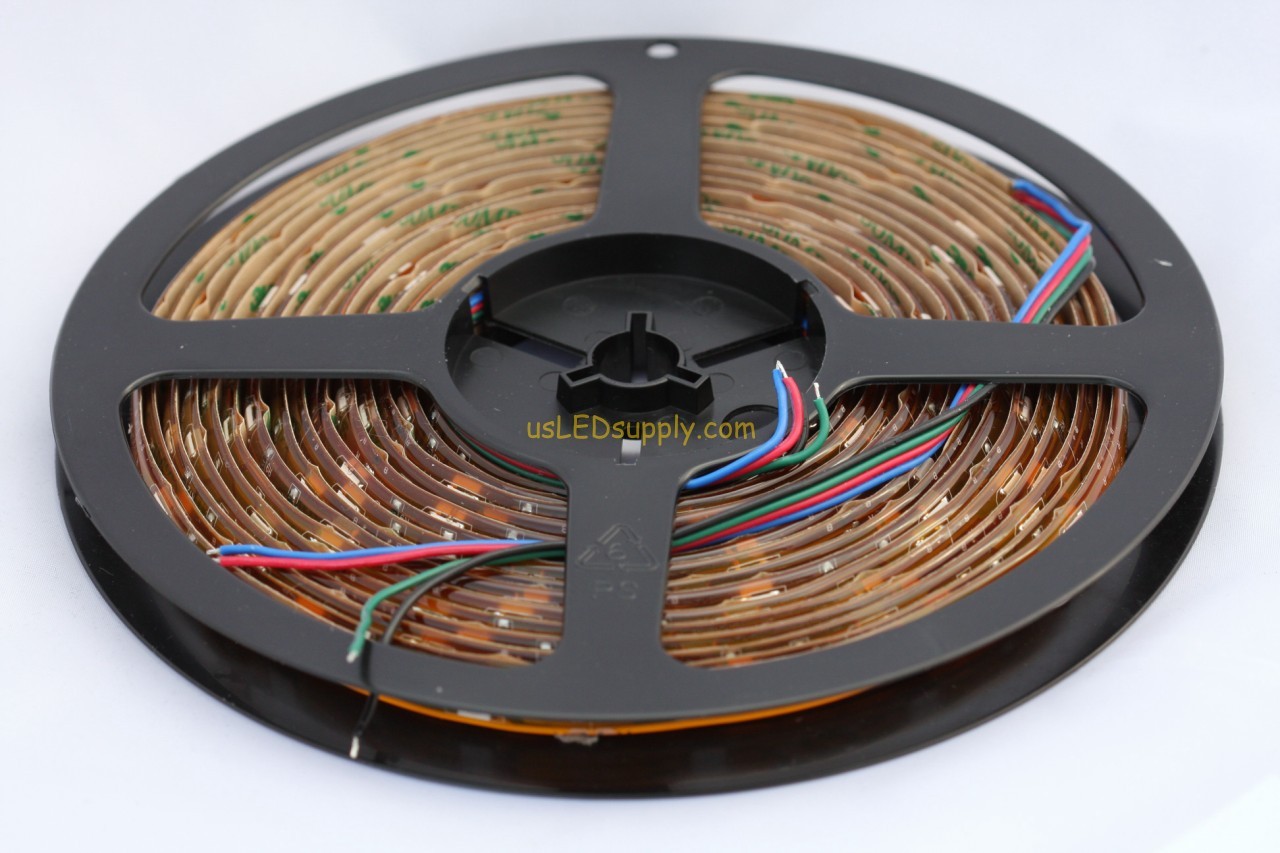

24V RGB Flexible LED Strip 16' Roll

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 24V RGB Flexible LED Strip 16' Roll
  • 24V RGB Flexible LED Strip
  • Self Stick Back of 24V RGB Flexible LED Strip 16' Roll
  • 24V RGB Flexible LED Strip 16' Roll
  • Thickness of 24V RGB Flexible LED Strip
  • Width of 24V RGB Flexible LED Strip
  • Color changing 24V RGB Flexible LED Strip 16' Roll
  • Purple of 24 V RGB Flexible LED Strip
  • Green of 24 V RGB Flexible LED Strip
  • Blue of 24 V RGB Flexible LED Strip
  • Red of 24 V RGB Flexible LED Strip

Details

RGB Flexible LED Strip
These color changing LED strips are very flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5"  with 6" wire on each end).  The LED type used are the 5060 type super bright 3 in 1 SMD LEDs.  There are 150 per 16' roll.  They run on 24V DC.  These strips do not have any waterproof coating, so they are not water resistant.  However, this is preferred in applications where you will be cutting the LED strip frequently (because you do not have to peel off the waterproof coating on each end before reconnecting/soldering).  You can cut these strips every 6.58" ~ they are very easy to work with!
Details / Options
~~These RGB strips can change any color with the use of a controller (please look through our RGB Remote Controllers and DMX Controllers).  For these RGB Strips,
~~The advantage of these 24V flexible LED strips are the possibility to connect more together (and thus have longer power runs without using larger power wires).  This makes them ideal for commercial lighting (restaurants, bars, night clubs, theater, store front, etc.).
~~They can be dimmed 0-100% which is a feature on most of our RGB controllers.
~~For $1.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 24v 48 watt Power Supply (can control up to 24' of flexible LED strip) ~ these numbers are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).  When using these 24V strips, you must also use an 12/24v amplifier if you want to use the standard 12v controllers to control them.
~~When considering power supply sizing, remember that you will need a 24V power supply that can output approximately 1.5A for each roll.  We have 2A power supplies for these that can power up to 1.5 rolls.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section.  If your questions are not answered there, please contact us we would be glad to help!



Additional Information

Suggested Uses

With the 24v strips you can connect more strips together between power connections and have longer power runs without using larger power supply wires

These Flexible Strips Are Great For
Great for indoor locations or enclosed sign boxes. these are easy to cut and solder as there is no waterproof coating to peel off

Led Color RGB
Length Of Strip 5 Meters/Reel 16'-4" long rolls with 6" wire on each end
Cuttable Every 167mm (6.58")
# of LEDs / Meter 30
# of LEDs / Reel 150
Type of LED Super Bright 3 in 1 RGB 5060 SMD
Viewing Angle (Degrees) 120 deg
Mounting Options "3M Peel and Stick" Backing on Strips, Ceiling Mount, Wall Mount
Waterproof Rating none
Voltage 24v
Wattage 36
Power Usage Watts / Foot: Rated (Actual) Rated 2.25 Watts/Ft (Actual 1.35 Watts/Ft) @ White 100%
Usage in Amps: Rated (Actual) Red, Blue, Green, White

Rated 1.5A / Roll  2.25 watts per Foot
(Actual Usage @ 24v DC / Roll)
RGB=1.5A / Roll 1.35 watts per Foot)
R=.5A
B=.5A
G=.5A
Click Here For Usage Chart

Power Rating Max Amps 1.5A .6A/Color
Power Rating Max Watts 36W 12W/Color
Recommended Power Supply Size 1-5 Feet = 12W .5A 24v DC Power Supply 5-21 Feet = 48W 2A 24v DC Power Supply 21-32 Feet = 72W 3A 24v DC Power Supply for longer runs you can stack power supplies or contact us for larger power supplies
Max Connected Strip Length From Each Power Connection At full brightness (white) we recommend you only connect 2 rolls end to end from each power connection.
For accent lighting at say about 30% you can connect many rolls end to end. contact us for details
Controllable By Any of our 24v RGB Controllers or 12v Controllers with a 24v Amplifier or Manually With Toggle Switches (one per color)
Dimmable Range / Steps 0-100% via PWM
Wire Color Code Chart (Black = + 24v) (Green = Green -) (Red = Red -) (Blue = Blue -)
Strip Backing Color White or Gold
Lumens Approx 750 Lumens / Roll or 46 / Ft
Weight / Item .5 lb
Strip Width .396" (10.8mm)
Strip Thickness .0995" (2.53mm)
Available Options (may not be in stock) High Brightness 60 LEDs/Meter 300/Reel Waterproof: IP-65 IP-66 IP-67 IP-68 Side or Top Emitting LED 12v or 24v
