Details

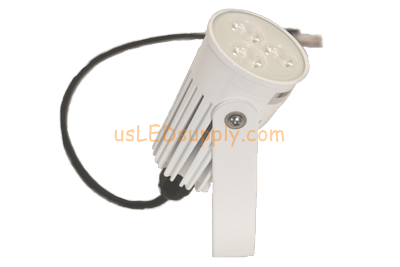

These are great RGB Puck Lights designed for architectural lighting.
They come with a bracket and can be easily directed.
This 9w version has 3x 3w RGB LED lights (so you have 3x red 3x green 3x blue) so you get better color mixing and more light output.
You will need to use a constant current driver for these as they are designed to be driven at no more than 350mA per color.
They can be connected to the driver using standard cat-5 wire with lengths of up to 100ft. They can also be connected together in series using our RJ-45 Splitters if you have more than one.
Electrical
Power Requirement: 4 - 48VDC depending on number of units connected in series (approx 3-4v per unit)
Maximum Input Current: 350mA per LED
Source and Output
LEDs: 1x 3in1 RGB Led 1W Red/ 1W Green/ 1W Blue
Beam Angle: 40° (20° available)
Luminous Flux (Lm): 265
Efficacy (Lm/W): 21.03
Life Time ®: Expected 20,000 hours life at full power 50,000 on color change modes
Driver
Compatible Driver: 350mA Constant Current Drivers or Amp
You can connect 1x unit on a 12v driver/power supply, 2x on a 24v driver/power supply, or 3x on a 36v driver/power supply
Signal Cable Connector: RJ-45
Exit Cable Length: 30cm (IP 20), 2m (IP 65)
Environment
Temperature Range: -10°C ~ 40°C
Housing
Weight: 1 kg
Dimension: (H) 3" (4"w cord) x (Diameter) (1.80" hole saw) (1.95" flange)
Color: Silver
Lens: Optical Grade PMMA
Material: First grade aluminum
IP Rating: IP 20, IP 65
Listing
Certifications: CE / RoHS / WEEE
Additional Information
| Led Color | RGB |
|---|---|
| Type of LED | 3x 3W 3in1 RGB LED |
| Viewing Angle (Degrees) | 40 deg |
| Mounting Options | Ceiling Mount |
| Waterproof Rating | IP-20 |
| Voltage | 350mA |
| Wattage | 9w (3w/Color) |
| Power Input: Connection Type, Voltage, Amperage | RJ-45 Plug |
| Max Connected Strip Length From Each Power Connection | You can connect 1x unit on a 12v driver/power supply, 2x on a 24v driver/power supply, or 3x on a 36v driver/power supply |
| Dimmable Range / Steps | 0-100% via PWM |
| Lumens | 265 |
| Product Size (L)x(W)x(H) | (H) 3" (4"w cord) x (Diameter) (1.80" hole saw) (1.95" flange) |
| Comes With | Mounting Bracket (see Picture) |
| Suggested Accessories | RJ-45 Splitter (for connecting multiple units) RJ-45 Coupling for connecting unit to cat-5 cable 350mA Driver (Amp, DMX, or Standalone) |
| Available Options (may not be in stock) | 6" Eyeball Mount for adjustable ceiling mounting |
| Available Options | 20, 40deg lens. replacement bulbs |
