Details

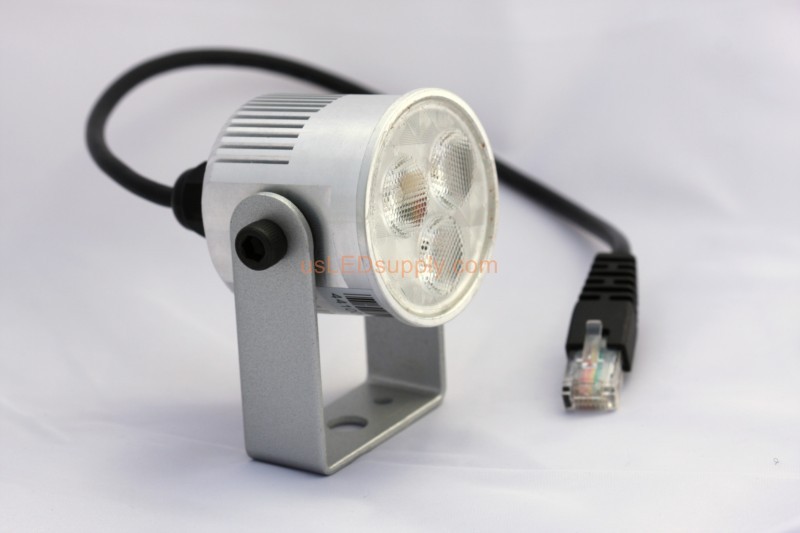

These are great RGB Puck Lights designed for architectural lighting
They come with a bracket and can be easily directed
the 3w version (this one) has 3x 1w led lights (1x red 1x green 1x blue) You will need to use a constant current driver for these as they are designed to be driven at no more then 350mA per color
They can be connected to the driver using standard cat-5 wire with lengths of to 100ft they can also be connected together in series using our RJ-45 Splitters if you have more then 1
Electrical
Power Requirement: 4 - 48VDC depending on number of units connected in series (approx 3-4v per unit)
Maximum Input Current: 350mA per LED
Source and Output
LEDs: 1 x 1W Red/ 1 x 1W Green/ 1 x 1W Blue
Beam Angle: 25°
Luminous Flux (Lm): 122
Efficacy (Lm/W): 24
Life Time ®: Expected 20,000 hours life at full power 50,000 on color change modes
Driver
Compatible Driver: 350mA Constant Current Drivers or Amp
You can connect 3x unit on a 12v driver/power supply or 6x on a 24v driver/power supply
Signal Cable Connector: RJ-45
Exit Cable Length: 30cm (IP 20), 2m (IP 65)
Environment
Temperature Range: -10°C ~ 40°C
Housing
Weight: 1 kg
Dimension (mm): H45 x 50 Diameter
Color: Silver
Lens: Optical Grade PMMA
Material: First grade aluminum
IP Rating: IP 20, IP 65
Accessories: Hanging bracket
Listing
Certifications: CE / RoHS / WEEE
Additional Information
| Led Color | RGB |
|---|---|
| Type of LED | 1 x 1W Red / 1 x 1W Green / 1 x 1W Blue |
| Viewing Angle (Degrees) | 25 deg |
| Mounting Options | Wall Mount |
| Waterproof Rating | IP-20 |
| Voltage | 350mA |
| Wattage | 3w (1w/Color) |
| Power Input: Connection Type, Voltage, Amperage | RJ-45 Plug |
| Max Connected Strip Length From Each Power Connection | You can connect 3x unit on a 12v driver/power supply or 6x on a 24v driver/power supply |
| Dimmable Range / Steps | 0-100% via PWM |
| Lumens | 122 |
| Product Size (L)x(W)x(H) | (H) 45mm x (Diameter) 50mm |
| Not A Stocked Item (Special Order Time) | IP-65 |
| Suggested Accessories | RJ-45 Splitter (for connecting multiple units) RJ-45 Cupping for connecting unit to cat-5 cable |
| Available Options | IP-65 |
