9w RGB Puck 350mA IP-20 25deg

Be the first to review this product

Availability: In stock

Regular Price: $75.00

Sale Price $70.00

OR

Quick Overview

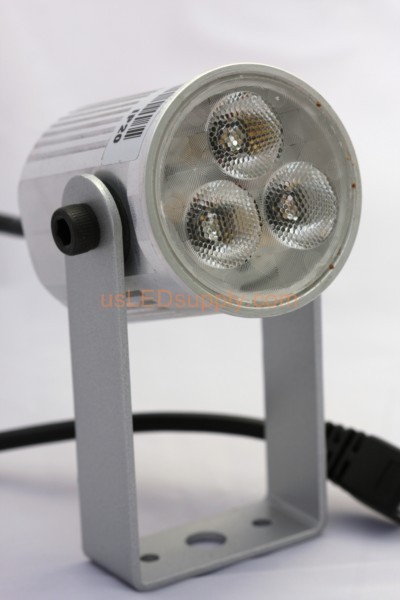

9w RGB Puck Light 350mA IP-20 25deg

9w RGB Puck

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck
  • LED RJ-45 Splitter
  • LED RJ-45 Coupler
  • LED RJ-45 Splitter
  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck
  • 9w RGB Puck diagram

Details

These are great RGB Puck Lights designed for architectural lighting
They come with a bracket and can be easily directed
This 9w version has 3x 3w Led lights (so you have 1x red 1x green 1x blue)

You will need to use a constant current driver for these as they are designed to be driven at no more then 350mA per color

They can be connected to the driver using standard cat-5 wire with lengths of to 100ft they can also be connected together in series using our RJ-45 Splitters if you have more then 1



 Electrical

Power Requirement: 12 - 48VDC depending on number of units connected in series (approx 3-4v per led)

Maximum Input Current: 350mA per LED



Source and Output

LEDs: 3 x 3W Led

Beam Angle: 25°

Luminous Flux (Lm): 122

Efficacy (Lm/W): 24

Life Time ®: Expected 20,000 hours life at full power 50,000 on color change





Driver

Compatible Driver: 350mA Constant Current Drivers or Amps

You can connect 1x unit on a 12v driver/power supply or 2x on a 24v driver/power supply

Signal Cable Connector: RJ-45

Exit Cable Length: 30cm (IP 20), 2m (IP 65)



Environment

Temperature Range: -10°C ~ 40°C



Housing

Weight: 1 kg

Dimension (mm): H69 x 50 Diameter

Color: Silver

Lens: Optical Grade PMMA

Material: First grade aluminum

IP Rating: IP 20,

Accessories: Hanging bracket



 Listing

 Certifications: CE / RoHS / WEEE



Additional Information

Led Color RGB
Type of LED 3x 3w RGB (3 x 1W Red / 3 x 1W Green / 3 x 1W Blue)
Viewing Angle (Degrees) 25 deg
Mounting Options Wall Mount
Waterproof Rating IP-20
Voltage 350mA
Wattage 9w (3w/Color)
Power Input: Connection Type, Voltage, Amperage RJ-45 Plug
Max Connected Strip Length From Each Power Connection You can connect 1x unit on a 12v driver/power supply or 2x on a 24v driver/power supply
Dimmable Range / Steps 0-100% via PWM
Lumens R-99 G-165 B-36
Product Size (L)x(W)x(H) (H) 69mm x (Diameter) 50mm
Not A Stocked Item (Special Order Time) IP-65
Suggested Accessories

RJ-45 Splitter (for connecting multiple units)

RJ-45 Cupping for connecting unit to cat-5 cable

Available Options IP-65
