Details

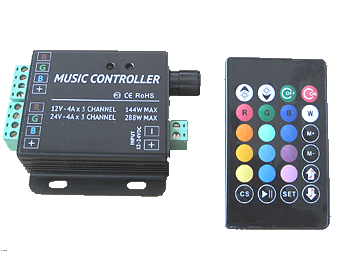

RGB IR Music Controller with Mic 4A 24x Key
This is a great RGB flexible LED strip controller - it has has lots of options. Best of all, it has a built in Mic to make your lights flash to the music! :-)
~~You can connect and control up to 4A/Ch or 48W/Ch of output (Can control 64' or 4x rolls of our RGB flex strip).
~~ Input sensitivity adjustable with sensitivity knob
~~Input: Screw terminals for easy connection to a 12V power supply or car/boat battery wires.
~~Output: Dual sets of Screw terminals for easy connection to our RGB flex strips or control cable.`
~~Can be used with amplifiers to control more than 4x rolls (1 roll is 16 feet) of RGB flex strip.
~~L=100mm W=85mm H=25mm (4" x 3.33" x 0.98")
~~Uses included CR2025 battery in remote control.
This audio controller is great for college dorm rooms, kids' rooms, automotive under car lights, boat lighting effects, and home theaters.
Please visit our our How To Install section if you would like instructions on connecting to or from this controller or any of our other products.
Additional Information
| Suggested Uses | These are great for: |
|---|---|
| Product Highlights | ~~built in Mic and make your lights flash to the music! :-) |
| Led Color | RGB |
| Mounting Options | Wall Mount, Car/Truck/Motorcycle/Boat |
| Voltage | 12/24v |
| Wattage | 48/Ch |
| Output Power | 4A/Ch - 48W/Ch |
| Number Of Chanels | 3 |
| Rated Amps / Ch | 4A/Ch |
| Recommended Power Supply Size | 12-144 Watts / 1-12 Amps, depending on connected strip length. |
| Connections Input/Output |
Input: |
| Can Power/Control (xx) Feet of strip | Can control 64' of our 12v RGB Flex Strip can be used with amplifiers to control more then 4x reel (5M) of RGB Flex Strip |
| Controllable By | 24x Button IR Remote Control (On/Off) (Mode + /-) (Brightness/Speed + /- ) (Music Modes +/- ) (13x Static Colors) |
| Number Of Control Modes | 8 Mode (5x Color Changing) (3x Music) |
| Mode/Button Decription | see product pictures for mode chart |
| Steps of Speed Adjustment | 3x steps |
| Dimmable Range / Steps | 3x steps |
| Product Size (L)x(W)x(H) | L=100mm W=85mm H=25mm (4" x 3.33" x 0.98") |
| Comes With | Remote Control |
| Available Options (may not be in stock) | Model with RF Remote |
| Warranty | 1 Year |
