RGB Remote Control 2A (28x Button IR Remote/Controller)

Be the first to review this product

Availability: In stock

Regular Price: $28.00

Sale Price $25.00


Quick Overview

RGB Remote Control

RGB Remote Control 2A (28x Button Remote)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB Remote Control 2A (28x Button Remote) with IR receiver
  • RGB Remote Control 2A (28x Button Remote)

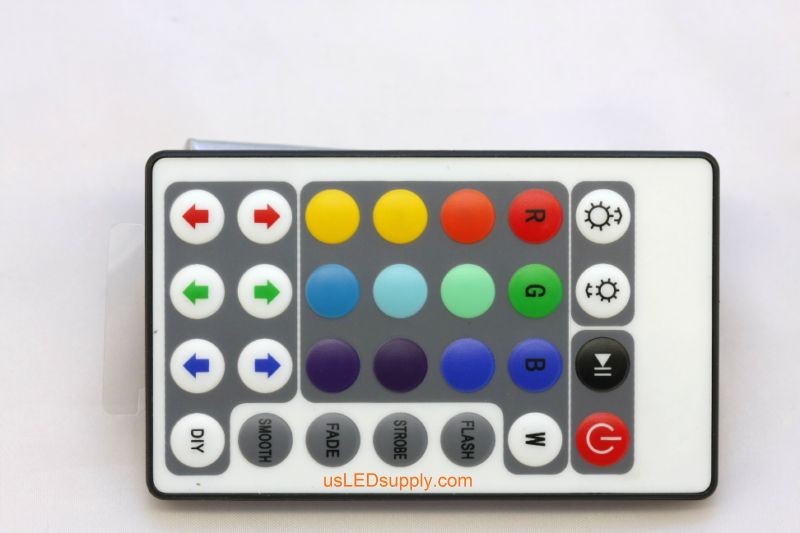

RGB Remote Control 2A (28x Button Remote)
This RGB remote controller has the 28x button remote, allowing you to control each color individually (great for custom colors or low level dimming).  It is a great remote for inexpensive simple color control of our RGB flexible LED strip.
~~Can control up to 32' of our 12V RGB flex strip (2A/Ch 24W)
~~Power input: 12V DC via a barrel plug 5.5mm x 2.1mm (our power supplies/transformers plug right into this controller)~~8x steps of dimming control or full 0-100% dimming in the custom mode.
~~Can be used with amplifiers to control more than 2x rolls (5m each) of RGB flex strip.
To watch a basic video of our 2A 24 key controller Click Here (This is the same except this also has individual control of each color).
Please visit our How To Install section for instructions on connecting to or from this controller or any of our other products.

Additional Information

Suggested Uses This controller has the 28x button remote, allowing you to control each color individually. This is great for custom colors or low level dimming.
Led Color RGB
Mounting Options Other
Voltage 12v
Wattage 24
Power Usage in Off or Standby State less than 1w
Power Rating Max Watts 72 Watts
Number Of Chanels 3
Rated Amps / Ch 2A/Ch
Recommended Power Supply Size 1-6A (12-72 Watt)
Connections Input/Output

Input: Barrel Plug 12V DC (our power supplies plug into this port) or use our Female Barrel Plug for connecting to 12v DC Car, Truck, Motorcycle, Boat or Batteries

IR Receiver: The receiver is on a cord so it can be placed in view even if the receiver is behind doors

Output: Has 4-Pin jack for connecting to our RGB Flex Strips (you can solder our 4-Pin connector to the strip and plug in this remote)


Note: Ensure short circuit can not occur between connecting wire before you turn on the power

Power Input: Connection Type, Voltage, Amperage Barrel Plug 12V DC
Controllable By IR Infrared Remote (like a TV remote it does not go threw walls)
Number Of Control Modes 28 Buttons
Dimmable Range / Steps 8x steps of dimming control in normal mode and full 0-100% in DIY mode
Comes With Remote Control and Receiver
Available Options can get in 6/12/24v
