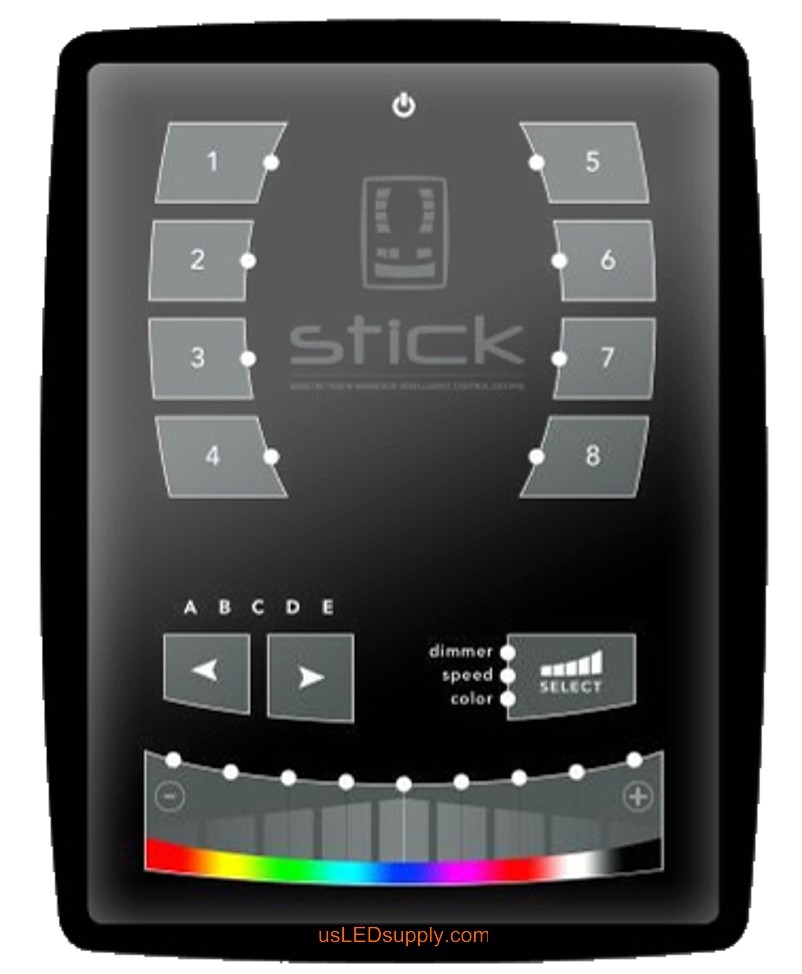

Sunlite Touch-sensitive Intelligent RGB LED DMX Controller
This is the World’s Most Sophisticated Touch Screen DMX Controller, specially developed for architectural lighting needs. We are an authorized dealer for all of the Sunlite products.
The Sunlite Touch-sensitive Intelligent Control keypad (less than 1/2" thick) is a stand alone wall mounted DMX controller with state of the art design and technology, including:
~~Touch-sensitive panel
~~User customizable front panel with the STICK DESIGN CENTER
~~1024 DMX channels
~~Unlimited miniSD memory
~~Ability to control up to 5 independent pages of 8 scenes/programs each (40 total)
~~USB, ETHERNET, RS232, PORTS, SDCARD, DMX Capture, Infrared Remote Controllable (assign IR remote keys to trigger scenes and pause)
~~Clock/Calendar, for time of day programing
~~Microphone and audio in. (on older models)
~~Works with EASY STAND ALONE, ESA PRO. (Free Download and Included CD)
~~Compatible with Windows XP/VISTA/SEVEN 32-bit or 64-bit version.
~~Will be delivered with a 9V power supply, USB Cord, an installation CDROM and an SDcard.
Advanced Options
~~Assign IR remote keys to scenes triggering and pause the S.T.I.C.K.- set the time and date directly with the sensitive keypad
~~Fade between scenes and change the fade time with the sensitive keypad
~~Trigger scenes with RS232 or 8x contact closures
~~Lock or unlock certain functions of the S.T.I.C.K. according to each installation (e.g. remove the dimmer, the pause function, etc.)
~~1 relay out connection for other devices (curtains, blinds, garage door etc...)
Customizable Design
The New STICK DESIGN CENTER! A new tool allowing you to design the S.T.I.C.K background picture is now available. With just a few clicks, you could change the shape of all buttons: scenes, pages, power, select, and fade, as well as customizing colors, background picture and logos... Then you can print and install the image yourself!
Flat wall mounted DMX controller, All-In-One technology
~~Ideal for LED, RGB and DMX lighting
~~State of the art design and technology
~~MINI-USB connection for software programming
~~Use without computer, in stand alone mode
~~Touch sensitive control panel
~~512 DMX OUT channels
~~Unlimited memory via SDCARD
~~Integrated clock/calendar for triggers
~~RS232 serial and I/O ports
~~Universal infrared receiver
~~Internet Design Center for customization
Optional features
~~1024 DMX OUT channels (built in)
~~Optional IR remote control (IR Remote comes with Ethernet module)
~~ETHERNET connection (for connecting multiple units and/or Web, iPhone, iPad Control) (Click Here For iPhone/Android Software)
~~Built-in microphone for sound activation (built in) (on older models)
Typical lead times are about a week If this item is not in stock
Additional Information
Led Color | Multiple |
---|---|
Mounting Options | Wall Mount |
Voltage | 120/240v |
Wattage | .3 |
Manual | http://www.nicolaudie.com/downloads/files/stick-de3_datasheet.pdf |
Not A Stocked Item (Special Order Time) | Typical lead times are about a week If this item is not in stock |
Suggested Accessories | Ethernet Module for iPod/Android Control and IR Remote |
Available Options (may not be in stock) | We are a authorized dealer for all of the Sunlite Products
List Prices (contact us for our prices and/or special discounts) |
Available Options | Contact Us For Special Order / Custom Options / IR Remote / POE adapters |
