Details

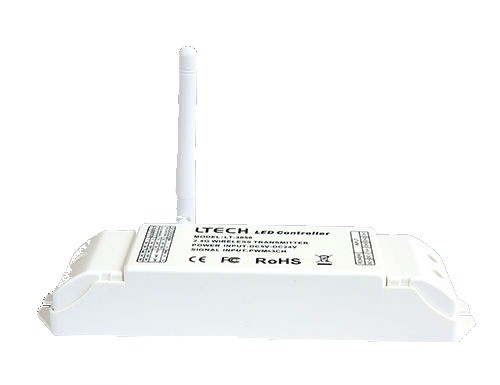

This Wireless RGB Transmitter transfers RGB (3ch PWM) data without wires up to 1000ft away to one or more receivers. (Supports point to point or point to multi-point), (just set the transmitter and one or more receivers to the same channel).
The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings, across roads, river banks and bridges or just across a room where it is too hard to run a wire. Wirelessly connect devices you want to be in sync but cant get wires between. Data is sent in real-time and is reliable.
The product uses the 2.4GHZ RF global open ISM frequency.
pick between 64 channels so you can run up to 64 separate groups in the same area without interference.
Use the relay Settings if need further increase the communication distance.
Transmit 100Hz~20KHz PWM signal to Receivers
- ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free.
- ● Connect to the output of any of our RGB or single color controllers or dimmers.
- ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel).
- ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference.
- ● 4 User settable transmission power levels (2,8,14 or 20dBm), up to 1000ft (350 meters) line of sight at maximum transmitted power (20dBm),
- ● Self-test inspection modes to test the wireless link quality or for troubleshooting.
- ● Use in repeater mode to further increase the communication distance. you can use multiple repeaters to extend the range.
| Input voltage | DC5V-DC24V |
| Input signal | PWM x3CH 100Hz~20KHz |
| Working frequency channel | 2.4GHz ISM 64 channels |
| Maximum transmitted power | 20dBm |
| Communication distance | up to 350m (line of sight) |
| Working temperature | -20℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package Size | L178×W48×H33mm |
| Weight (G.W) | 110g |
Note: You will need at least one receiver to use this.
Additional Information
| Suggested Uses | The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings or devices you want to be in sync and cant get wires between. Data is sent in real-time and is reliable. it is also a great way to isolate devices or areas so power surges won't travel over wires and damage all your devices. |
|---|---|
| Product Highlights | ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free. ● Connect to the output of any of our RGB or Single Color Controllers or Dimmers. ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel). ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference. ● 4 User settable transmission power levels (2,8,14 or 20dBm), up to 350 meters line of sight at maximum transmitted power (20dBm), ● Self-test inspection mode to test the wireless link quality or for troubleshooting. ● Use in repeater mode to further increase the communication distance. you can use multiple repeaters to extend the range. |
| Led Color | N/A |
| Mounting Options | Ceiling Mount, Wall Mount |
| Voltage | 5v-24v |
| Wattage | +/- 1 Watt |
| Output Power | up to 20dBm |
| Number Of Chanels | 64 Chanels |
| Power Input: Connection Type, Voltage, Amperage | Screw Terminal (DC+) (DC-) |
| Output Connection Type | Screw Terminal PWM x3CH 100Hz~20KHz |
| RF Frequency | 2.401 - 2.464 GHz Frequency Range With Dip Switch Channel Selection |
| Product Size (L)x(W)x(H) | L 175 × W 44 × H 30 mm |
| Comes With | Screw on antenna |
