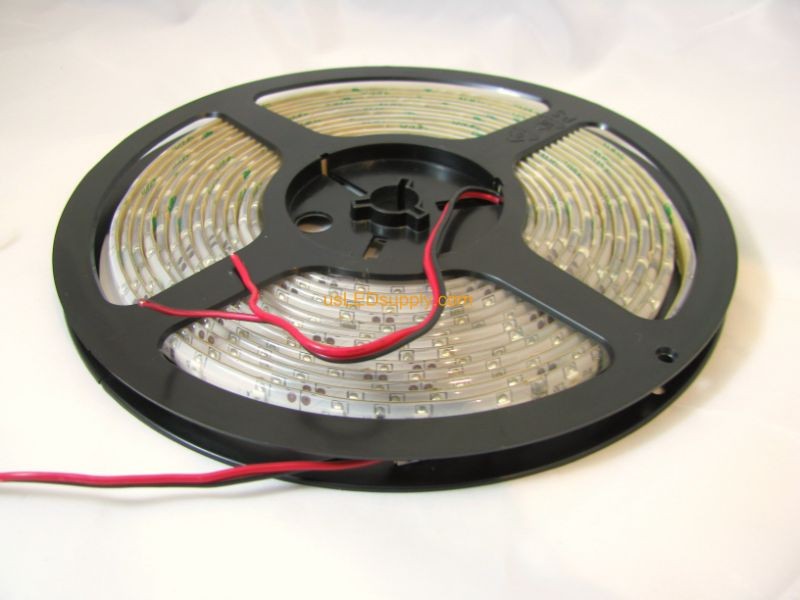

Blue Flexible LED Strip
These LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-4" with 6" wire on each end). The LED type used are the 5050 type super bright 3 in 1 SMD LEDs. There are 300 per 16' roll. They run on 12V DC.
Details / Options
~~They can be dimmed 0-100% with one of our PWM Dimmers.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 3' of this High Output flexible LED strip) or the 48 watt Power Supply(can control up to 12' of this High Output flexible LED strip) the 72 watt (can control up to 18' of this High Output flexible LED strip)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
|Product Highlights||High Output|
|Length Of Strip||5 Meters/Reel 16'-4" long rolls with 6" of wire on each end|
|Cuttable Every||50mm (1.97")|
|# of LEDs / Meter||60|
|# of LEDs / Reel||300 5050 SMD Leds / Reel|
|Type of LED||5050 SMD|
|Viewing Angle (Degrees)||120 deg|
|Mounting Options||Double Sided Tape, Ceiling Mount, Wall Mount|
|Waterproof Rating||Water Resistant|
|Wattage||4 Per Foot|
|Power Usage in Amps: Rated (Actual)||Rated 6A/Roll|
|Max Connected Strip Length From Each Power Connection||at full brightness we recommend you only connect 1 roll from each power feed wire and for accent lighting say about 20% you can connect 5x rolls end to end|
|Dimmable Range / Steps||0-100% via PWM|
|Strip Backing Color||White Backing|
|Strip Width||.48" (12.07mm)|
|Strip Thickness||.14" (3.6mm)|
|Comes With||6" wire on both ends|
|Available Options||We can get this in
(12v or 24v)
(150 or 300 led/m)
(Waterproof ip-65 ip-66 ip-67 ip-68)
(side or top emitting led)
