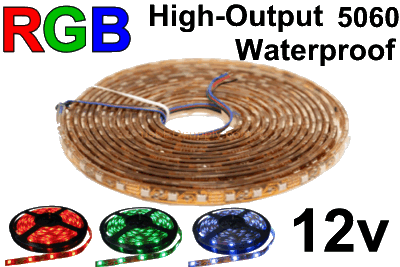

RGB Flexible LED Strip Waterproof
These color changing LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light. They are cuttable every 2".
Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with 6" wire on each end). The LED type used are the 5060 type super bright 3 in 1 SMD LEDs. There are 300 per 16' roll. They run on 12V DC. The waterproof rating is IP-68, which means that these flexible LED strips can be completely submerged in water.
Details / Options
~~These RGB strips can change any color with the use of a controller (please look through our RGB Remote Controllers and DMX Controllers). For these RGB Strips, we can pre-solder the RGB 4-Pin Connector onto the strip (if you are using an IR controller), which would then plug into our power supplies or your 12V source.
~~They can be dimmed 0-100% which is a feature on most of our RGB controllers.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
~~The 12 watt Power Supply (can control up to 3' of this High Output flexible LED strip) or the 48 watt Power Supply(can control up to 12' of this High Output flexible LED strip) the 72 watt (can control up to 18' of this High Output flexible LED strip)~ these are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it).
To watch a video of 1x 16' roll of the 30/m (these will be twice as bright) flexible LED strip controlled by our 24-key RGB IR controller Click Here
|Product Highlights||High Output|
|Length Of Strip||5 Meters/Reel 16'-4" long rolls with 6" of wire on each end|
|Cuttable Every||50mm (1.98")|
|# of LEDs / Meter||60|
|# of LEDs / Reel||300x 5060 SMD Leds / Reel (led Spacing center to center 0.67" / 17mm)|
|Type of LED||5060 SMD|
|Viewing Angle (Degrees)||120 deg|
|Mounting Options||Double Sided Tape, Ceiling Mount, Wall Mount|
|Waterproof Rating||Waterproof IP-68|
|Wattage||4 Per Foot|
|Power Usage Watts / Foot: Rated (Actual)||4-5 Watts/Foot|
|Connections Input/Output||this will not work with our Solder-less Splice Connectors|
|Max Connected Strip Length From Each Power Connection||at full brightness (white) we recommend you only connect 1 roll from each power connection for accent lighting say about 30% you can connect 5x rolls end to end|
|Dimmable Range / Steps||0-100% via PWM|
|Strip Backing Color||Copper Color Backing|
|Strip Width||.58" (14.60mm)|
|Strip Thickness||.20" (5.0mm)|
|Comes With||6" wire on both ends|
|Available Options||We can get this in
(12v or 24v)
(150 or 300 led/m)
(Waterproof ip-65 ip-66 ip-67 ip-68)
