Details

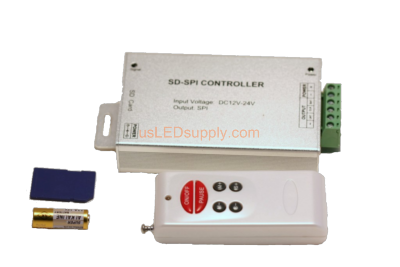

SD card Controller is used for controlling Standard RGB flexible strips, RGB modules or 12v Puck Lights
Using the wireless remote control, you can change the active program, adjust program speed, pause the program, looping and switch unit on and off.
User can also make their own program flies with the included pattern editing software. (You will need a SD Card Reader)
The advantage to this controller is you are not limited to the built in colors and preset fades/effects as this controller allows you to build your own with any pattern of colors you can think of so if you like Pink and Purple you can make a fade or flash with just Pink and Purple or you can throw Yellow in the mix and in any order so it gives you full control of your programs
(this is a technical product and there are a lot of options and features so if you are not a techie person making your own shows may not be for you, but it comes with several pre-programmed shows and if you need help designing something we may be able help you make what you are looking for and email it to you)
Static power consumption :<1W
Frame frequency: max 25 frames per second
Communication Format: 12v RGB 4A/Ch
Control points: one RGB output rated at 4A/Ch so this controller can control up to 4 reels of RGB LED Strip)
Dimmable Steps: 256
Maximum number of programs:64
Additional Information
Suggested Uses | For controlling our RGB Strips and.or RGB Modules |
---|---|
Product Highlights | There is software on the SD Card for making your own shows The advantage to this controller is you are not limited to the built in colors and preset fades/effects as this controller allows you to build your own with any pattern of colors you can think of so if you like Pink and Purple you can make a fade or flash with just Pink and Purple or you can throw Yellow in the mix and in any order so it gives you full control of your programs |
Led Color | RGB |
Mounting Options | Wall Mount, Other |
Voltage | 12v |
Wattage | n/a |
Power Usage in Off or Standby State | <1w |
Output Power | 0 ~ 4A |
Number Of Chanels | 3 (1x R - 1x G - 1x B) |
Rated Amps / Ch | 4A/Ch |
Connections Input/Output | Dual Input: barrel plug 12V DC (our power supplies plug into this port) or terminal strip plug for connecting to 12v DC car, truck, motorcycle, and boat batteries. RF Receiver: built in Output: Has terminal strip for connecting to our RGB Flex Strips |
Controllable By | RF Remote |
Number Of Control Modes | up to 64 Programs |
Product Size (L)x(W)x(H) | L128ΧW64ΧH24 mm |
Strip Width | L160ΧW95ΧH50 mm |
Comes With | SD Card, RF Remote, battery |
