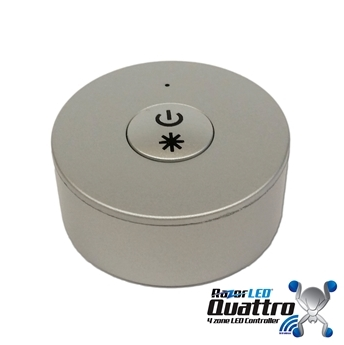

1 Zone Mini Wireless RF LED Dimmer Razor Quattro

Be the first to review this product

Availability: In stock

Regular Price: $30.00

Sale Price $24.00

OR

Quick Overview

Razor Quattro 1 Zone Mini Wireless LED Dimmer SKU# RAZ-1ZM

1 Zone Mini Wireless RF LED Dimmer Razor Quattro

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 1 Zone Mini Wireless RF LED Dimmer Razor Quattro
  • 1 Zone Mini Wireless RF LED Dimmer Razor Quattro
  • 1 Zone Mini Wireless RF LED Dimmer Razor Quattro

Details

1 Zone Mini Wireless RF LED Dimmer Razor Quattro

This is one of the most feature rich LED controllers available today, and it is still easy to use and well made.  It is small and east to mount so you can control your lights from anywhere without running wires, it can work through walls, and can control one or multiple zones of LED lights with one remote.

Some of its features are:

~~Can turn On/Off one or multiple zones of RGB or Single Color Led Strips
~~When you Press and Hold you can adjust the brightness (Single Color Quattro Receivers)
~~Fade on/off (controller feature) so when you press the button the lights will fade on/off for a nice effect
~~Remembers last brightness setting so when you press the button it will come back on to the last level set (same with power outage)
~~You can have several remotes controlling the same zone and/or one remote controlling several zones
~~Has Built in magnet for mounting on metal or use the included screws to mount
~~East to get and replace CR2025 Long Life Battery (included) can last up to 10 years
~~Works With Chroma RGB Receivers and/or Quattro Single Color Receivers one and 4 Zone  (Not Included)

For instructions on connecting to or from this controller or any of our other products please visit our How To Install section.

Additional Information

Suggested Uses

Great for

Bedroom Accent Lighting (can turn on/off from several locations) just mount one of these on each side of the bed

Kitchen Under Cabinet Lighting, easy to mount these anywhere and no need to run wires

Theater Rooms, can control the light level form seats or entrance




Product Highlights

1 Zone Mini Wireless LED Dimmer

Now you can control separate areas as though they were connected! Have you ever wanted to control lights in two areas without the need to pull or run wires! This Mini 1 Zone Dimmer does exactly that! It lets you individually control different zones independently.

If you wish to control more than one zone, you will just need to add additional receivers that will enable you to control independently different zones.

Also the Mini Remote control dimming system uses a strong RF signal that is able to travel through walls, ceilings or glass, and can be used up to 50 feet away.

What you get:

One Wireless Mini Round Dimmer for 1 zone.
This wireless control can work in any of the zones you set up. It has a special “Learning Capability” that is in the unit that will enable you to pair it to any of the RAZ-WR96 & RAZ-WR240 Receivers.

You can add as many optional receivers as you wish to create different control zones. Each zone can have endless number of receivers to each zone, which will let you do large or small installations.


Functions Included:
- Memory function: Even if the unit looses power, it will remember all dimming values, so when power comes back, all light will be at the same level where they were left.
- Soft On and Off: Every time you turn On or Off the lights they will gradually turn On/Off softly.

Technical details:
RAZ-1ZM Remote Control
- Lightweight Silver Finish
- Batteries Included (CR2025)+3V
- Individual control of different Zones
- ON/Off Button for 1 zone
- Dim UP/Down for 1 Zone.

Easy Installation:

After you have wired all the receivers according to project requirements, you need to do the following:

1. If you use multiple receivers, you have 2 choices: Have all receivers in the same zone, like zone 1 for example, or have each receiver in a different zone, like Zone 1, 2 3, 4.

2. In order for each receiver to know what Zone it belongs to, you will need to "pair" it to the zone you wish to use. In order to do this, you need to power up the unit, and once that is done, you need to quickly and firmly press and release the learning button in the receiver:

Immediately after that you will need to quickly press and release the ON or OFF button on the remote control from the zone you wish to use. Once you do that, the Lights will Blink once. Now your Remote and receiver are paired!

3. Do the same for the other receivers if you use them.

NOTE:

To reset the receiver press and hold the “Learning” button until the lights blink 2 times.

You can now pair it to a different zone.



Led Color N/A
Mounting Options Double Sided Tape, Silicone Adhesive or Zip Ties, Wall Mount, Under Cabinet
Voltage 12/24v
Wattage n/a
Power Usage in Off or Standby State None
Controllable By RF Mini Remote (can go through walls)
Dimmable Range / Steps Smooth On/Off/Dimming
Product Size (L)x(W)x(H) Remote (L) 1.5 x (W) 1.5 x(H) .69 in
Suggested Accessories Chroma or Quattro Style Receivers
