Chroma RGB LED Receiver SKU# RAZ-RGB180

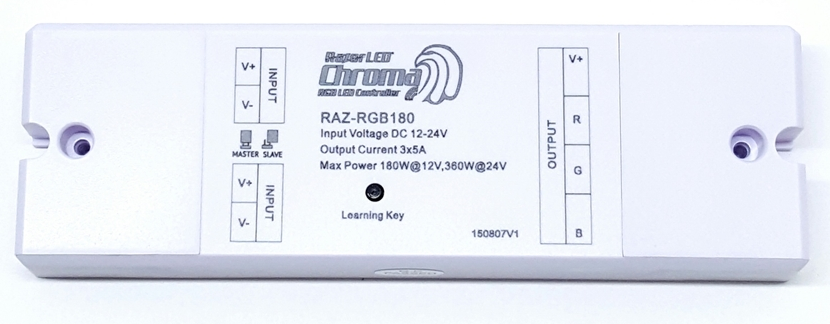

RGB Wireless RF LED Receiver Razor Chroma

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB Wireless RF LED Receiver Razor Chroma
  • RGB Wireless RF LED Receiver Razor Chroma
  • RGB Wireless RF LED Receiver Razor Chroma (remote not invcluded)
  • RGB Wireless RF LED Receiver Razor Chroma


RGB Wireless RF LED Receiver Razor Chroma

This is one of the most feature rich LED controllers available today, and it is still easy to use and well made.  It is small and easy to connect, you can control your lights from anywhere without running wires, it can work through walls, and can control RGB LED lights and strips.

Some of its features are:

~~Can control up to 5A/ch of RGB Led Strips (5x reels of standard output)
~~Works with both 12v and 24v strips (just use the correct voltage power supply for the strips)
~~Fade on/off (controller feature) so when you turn it on/off the lights will fade on/off for a nice effect
~~Easy to learn multiple remotes to allow control from several areas
~~Remembers last effect and brightness setting so when you turn it on (same with power outage)
~~You can have several remotes controlling the same zone and/or one remote controlling several zones
~~No limit to the number of zones on one remote or the number of zones in the same area
~~Can Sync multiple receivers together by setting one to master and the rest to slave
~~Works with Chroma RGB Remotes also can be turned on/off with Quattro Remotes (Not Included)

For instructions on connecting to or from this controller or any of our other products please visit our How To Install section.

Additional Information

Suggested Uses

Great for

Bedroom Accent Lighting

Kitchen Accent Lighting, easy to mount these anywhere and no need to run wires to remotes.

Theater Rooms


Led Color N/A
Mounting Options Wall Mount
Voltage 12/24v
Wattage n/a
Power Rating Max Watts 12v 180w / 24v 360w
Number Of Chanels 3
Rated Amps / Ch 5A/Ch
Recommended Power Supply Size

Sized for the amount of strip connected to the controller (2 watts per foot for standard output and 4 watts per foot for high output)
12v - 180w Max
24v - 360w Max

Connections Input/Output

2x  Power Input (V+) and (V-)

1x Output (V+), (R),(G), (B)

Output Connection Type Screw Terminal
Can Power/Control (xx) Feet of strip Up to 82' of 12v Standard Output RGB Flex Strip or 41ft 12v High Output Flex Strip
Controllable By RF Remote (can go through walls)
Dimmable Range / Steps Smooth On/Off/Dimming
Product Size (L)x(W)x(H) Remote (L) 5.75 x (W) 1.875 x(H) .687
Suggested Accessories

Chroma Style Remotes

Quattro Style Remotes (Only for on/off control no color change)

Male Power Connector for connecting to our power supplies
