Wireless Dimming Receiver 1 Zone Razor Quattro

Be the first to review this product

Availability: In stock

Regular Price: $104.00

Sale Price $50.00

OR

Quick Overview

Wireless Dimming Receiver 1 Zone Razor Quattro SKU# RAZ-WR96

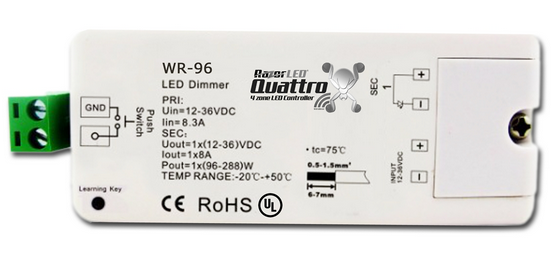

RAZ-WR96 Wireless Dimming Receiver 1 Zone

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RAZ-WR96 Wireless Dimming Receiver 1 Zone
  • RAZ-WR96 Wireless Dimming Receiver 1 Zone

Details

Wireless Dimming Receiver 1 Zone Razor Quattro

This is one of the most feature rich LED controllers available today, and it is still easy to use and well made.  It is small and easy to connect, you can control your lights from anywhere without running wires, it can work through walls, and can control Single Color LED Modules and Strips.

Some of its features are:

~~Can control up to 8A (96 watts @ 12v) (3x reels of standard output led strips)
~~Works with both 12v and 24v strips (12-36v) (just use the correct voltage power supply for the strips)
~~Smooth Dimming 256 Steps with Fade on/off (controller feature) so when you turn it on/off the lights will fade on/off for a nice effect
~~Easy to learn multiple remotes to allow control from several areas
~~Remembers last effect and brightness setting so when you turn it on (same with power outage)
~~You can have several remotes controlling the same zone and/or one remote controlling several zones
~~No limit to the number of zones on one remote or the number of zones in the same area
~~Optional Push Button Input for connecting your own momentary switches (supports on/off and dimming)
~~Works with Quattro Remotes (Not Included)

For instructions on connecting to or from this controller or any of our other products please visit our How To Install section.

Additional Information

Suggested Uses

Great for

Bedroom Accent Lighting

Bathroom Effect Lighting

Kitchen Under Cabinet Lighting, easy to mount these anywhere and no need to run wires to remotes.

Theater Rooms

Closets and Basements




Product Highlights
Now you can control your lights with more than one controller as separate areas and as though they were connected! Have you ever wanted to control lights in two or more areas without the need to pull or run wires! The RAZ-WR96 dimming receiver does exactly that! It lets you individually control different zones independently or in a group.

Also the wall control dimming system uses a strong RF signal that is able to travel through trees, buildings or glass, and can be used up to 100 feet away.
Includes:
One Dimmable Receiver good for 1 zone
This wireless receiver (RAZ-WR96) can work in any of the zones. It has a special “Learning Button” that is in the unit that will enable you to pair it to any of the zones.

You can add as many optional receivers as you wish to create different control zones. Each zone can have an endless number of receivers, which will let you do large or small installations.

Functions Included:
- Memory function: Even if the unit looses power, it will remember all dimming values, so when power comes back, all lights will be at the same level where they were left.
- Soft On and Off: Every time you turn On or Off the lights they will gradually turn On/Off softly.

Technical details:

- Lightweight and Small
- Control of 1 Zone
- Learning Button
- Dimming of LED's 12-36VDC
- 12-36VDC operation
- 256 Levels of extra smooth dimming
- Soft start On/Off for gradual dimming
- Up to 8 Amps of Power
- 96 watts at 12V DC
- Intelligent Channel Assignment

Easy Installation:
After you have wired all the receivers according to project requirements, you need to do the following:
1. If you use multiple receivers, you have 2 choices: Have all receivers in the same zone, like zone 1 for example, or have each receiver in a different zone, like Zone 1, 2 3, or 4.

2. In order for each receiver to know what Zone it belongs to, you will need to "pair" it to the zone you wish to use. In order to do this, you need to power up the unit, and once that is done, you need to quickly and firmly press and release the learning button in the receiver:

Immediately after that you will need to quickly press and release the ON or OFF button on the remote control from the zone you wish to use. Once you do that, the Lights will Blink once. Now your Remote and receiver are paired!

3. Do the same for the other receivers if you use them.

NOTE:

To reset the receiver press and hold the “Learning” button until the lights blink 2 times.

You can now pair it to a different zone.



Led Color N/A
Mounting Options Wall Mount
Voltage 12/24v
Wattage n/a
Power Rating Max Watts 12v 96w / 24v 192w / 36v 288w
Number Of Chanels 1
Rated Amps / Ch 8A/Ch
Recommended Power Supply Size

Sized for the amount of strip connected to the controller (2 watts per foot for standard output and 4 watts per foot for high output)
12v - 96w Max
24v - 192w Max
36v - 288w Max



Connections Input/Output

1x Power Input (V+) and (V-)
1x Output (V+) and (V-)
1x Switch (Momentary Push Button) optional


Power Input: Connection Type, Voltage, Amperage Screw Terminal 12-36v
Output Connection Type Screw Terminal
Can Power/Control (xx) Feet of strip Up to 48' of 12v Standard Output Flex Strip or 24ft 12v High Output Flex Strip
Controllable By RF Remote (can go through walls)
Steps of Speed Adjustment 256 Steps
Dimmable Range / Steps Smooth On/Off/Dimming
Product Size (L)x(W)x(H) Receiver (L) 4 x (W) 1.5 x(H) .82
Comes With Male and Female Power Connector for connecting to our power supplies
