Details

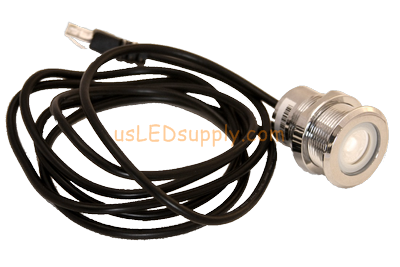

These are great RGB Puck Lights designed for architectural lighting.
These are made to be mounted through a hole (like in the ceiling).
The 3w version (this one) has 1x 3in1 Tricolor RGB LED (1W red 1W green 1W blue).
You will need to use a constant current driver for these as they are designed to be driven at no more than 350mA per color.
They can be connected to the driver using standard cat-5 wire with lengths of up to 100ft. They can also be connected together in series using our RJ-45 Splitters if you have more than one.
Electrical
Power Requirement: 4 - 48VDC depending on the number of units connected in series (approx 3-4v per unit)
Maximum Input Current: 350mA per LED
Source and Output
LEDs: 1x 3in1 RGB Led 1W Red/ 1W Green/ 1W Blue
Beam Angle: 20° (40° available)
Luminous Flux (Lm): 88
Efficacy (Lm/W): 20.95
Life Time ®: Expected 20,000 hours life at full power 50,000 on color change modes
Driver
Compatible Driver: 350mA Constant Current Drivers or Amp
You can connect 3x units on a 12v driver/power supply or 6x on a 24v driver/power supply
Signal Cable Connector: RJ-45
Exit Cable Length: 30cm (IP 20), 2m (IP 65)
Environment
Temperature Range: -10°C ~ 40°C
Housing
Weight: 1 kg
Dimension: (H) 1.78" x (Diameter) (1.25" hole saw) (1.58" flange) (1" max ceiling thickness to use nut)
Color: Silver
Lens: Optical Grade PMMA
Material: First grade aluminum
IP Rating: IP 20, IP 65
Listing
Certifications: CE / RoHS / WEEE
Additional Information
| Led Color | RGB |
|---|---|
| Type of LED | 1x 3W 3in1 RGB LED |
| Viewing Angle (Degrees) | 20 deg |
| Mounting Options | Ceiling Mount |
| Waterproof Rating | Water Resistant IP-65 |
| Voltage | 350mA |
| Wattage | 3w (1w/Color) |
| Power Input: Connection Type, Voltage, Amperage | RJ-45 Plug |
| Max Connected Strip Length From Each Power Connection | You can connect 3x units on a 12v driver/power supply or 6x on a 24v driver/power supply |
| Dimmable Range / Steps | 0-100% via PWM |
| Lumens | 88 |
| Product Size (L)x(W)x(H) | (H) 1.78" x (Diameter) (1.25" hole saw) (1.58" flange) (1" max ceiling thickness to use nut) |
| Suggested Accessories | RJ-45 Splitter (for connecting multiple units) RJ-45 Coupling for connecting unit to cat-5 cable 350mA Driver (Amp, DMX, or Standalone) |
| Available Options (may not be in stock) | With Spring Chips for mounting |
| Available Options | 40deg lens, spring clip or nutt, 120deg frosted lens |
