Details

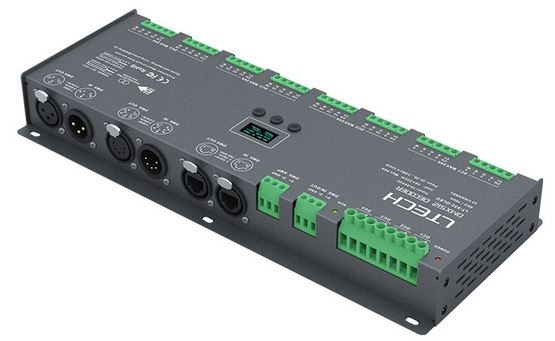

Decoder is designed to convert the universal standard DMX512/RDM signal into analog signal to control our RGB Flex Strips, it allows user to choose 1~32 output channel (up to 8 RGBW, 10x RGB, 16x CT or 32x Dim), with 8bit(256 levels) or 16bit(65536 levels) brightness control. This decoder connects to and can be controlled by DMX Light Boards, our DMX Touch Controllers or other DMX Controllers/DMX Computer Interfaces.
Built in Anti-Lighting Strike and ESD Protection
High Frequency PWM Output for Flicker Free Video Filming
Specifications:
1.) Input Power:DC12V~DC24V
2.) Output Current:3A per channel(total current: up to 96A)
3.) Output Power:12V 864W / 24V 1728W
4.) Brightness Control :8bit(256 levels) or 16bit(65536 levels)
5.) DMX Address:32 (8 RGBW, 10x RGB, 16x CT or 32x Dim)
6.) DMX512 Standard:DMX512/RDM with Photoelectric Isolation (with DMX amplifier function on DMX Output).
7.) Protections: (Short circuit / Over current / Over-heat) with fault indicator.
8.) Operating Temp. -30℃~65℃
9.) Product Dimension:L300×W122×H39(mm)
10.)Package Size: L309×W127×H41(mm)
11.) Weight:1050g
Ⅱ. Basic Functions
1.) 8bit(256 levels)/16bit(65536 levels) scales of smooth brightness adjusting.
2.) User addressable DMX interface-with easy to read OLED Screen.
3.) High power output, 3A per output channels.
4.)DMX pass through and in/out connector for daisy chain configurations.
Additional Information
Suggested Uses | This unit is great for multiple zones or for advanced lighting effects |
---|---|
Product Highlights | Can control up to 10x 48' runs of standard output RGB Flex Strip with individual control of each run/channel via DMX Built in Anti-Lighting Strike and ESD Protection High Frequency PWM Output for Flicker Free Video Filming Built In DMX Amplifier for connecting to other devices Standard, linear, LOG or custom 0.1-9.9 dimming curves. Supports RDM remote management protocol, these operations can be completed via the optional RDM master console, setting and viewing parameters, DMX address, equipment recognition, etc. |
Led Color | RGB |
Mounting Options | Wall Mount, Other |
Voltage | 12/24v |
Wattage | 3A/Ch |
Power Rating Max Watts | (12v 0~36W/Ch Max.1152W) (24v 0~72W/Ch Max.2304W) |
Number Of Chanels | 32 (8 RGB) |
Rated Amps / Ch | 3A ×32CH Max. 96A |
Recommended Power Supply Size | 1~96 Amp 12v DC. You may use up to 4x Power supplies with this unit (DC 1 feeds ports 1 & 2) (DC 2 feeds ports 3 & 4) (DC 3 feeds ports 5 & 6) (DC 4 feeds ports 7 & 8) or you can connect all to the same Power Supply |
Connections Input/Output |
DMX Connections
Output Connections (To Strips) Etc....
|
Power Input: Connection Type, Voltage, Amperage | Screw Terminal |
Output Connection Type | Screw Terminals |
Controllable By | DMX or built in test mode |
Number Of Control Modes | Full Control with DMX |
Mode/Button Decription | Self-testing function: press up and down keys simultaneously for 2-3 seconds under any page, decoder will enter self-testing function. |
Steps of Speed Adjustment | Full Control with DMX |
Dimmable Range / Steps | 0-100% via DMX in 8bit(256 steps) or 16bit(65536 steps) |
Weight / Item | 2.6lbs |
Product Size (L)x(W)x(H) | L300×W122×H39(mm) |
Available Options | constant current or constant voltage, 5-24v 3-4 channels |
