Details

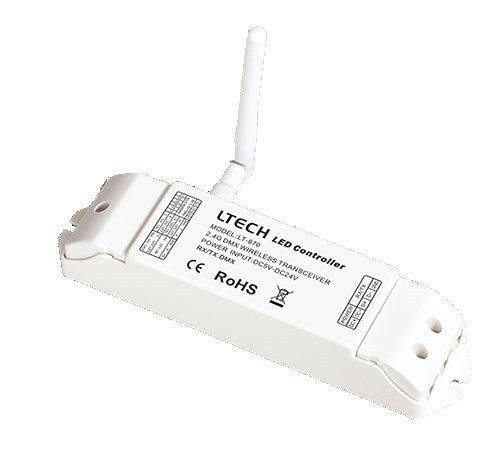

This Wireless DMX512 Transceiver transfers DMX512 or RS-485 data without wires up to 1000ft away to one or more receivers. (Supports point to point or point to multi-point), (just set the transmitter and one or more receivers to the same channel).
The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings or devices you want to be in sync and cant get wires between. Data is sent in real-time and is reliable. it is also a great way to isolate devices or areas so power surges won't travel over wires and damage all your devices.
The product uses the 2.4GHZ RF global open ISM frequency.
pick between 64 channels so you can run up to 64 separate groups in the same area without interference.
Use the relay Settings if need further increase the communication distance.
- ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free.
- ● Compatible with Standard International standard DMX512 protocol or RS-485 Buss.
- ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel).
- ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference.
- ● 4 User settable transmission power levels (2,8,14 or 20dBm), up to 1000ft (350 meters) line of sight at maximum transmitted power (20dBm),
- ● Self-test inspection mode to test the wireless link quality or for troubleshooting.
- ● Use in repeater mode to further increase the communication distance. you can use multiple repeaters to extend the range.
- ● Each unit can be set as a Transmitter or Receiver with the dip switches
Input voltage | DC5V-DC24V |
Input/output signal | DMX512 |
Working frequency channel | 2.4GHz ISM 64 channels |
Maximum transmitted power | 20dBm |
Receiver sensitivity | -96dBm |
Communication distance | up to 350m (line of sight) |
Working temperature | -20℃~55℃ |
Dimension | L175×W44×H30mm |
Package Size | L178×W48×H33mm |
Weight (G.W) | 110g |
Note: You will need at least 2 of these units (set one to Transmitter and the other(s) to Receiver(s)
Note: These use screw terminals for connecting to your DMX devices so you may need an adapter cable (DMX Cale cut in half) or make your own cable if you devices require a 3 or 5 pin XLR Connector (our 5A/Ch and 6A/Ch Decoders also have screw terminals so you can connect to them with out a adapter)
Additional Information
Suggested Uses | The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings or devices you want to be in sync and cant get wires between. Data is sent in real-time and is reliable. it is also a great way to isolate devices or areas so power surges won't travel over wires and damage all your devices. |
---|---|
Product Highlights | ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free. ● Compatible with Standard International standard DMX512 protocol or RS-485 Buss. ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel). ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference. ● 4 User settable transmission power levels (2,8,14 or 20dBm), up to 350 meters line of sight at maximum transmitted power (20dBm), ● Self-test inspection mode to test the wireless link quality or for troubleshooting. ● Use in repeater mode to further increase the communication distance. you can use multiple repeaters to extend the range. ● Each unit can be set as a Transmitter or Receiver with the dip switches |
Led Color | N/A |
Mounting Options | Ceiling Mount, Wall Mount |
Voltage | 5v-24v |
Wattage | +/- 1 Watt |
Output Power | up to 20dBm |
Number Of Chanels | 64 Chanels |
Power Input: Connection Type, Voltage, Amperage | Screw Terminal (DC+) (DC-) |
Output Connection Type | Screw Terminal DMX In/Out (D+) (D-) (GND) |
RF Frequency | 2.401 - 2.464 GHz Frequency Range With Dip Switch Channel Selection |
Product Size (L)x(W)x(H) | L 175 × W 44 × H 30 mm |
Comes With | Screw on antenna |
