Art Net to 2801/Universal Converter 6 Universe

Be the first to review this product

Availability: In stock

$250.00
OR

Quick Overview

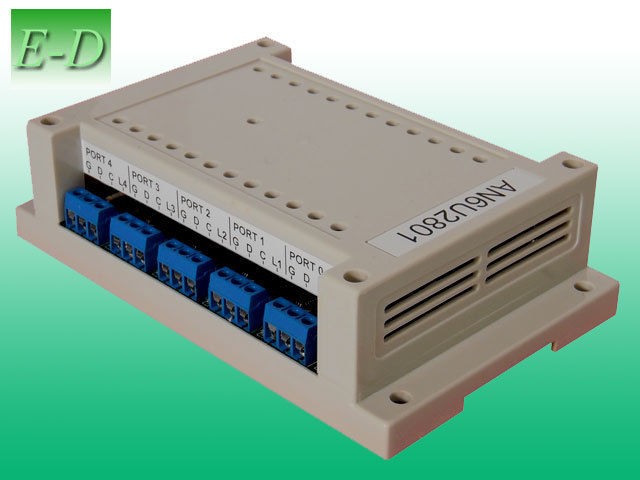

Art Net to 2801/Universal Converter 6 Universe (AN6USPI0)

Art Net to 2801 Converter 6 Universe

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Art Net to 2801 Converter 6 Universe
  • Art Net to 2801 Converter 6 Universe

Details

Art Net to 2801 Converter 6 Universe this unit offers the lowest cost per universe of all our controllers as long as your device supports Art-Net • Outputs straight to digital strips/modules (no decoder needed) • Network to: WS2812B, WS2812, WS2811, UCS1903, UCS1909, UCS1912, UCS2903(high speed mode), + WS2801. • 6 universe. 170 pixels per universe. Up to 50 fps on each port. • Art-Net unicast and broadcast transmission support. Up to 400(100BaseT) universes in unicast Art-Net mode. Up to 12 universes in broadcast Art-Net mode. • Works with all Art-Net and sACN compatible software, both free & commercial. (FreeStyler, Madrix, Jinx, LoR(E1.31) ..........) • sACN (E1.31) multicast support. Number of universes limited by the network. • Management web server for the controller settings. • 10/100 Ethernet port. • 7V-24V or 5V power supply. Note: check the voltage of your strip! • Size: 145 x 90 x 50 mm. Weight: 170 grams. Installation on DIN rail 35 mm. • Supports firmware upgrade.

Additional Information

Suggested Uses

Theaters
Night Clubs
Party Busses
Stages
Churches
DJ Booths
Home Automation
Bands

Led Color RGB
Mounting Options Wall Mount, Other
Voltage 12/24v
Wattage Less than 1w
Number Of Chanels 6 Universe (6x 512)
Connections Input/Output

Art-Net Connections

1x RJ-45 Ethernet

Output Connections (To Strips)
6x GND
6x CLK
6x DATA

Power Connections 7-24v
DC -    (Black Wire)
DC +    (Red Wire)
or
2.1mm Power Connector


Power Input: Connection Type, Voltage, Amperage (Screw Terminal or Barrel Plug) DC7V-DC24V (+)/(-)
Output Connection Type (Screw Terminals)
Controllable By Art-Net
Manual PDF document Download sd image and web server.
Steps of Speed Adjustment Full Control with Art-Net
Dimmable Range / Steps 0-100% via Art-Net
Weight / Item 0.50lb
Product Size (L)x(W)x(H) L 5.7" x W 3.54" x H 2" (L145×W4290×H3350mm) 145 x 90 x 50 m
Suggested Accessories 12w 12v Power Supply

Control Cable for connecting to Strips

Warranty 1 Year
